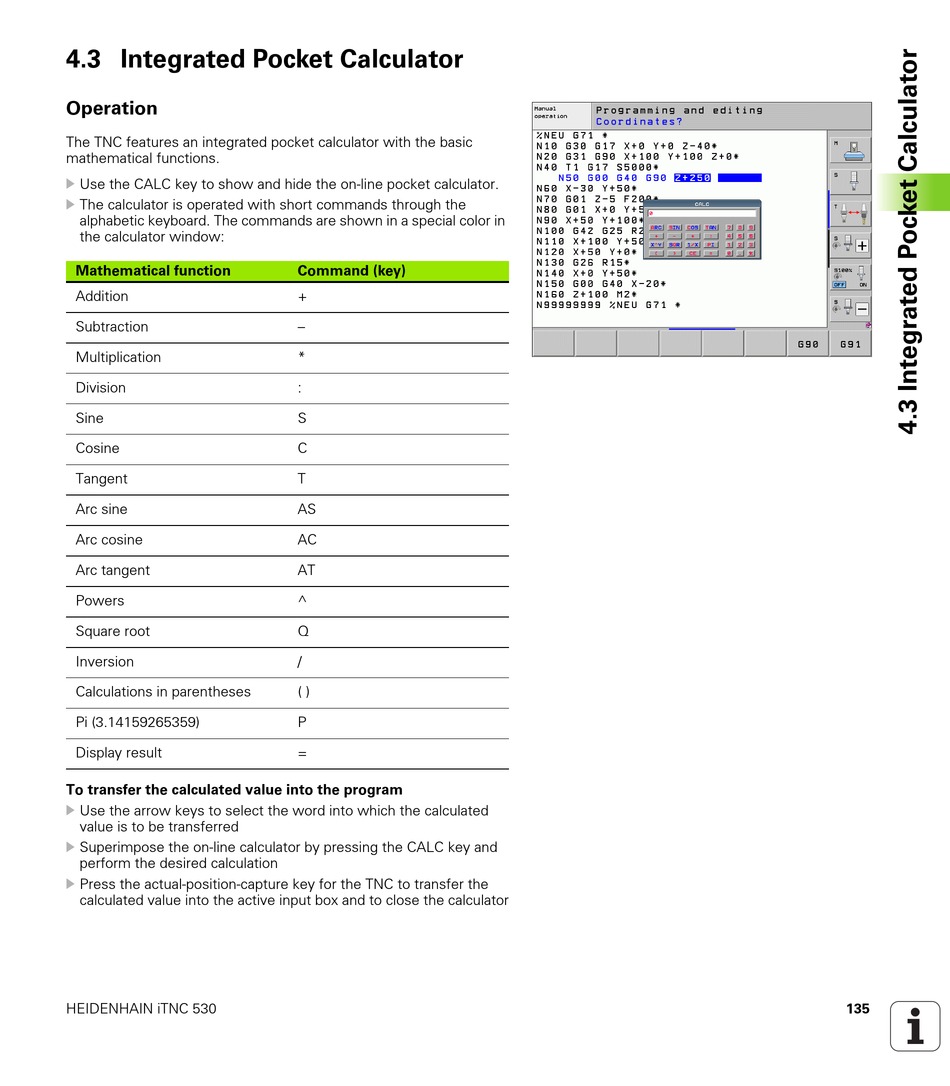

4.3 Integrated Pocket Calculator

Operation
The TNC features an integrated pocket calculator with the basic
mathematical functions.
U Use the CALC key to show and hide the on-line pocket calculator.
U The calculator is operated with short commands through the
alphabetic keyboard. The commands are shown in a special color in
the calculator window:
Mathematical function
Addition
Subtraction
Multiplication
Division
Sine
Cosine
Tangent
Arc sine
Arc cosine
Arc tangent
Powers
Square root
Inversion
Calculations in parentheses
Pi (3.14159265359)
Display result
To transfer the calculated value into the program
U Use the arrow keys to select the word into which the calculated
value is to be transferred
U Superimpose the on-line calculator by pressing the CALC key and
perform the desired calculation
U Press the actual-position-capture key for the TNC to transfer the
calculated value into the active input box and to close the calculator
HEIDENHAIN iTNC 530
Command (key)
+
–
*
:
S
C
T
AS
AC
AT
^
Q
/
( )
P
=
