9.4 Trigonometric Functions

Definitions

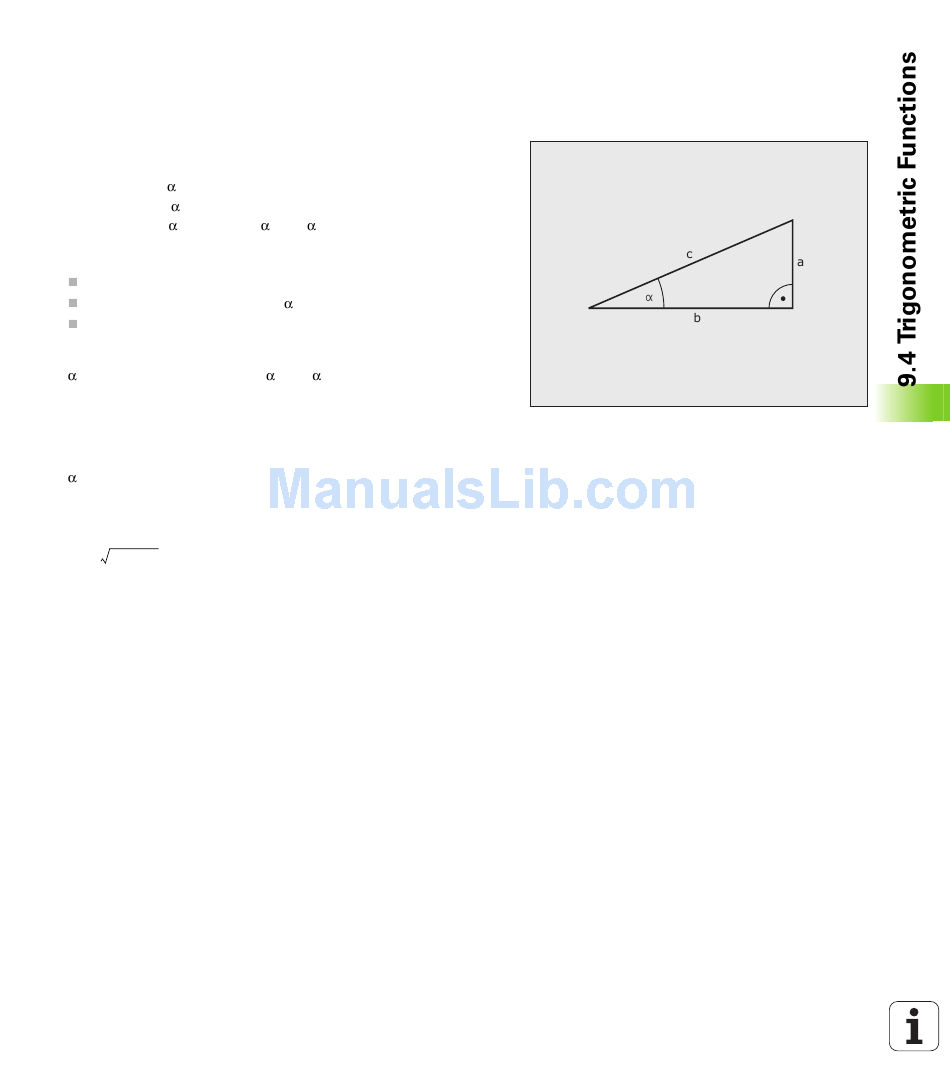

Sine, cosine and tangent are terms designating the ratios of sides of
right triangles. In this case:
Sine: sin = a / c
Cosine: cos = b / c
Tangent: tan = a / b = sin
where
c is the side opposite the right angle
a is the side opposite the angle
b is the third side.
The TNC can find the angle from the tangent:
= arc tan (a / b) = arc tan (sin
Example:
a = 25 mm
b = 50 mm
= arctan (a / b) = arctan 0.5 = 26.57°
Furthermore:
a² + b² = c² (where a² = a x a)
c = (a² + b²)
