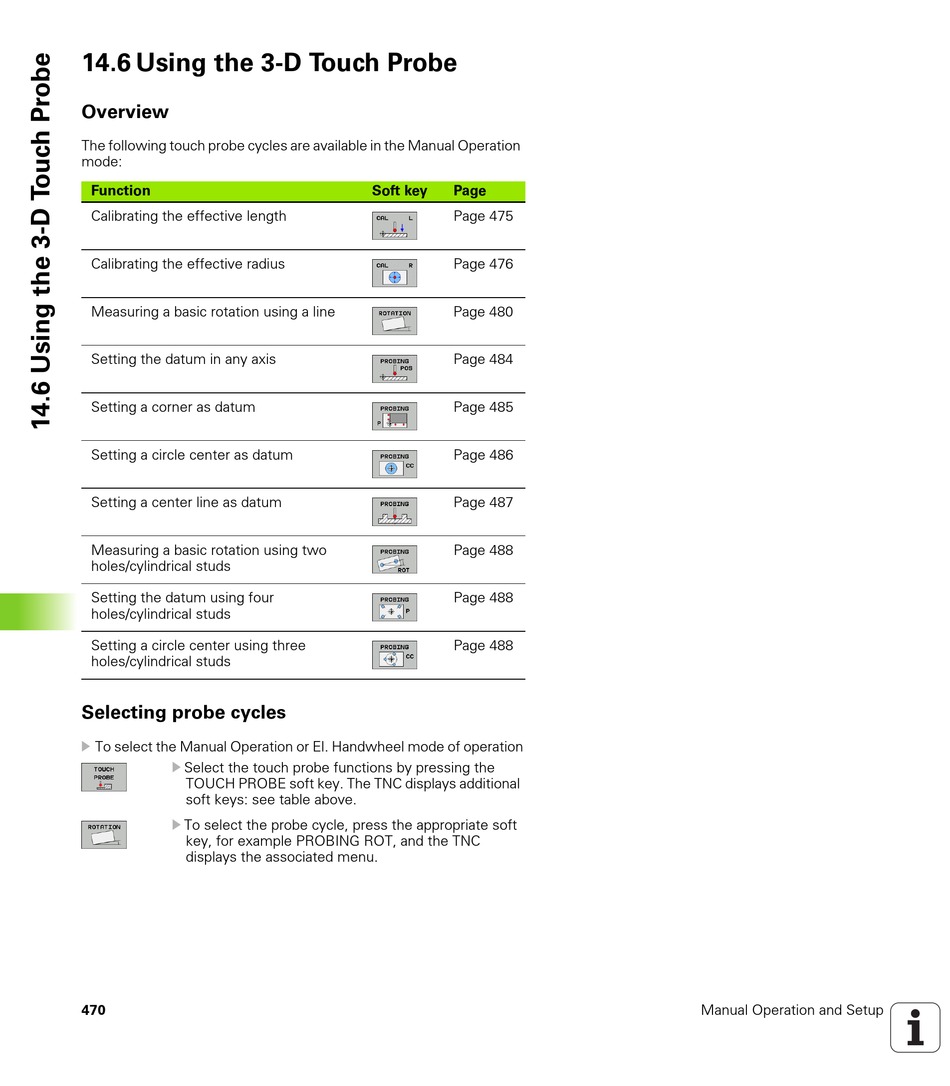

14.6 Using the 3-D Touch Probe

Overview
The following touch probe cycles are available in the Manual Operation
mode:
Function
Calibrating the effective length
Calibrating the effective radius
Measuring a basic rotation using a line
Setting the datum in any axis
Setting a corner as datum
Setting a circle center as datum
Setting a center line as datum
Measuring a basic rotation using two
holes/cylindrical studs
Setting the datum using four
holes/cylindrical studs
Setting a circle center using three
holes/cylindrical studs

Selecting probe cycles

U To select the Manual Operation or El. Handwheel mode of operation
U
Select the touch probe functions by pressing the
TOUCH PROBE soft key. The TNC displays additional
soft keys: see table above.
U To select the probe cycle, press the appropriate soft
key, for example PROBING ROT, and the TNC
displays the associated menu.
470
Soft key Page
Page 475
Page 476
Page 480
Page 484
Page 485
Page 486
Page 487
Page 488
Page 488
Page 488
Manual Operation and Setup
