Calling Q-parameter functions

When you are writing a part program, press the "Q" key (in the
numeric keypad for numerical input and axis selection, below the +/–
key). The TNC then displays the following soft keys:

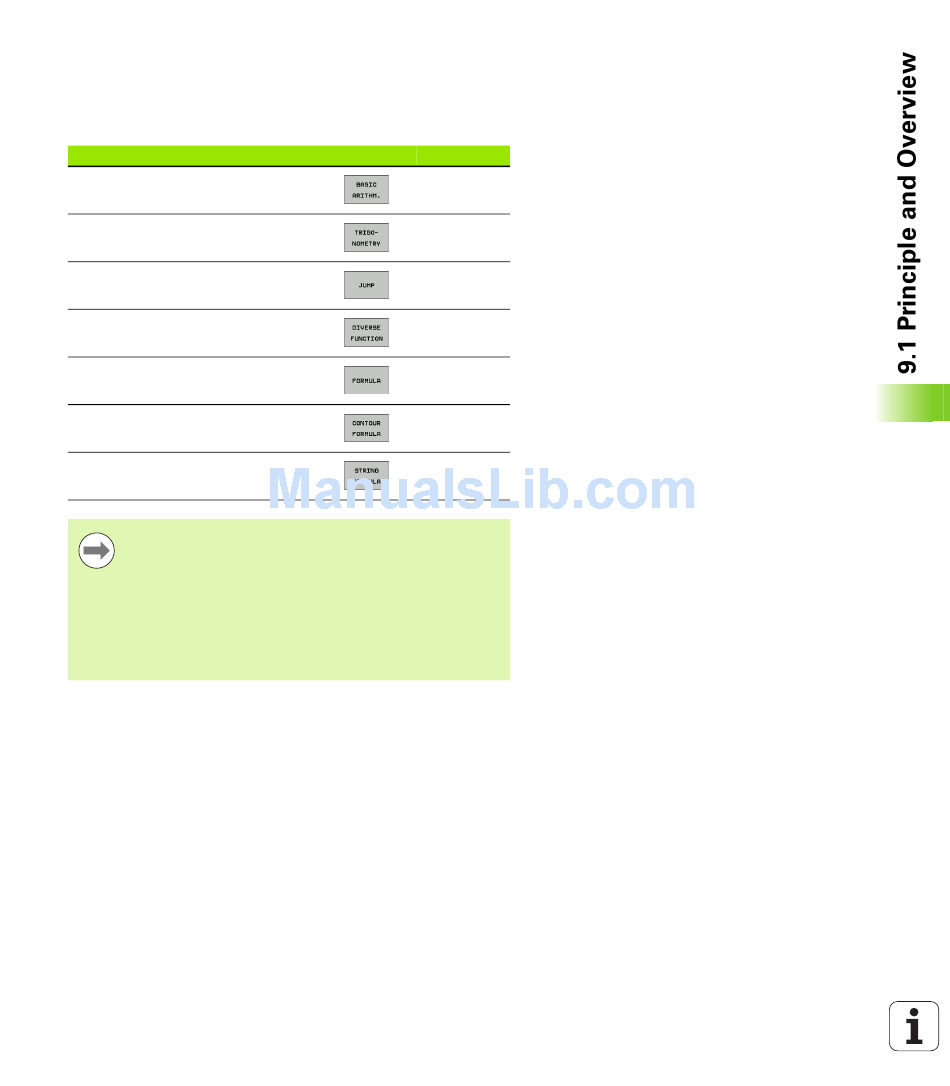

Function group
Basic arithmetic (assign, add, subtract,
multiply, divide, square root)
Trigonometric functions
If/then conditions, jumps
Other functions
Entering formulas directly
Function for machining complex
contours
Function for string processing
The TNC opens the dialog for formula entry directly when
you press the Q key on the ASCII keyboard.
In order to define or assign QL local parameters, first press
the Q key in any dialog, and then press the L on the ASCII
keyboard.
In order to define or assign QR nonvolatile parameters, first
press the Q key in any dialog, and then press the R on the
ASCII keyboard.
HEIDENHAIN iTNC 530
Soft key Page
Page 259
Page 261
Page 263
Page 266
Page 273
Cycles
Manual
Page 277
257
