8.3 Removing the cable from the cable duct / guiding it into the cable duct
For various reasons – for example, when connecting an HDMI-Video-Recorder – it may be necessary to
en
remove cables from the cable duct on the support arm or insert new ones�
See also the illustrated instructions at the end of this manual�
The cable of the power supply of the head is integrated into the support arm and cannot be re-
moved.
8.3.1 Removing cables
⇒ With the exception of the power supply (20, Fig� 12-a), remove all connectors
from the head�

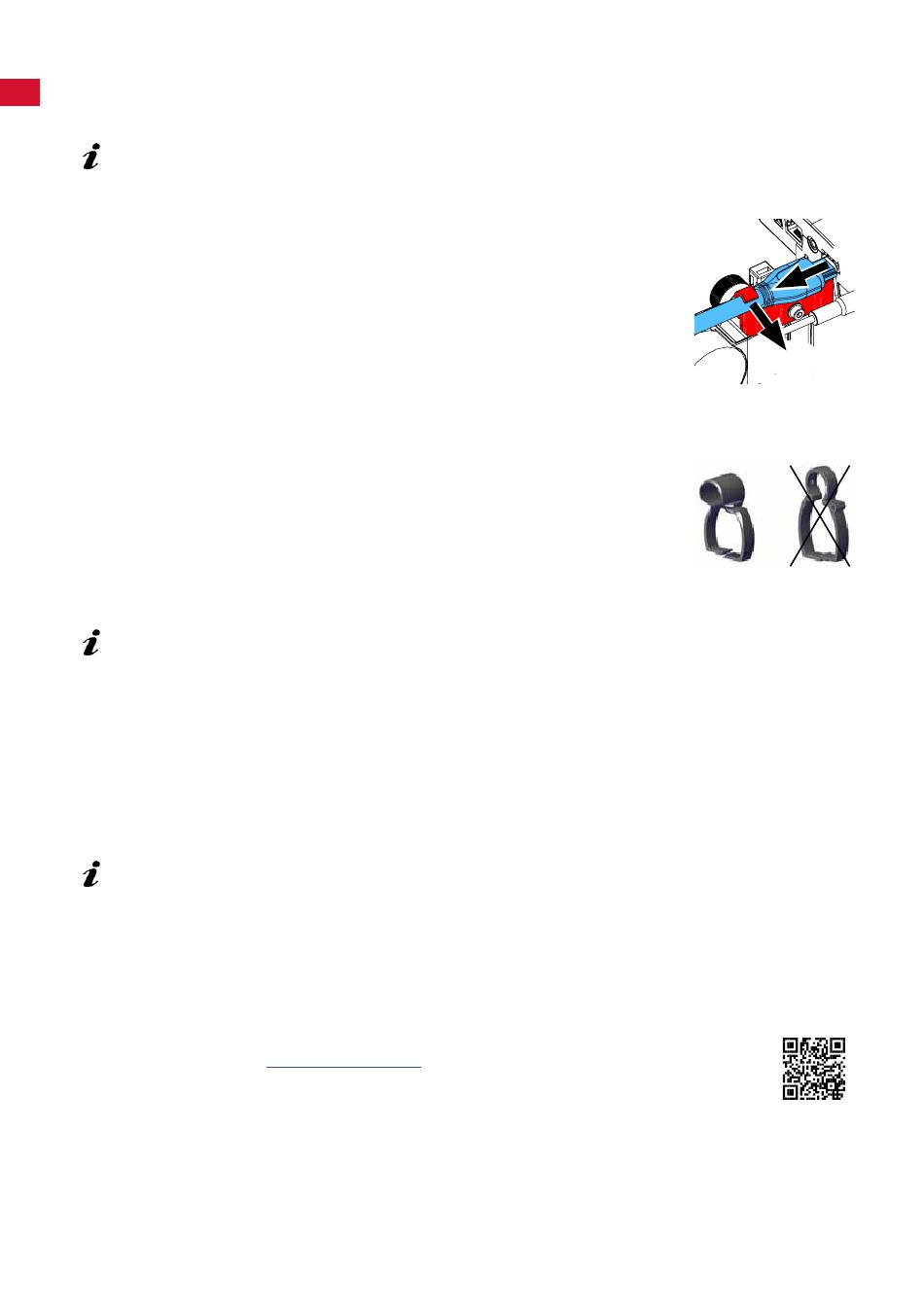

⇒ Pull the HDMI cable straight out of the back and then remove it from the retai-
ning clip�
⇒ Remove the cable duct from the support arm�
⇒ Remove the retaining clip�
⇒ Remove the cable tie at the foot end of the cable duct� Make sure that no ca-
bles are damaged�
⇒ Pull the desired cable out through the ribs of the cable duct�
8.3.2 Inserting cables into the cable duct
Two retaining clips are designed as an insertion aid for inserting new cables�
⇒ Place the cable duct on a flat surface.
⇒ Use the insertion aid to grab the cable already in the cable duct�
⇒ Push the insertion aid together completely�
⇒ With the tapered end first, push the insertion aid into the cable duct 3 or 4 ribs
deep�
⇒ Feed the plug of the cable to be fed through the insertion aid and press the
cable into the cable duct that has been opened by the insertion aid�
Make sure that the plug is inserted from the correct side.
⇒ Hold the cable duct securely behind the insertion aid�
⇒ Pull the insertion aid and plug of the cable to be fed through the cable duct to the other end� Make sure
that the plug does not slip out of the insertion aid�
⇒ Remove the insertion aid�
⇒ Pull the cables through so that they protrude about 20 cm past the cable duct on the side of the
EASY view+ 3D head so that the head is not hindered when it pivots�
⇒ On the opposite side of the cable duct, secure the cables to the cable duct with cable ties so they can-
not slip�
⇒ Clip all the retaining clips onto the cable duct and secure the cable duct to the support arm�
Retaining clips designed as an insertion aid fit on the upper part of the support arm, the other
clips go on the lower part.
⇒ Insert the cables into the head�
⇒ Plug the HDMI cable into the retaining clip and then plug it straight into the socket�
⇒ Reconnect the other side of the cables�
Multiple cables can also be fed through together�
8.4 Spare parts
You can find components subject to wear and the spare parts on the spare part
list in the internet at www�renfert�com/p918�
Enter the following item number: 2400 3000�
The components excluded from the warranty (such as consumables or parts sub-
ject to wear and tear) are marked on the spare part list�
Serial number and date of manufacturing are shown on the type plate of the unit�
