3.3 Standard Delivery
1 EASY view+ 3D head with power supply unit and power cord
1 Support arm with cable and base with universal clamp
1 HDMI-HDMI cable (no illustration)
1 Monitor with power supply unit and power cord (only for item no� 2400�3000 EASY view+ 3D)
1 3D glasses
1 USB memory stick
1 Mouse
1 Foot switch
1 Desk pad
1 HDMI Video Capture (no illustration)
1 Quick Start Guide
1 Color calibration card
3.4 Accessories
2200 0420 Stand with screw clamp
2200 0410 Stand with universal clamp
2400 2101 EASYbooth case large
2410 0000 Renfert CONNECT stick
9000 37809 3D glasses
9000 37901 EASY view 3D Headset HDMI-Recorder (only in use with 2400 0502 / 2400 0504)
4 Commissioning
4.1 Unpacking
⇒ Remove the device and accessories from the shipping box�
⇒ Check the delivery for completeness (compare with the scope of delivery)�
4.2 Mounting the monitor stand
Only for item no� 2400 3000�
⇒ Place a soft pad on a flat surface.
⇒ Place the monitor with the screen on it�
⇒ Remove the protective film from the stand.
⇒ Attach the supplied stand to the monitor support�
4.3 Setup
Select a workspace with sufficient lighting for the installation of the
EASY view+ 3D system� If neon lighting is used, it may be neces-
sary to reduce the lighting. Reflections of extraneous light on the
object may result in interference�
⇒ Place the desk pad (12, Fig� 1) on the work table�
The surface structure and color of the desk pad have been
selected to reduce irritation to the eye, which could occur
with a surface with structure.
- 7 -
en

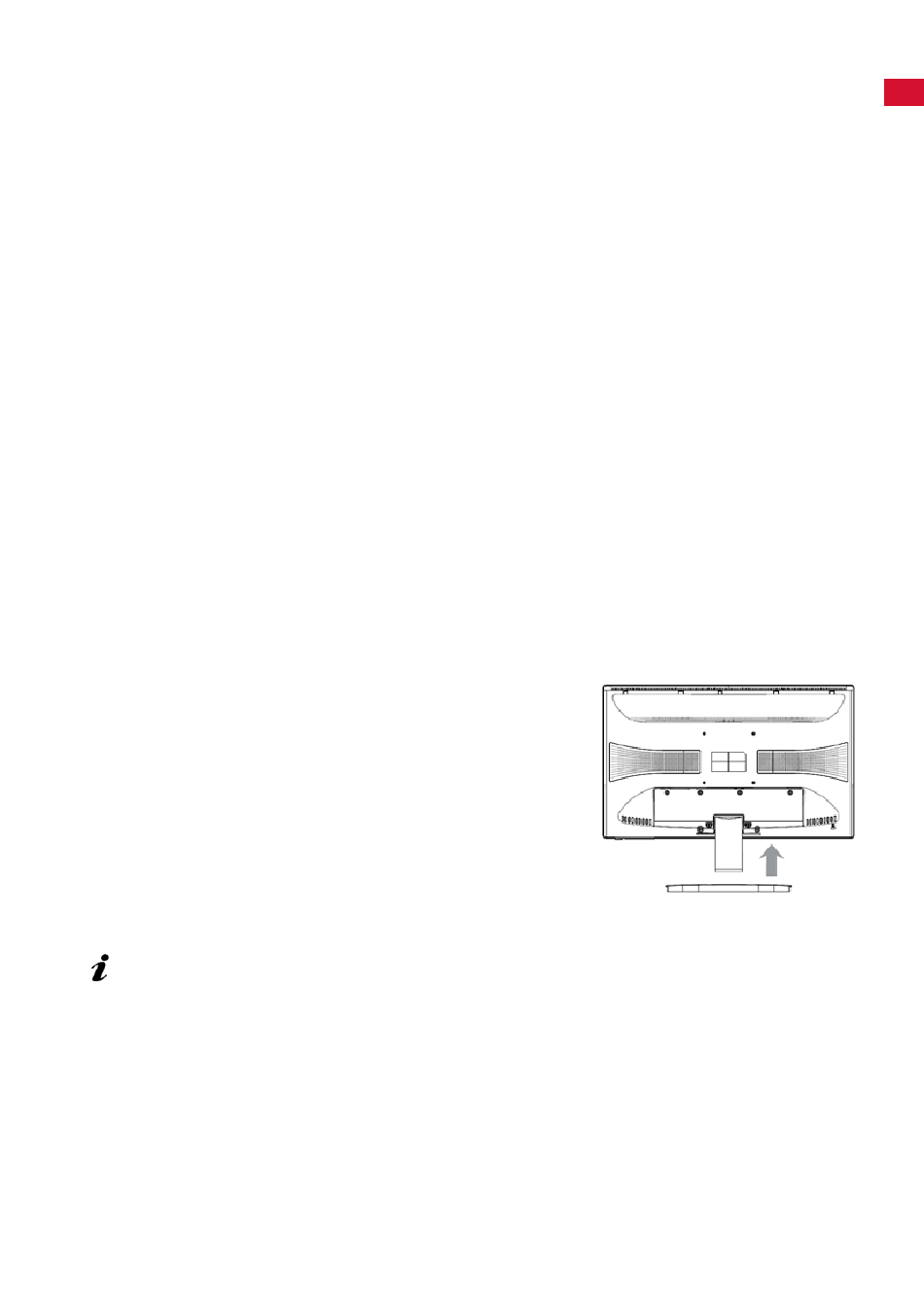

Fig. 3
