Take the following steps when using the monitor supplied by
Renfert:
en

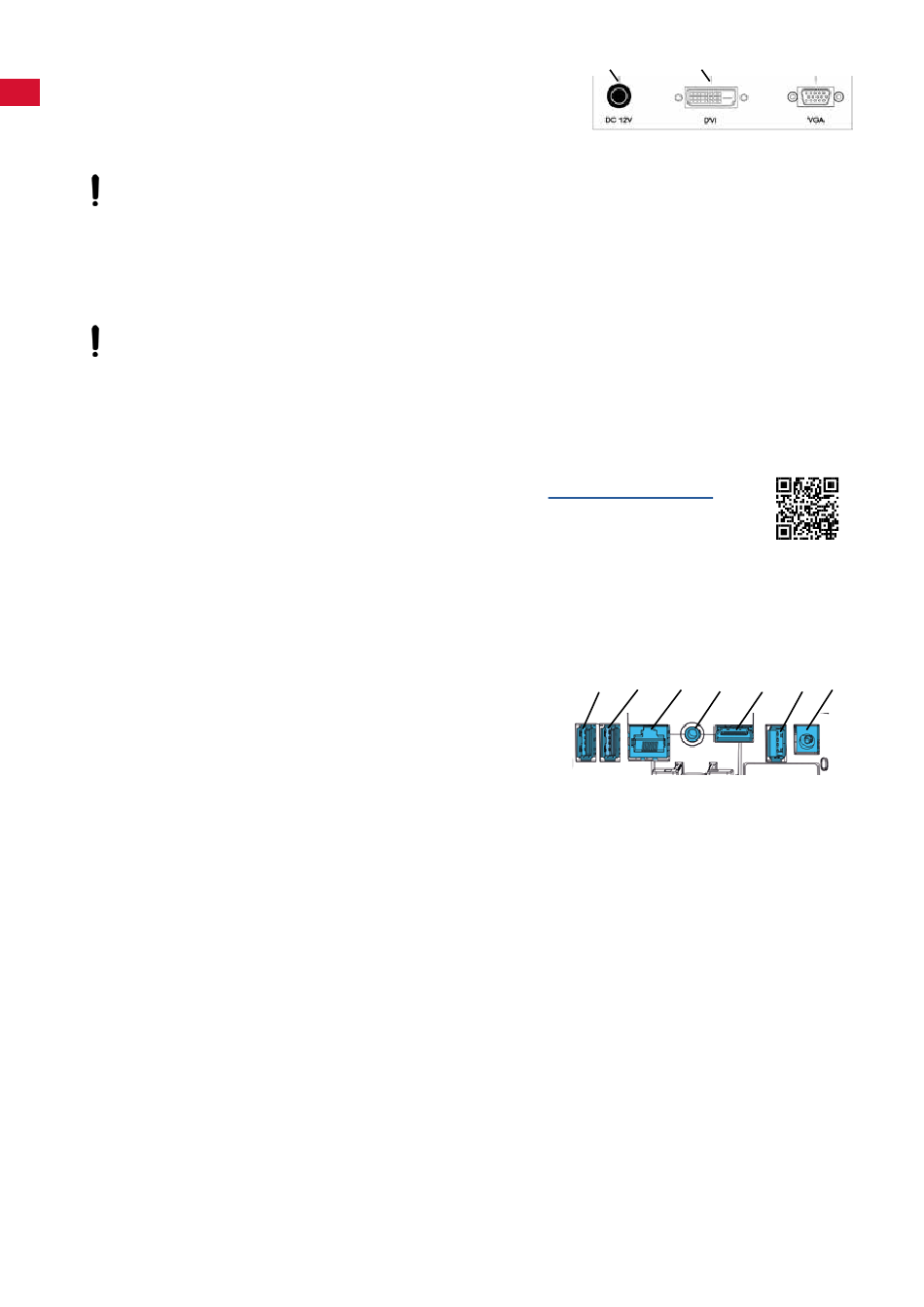

⇒ Monitor cable ==> DVI input of the monitor (41)�
⇒ Secure plug with integrated screws�
⇒ Power supply ==> DC 12 V (40)� The monitor power supply
(5, Fig� 1) has a cable with a hollow plug�
Ensure that the color coding is correct between the connection cable and socket!
⇒ Insert the power cord into the power supply unit and into the building wall socket�
4.4.4 Renfert CONNECT stick
You can connect the EASY+ 3D to the Renfert app using the Renfert CONNECT stick and, for example,
download images on your mobile device�
⇒ Insert the Renfert CONNECT stick into the Renfert CONNECT interface (26, Fig� 2)�
Make sure that the Renfert CONNECT stick is inserted in the correct port. If it is inserted in a dif-
ferent port, it will not work and may be damaged.
4.5 3D calibration
Due to vibrations during transport, the factory setting of the 3D calibration may be misaligned�
This results in a blurred 3D image�
In this case, please check the 3D calibration and reset it if necessary�
You can find a description of how to do this on the Internet at www.renfert.com/p918.
Enter the following item number: 2400 3000�
Switch to the "Download" area and select "EASY view + 2400X000 | Calibration"�
5 Operation
5.1 Switching on
⇒ Switch on the monitor by pressing the power button (8,
Fig�1)�
⇒ Switch on the head using the power switch (7, Fig� 1)�
♦ The lighting goes on�
♦ After about 20 seconds, an image appears on the moni-
tor�
♦ The version number of the EASY view+ software is displa-
yed on the bottom right of the screen�
The cone of light on the table top describes an area whose center is captured by the optics�
5.1.1 Stand-by
If there is no movement below the head for more than 10 minutes and the mouse has not been moved for
more than 10 minutes, the lighting and the monitor output are switched off.
The monitor's power button (8, Fig. 1) flashes in this case. The stand-by mode is ended when the mouse
is moved or movement takes place in the detection range of the optics�
5.2 Adjusting the monitor
In most cases, the monitor can be used with its basic settings� If you use EASY view+ with your own mon-
itor, observe the monitor's instructions for use�
If you use EASY view+ with your own monitor, observe the monitor's instructions for use�
5.3 Renfert APP
If EASY view+ 3D is equipped with a Renfert CONNECT stick, it can be connected to the Renfert app�
Depending on your mobile device, you can download the Renfert app using the App Store of Play Store�
For further instructions on how to connect the Renfert CONNECT stick to the app and integrate it into the
WiFi, please refer to the user guide of the Renfert app�
