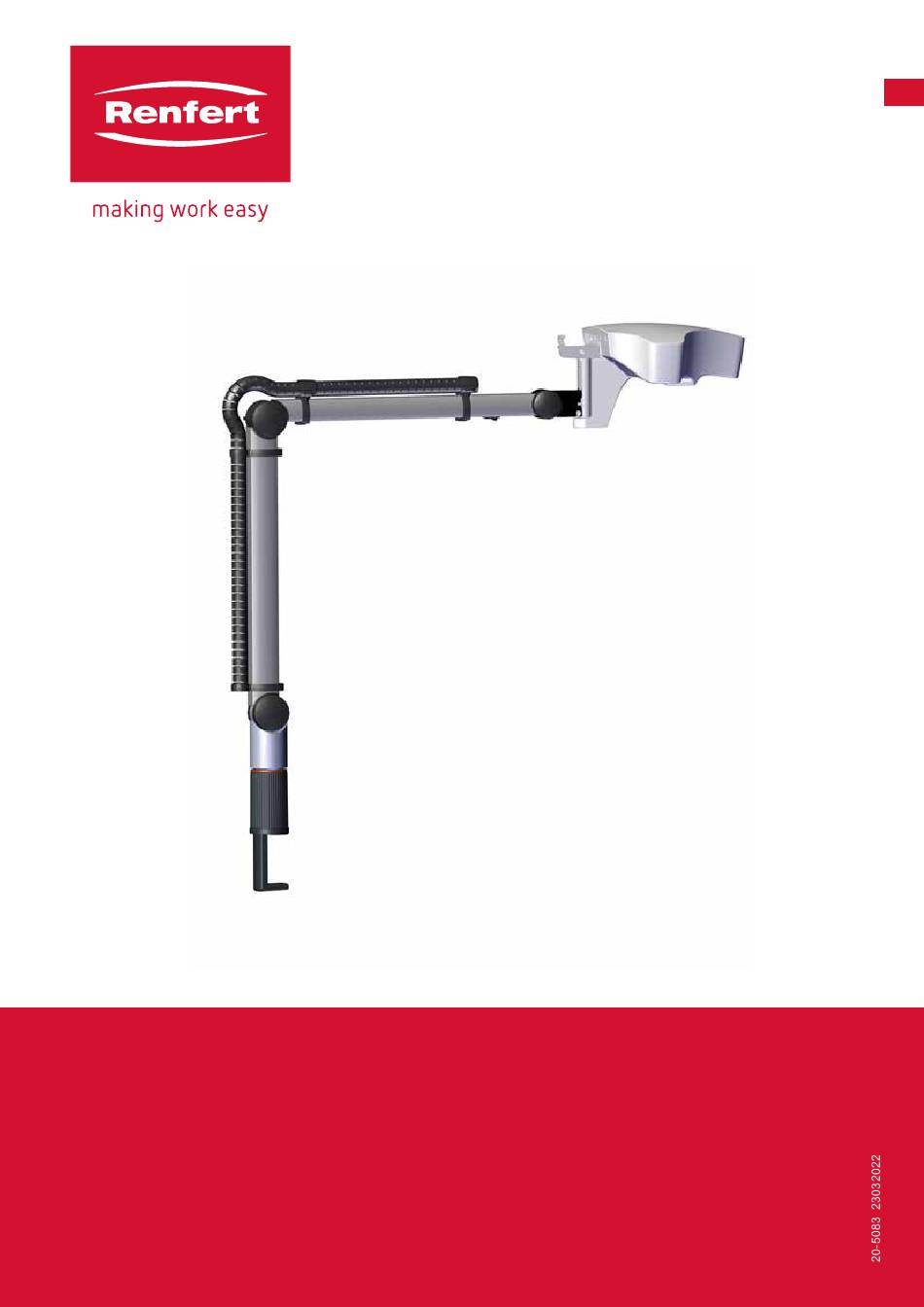

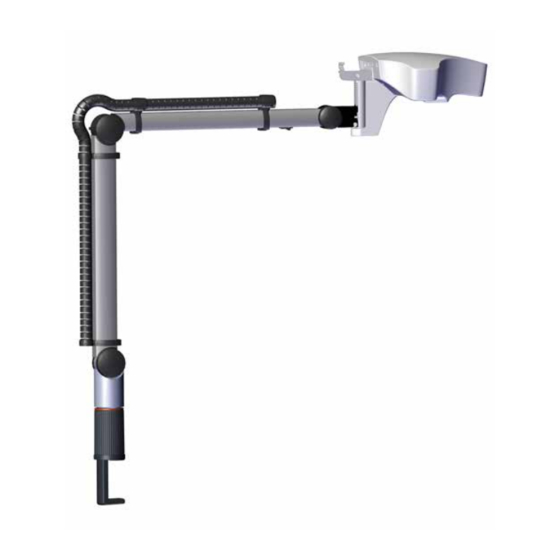

  • Page 1 EASY view+ 3D TRANSLATION OF THE ORIGINAL INSTRUCTIONS FOR USE Made in Germany...
  • Page 2: Table Of Contents

    4�4 Electrical connection ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 4�4�1 Connections on the head ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 4�4�2 EASY view 3D head power supply �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 4�4�3 Connecting the monitor ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 4�4�4 Renfert CONNECT stick �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� Operation �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 5�1 Switching on ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 5�1�1 Stand-by ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 5�2 Adjusting the monitor �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 3 Accessories ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 7�1 EASY view 3D HDMI-Video-Recorder ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 7�1�1 Connecting ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 7�1�2 Recording video ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 7�1�3 Recording video with sound ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 7�2 EASY view 3D HDMI-Splitter ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 7�2�1 Connect ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 7�3 EASY view 3D Converter 2D/3D ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 7�3�1 Connect ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� Cleaning / Maintenance �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 4: Introduction

    Correct use of the unit The system is used for digital stereo-magnification in 2D and 3D in real-time and for documentation. Unapproved Use Only spare parts and accessories supplied or authorized by Renfert GmbH may be used with this prod- uct. If other spare parts or accessories are used, this could have a detrimental effect on the safety of the device, increase the risk of serious injury and lead to damage to the environment or the device itself�...
  • Page 5: 2�4 Ambient Conditions For Storage And Transport

    ► the product is modified in any way – apart from modifications described in the operating instruc- tions ► the product has not been repaired by a specialist firm or original Renfert replacement parts have not been used ► there is continued use of the product despite obvious safety defects or damage ►...
  • Page 6: Product Description

    EASY view+ 3D power switch 14 USB memory stick Fig. 2 Connections 20 Power supply 24 USB port for mouse 21 HDMI output 25 Network 22 USB port for USB memory stick 26 Renfert CONNECT interface 23 Foot switch - 6 -...
  • Page 7: 3�3 Standard Delivery

    2400 2101 EASYbooth case large 9000 37809 3D glasses 9000 37901 EASY view 3D Headset HDMI-Recorder (only in use with 2400 0502 / 2400 0504) 2410 0000 Renfert CONNECT stick Commissioning Unpacking ⇒ Remove the device and accessories from the shipping box�...
  • Page 8 4.3.1 Mounting the support arm The support arm should preferably be mounted on the back or side of the table top, at least 400 mm away from the front edge. This makes it possible to optimally utilize the entire swiveling range of the support arm.
  • Page 9: 4�4 Electrical Connection

    ⇒ USB memory stick ==> connection (22)� ⇒ Network extension cable ==> in connection (25)� ⇒ Power supply of the head (integrated into the support arm) ==> connection (20)� ⇒ Renfert CONNECT stick ==> Renfert CONNECT interface (26)� Abb. 12-b Fig. 12-b 4.4.2 EASY view 3D head power supply The EASY view 3D power supply (4, Fig�...
  • Page 10: 4�4�4 Renfert Connect Stick

    ⇒ Insert the Renfert CONNECT stick into the Renfert CONNECT interface (26, Fig� 2)� Make sure that the Renfert CONNECT stick is inserted in the correct port. If it is inserted in a dif- ferent port, it will not work and may be damaged.
  • Page 11: 5�5 System Settings

    System settings The current settings of the system are displayed on the monitor at the bottom left� As soon as the mouse is moved, the monitor displays the available settings and with which element of the mouse the setting can be changed� System settings 2D/3D representation Magnification...
  • Page 12: 5�6 Screen Shot / Still Image

    Depending on the FTP transfer program used, you will need to enter the host name and/or the IP address� When asked for a user name, enter "Renfert"; a password is not required and can be ignored� Access via WINDOWS Explorer ⇒...
  • Page 13: 5�7 Working With 3D

    Access via Safari ⇒ Open the Safari browser� ⇒ Enter the IP address as displayed in the address line� ⇒ Enter "Renfert" as the user name for the authentication prompt; the password field Fig. 16 remains blank� ♦ The files of the USB stick are only dis- played in tables/text form� ♦ It is not possible to move the files.
  • Page 14 Select which image selection should be displayed in black & white / color� • Wi-Fi reset: If available, the Renfert CONNECT Wi-Fi adapter is reset� It is then in access point mode again and must be reconnected to the Wi-Fi network using the Fig.
  • Page 15: 5�8�1 System Information

    Black & white / color sub-menu The following combinations are possible: • The main image in black & white, the inserted image in color� • The main image in color, the inserted image in black & white� • Both images in black & white� •...
  • Page 16: Monitor

    The following explanations in Chapter 6 apply only to the monitor that is included in the scope of delivery for item no. 2400 3000. If you use a different monitor, follow its safety instructions and instructions for use. Renfert recommends not changing the factory settings of the monitor as the basic settings for the EASY view+ 3D� Safety instructions Commissioning ►...
  • Page 17: 6�4 Monitor Menu

    Monitor Menu Color Contrast Adjust screen contrast (difference between light and dark regions of the image)� Brightness Adjust the brightness of the image� Color Temp. Select between different, preset color temperatures or set your own custom parameters� (9300/6500/5500/USER)� Auto Adjust (not selectable). Fig. 29 Color Adjust (not selectable). Image The settings under this menu item are fixed and can- not be changed� The menu item cannot be selected�...
  • Page 18 They can be ordered separately as accessories (see the chapter 3�4 Accessories)� If non-Renfert accessories are used, no warranty can be assumed for the functionality� If necessary, device-specific settings settings are required on the additional device. EASY view 3D HDMI-Video-Recorder With the HDMI-Video-Recorder, video sequences can be recorded with audio on a USB memory stick�...
  • Page 19 EASY view 3D HDMI-Splitter With the EASY view 3D HDMI Splitter, a 3D or 2D video signal can be sent to a second Renfert 2D/3D monitor� The signal is multiplied but remains unchanged� This can be used for training purposes, for ex- ample�...
  • Page 20 2D output device without 3D glasses� For this purpose, the head is connected to the input of the converter 2D/3D, to the 3D output of the 2D/3D Renfert monitor and to the 2D output of any other 2D device�...
  • Page 21 ⇒ Switch off the head unit using the on/off switch (7, Fig. 1). ⇒ Tilt head upwards� ⇒ Push in tab on the underside� ⇒ Pull protective glass out� ⇒ Clean/replace the protective glass� ⇒ Push in the protective glass until the tab latches in again� When sliding the safety glass: - Do not allow it to get wedged - Do not bend Fig.
  • Page 22 • PC monitor is connected to • When using EASY view 3D HDMI splitter, a 3D image can EASY view 3D HDMI Spiltter� only be viewed on a Renfert 3D/2D monitor� Head without function. • The EASY view 3D power sup- •...
  • Page 23 • Change EASY view+ 3D to 2D image view� nected PC monitor. On EASY view 3D HDMI Splitter, • If a 3D display required, use a another Renfert 2D/3D moni- only 2D images are displayed on tor (Accessories)� PC monitors�...
  • Page 24 3,65 kg [8�0 lbs] Guarantee Renfert gives a 3-year guarantee on all parts of the device provided that the product is used in accor- dance with the operating instructions� The original sales invoice of the specialist depot is required for a claim under guarantee�...
