The file name has the following format:
• IMGxxx�jpg
• xxx = sequential counter 000 to 999
If the USB memory stick is then connected to a PC, the file names can be changed as usual, for example,
to assign them to a customer�
5.6.3
Accessing the USB stick via a network
If the EASY view+ 3D head is connected to a local network via the network port (25, Fig� 2) and the net-
work extension cable (already inserted in the cable channel), the images (screen shots) of the USB stick
in the head can be accessed over the network�
Access can take place using free FTP transfer programs (for example, FileZilla), or directly via the WIN-
DOWS Explorer or the Apple browser, Safari�
⇒ Plug in the network cable into the cable jack at the end of the network extension cable and connect it to
a switch or router� This network cable is not included in the scope of supply�
⇒ Move the mouse and note the IP address and host name�
♦ The IP address and host name are displayed at the bottom of the screen:
IP address:
Host name:
See sections 5.8 and 5.8.1. for information on IP address and hostname.
Access via a FTP transfer program
Depending on the FTP transfer program used, you will need to enter the host name and/or the
IP address� When asked for a user name, enter "Renfert"; a password is not required and can be ignored�

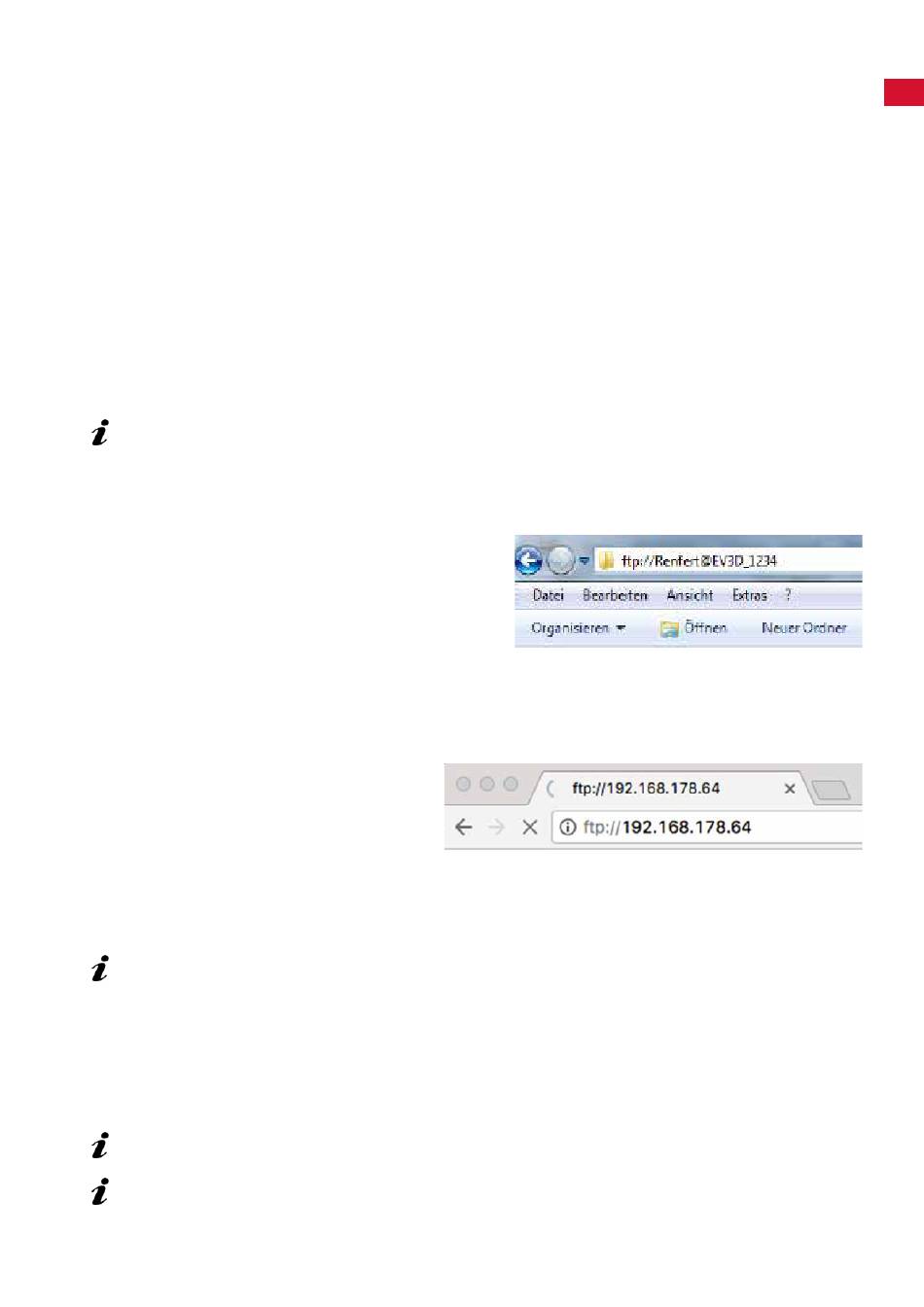

Access via WINDOWS Explorer
⇒ Open WINDOWS Explorer
⇒ Enter the host name as displayed in the address
line�
⇒ Press Enter�
♦ The content of the USB stick is displayed as
folder content�
♦ It is NOT possible to view a preview of the
images�
♦ Images/files can be moved/copied between the
PC and USB stick by dragging and dropping�
Access via Safari
⇒ Open the Safari browser�
⇒ Enter the IP address as displayed in the
address line�
⇒ Enter "Renfert" as the user name for the
authentication prompt; the password field
remains blank�
♦ The files of the USB stick are only dis-
played in tables/text form�
♦ It is not possible to move the files.

Depending on the network configuration, the EASY view+ 3D head is assigned a new IP address
after being switched on. If there is no connection, the IP address must be checked.
5.7
Working with 3D
After switching to the 3D display, a 3D image is generated on the monitor�
When working in 3D, the 3D glasses must be worn�
Looking at the 3D image without 3D glasses (for example, over the shoulder of another person) is very
strenuous and not recommended�
When working in 3D mode, it is important that the monitor is aligned correctly.
The monitor should be perpendicular to the viewing direction. Refer to Chapter 4.3.3.
The 4x magnification does not allow for a 3D illustration.
ftp://XXX�XXX�XXX�XX
ftp://Renfert@EV3D_xxxx (xxxx: 4-digit number, device-specific)
.
- 13 -
en
Fig. 16
Fig. 17
