Section 3: Instrument description
Series 2600B System SourceMeter® Instrument Reference Manual
Rear panel
The rear panel of the Series 2600B is shown below. The descriptions of the rear-panel components
follow the figure.

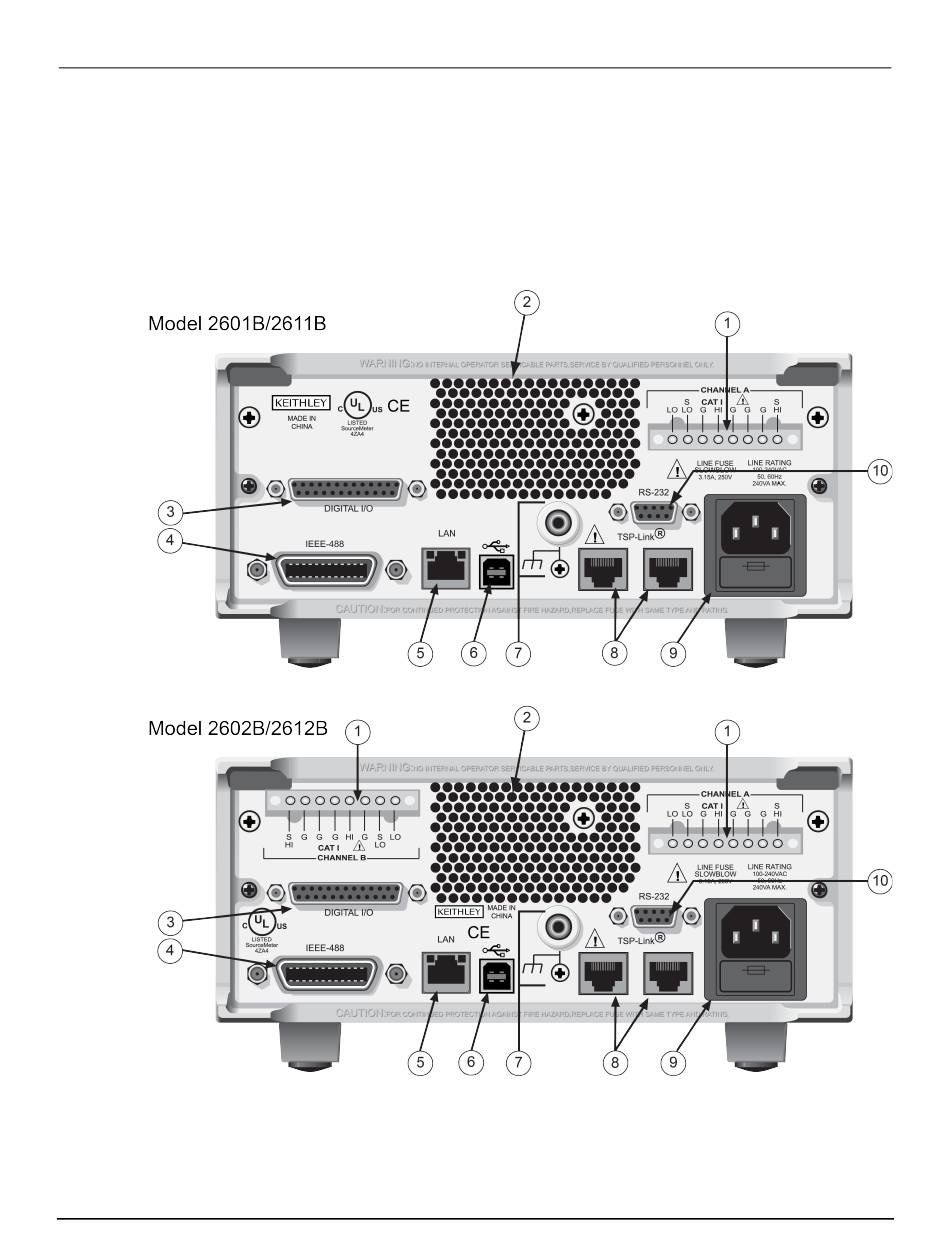

Figure 14: Rear panel (Models 2601B, 2602B, 2611B, and 2612B)
3-6
2600BS-901-01 Rev. E / January 2019
