Appendix D: Status model

Clearing registers

Commands to reset the status registers are listed in the table below.
In addition to these commands, you can reset the enable registers and the NTR to 0. To do this, send
the individual command to program the register with a 0 as its parameter value. The PTR registers
can be reset to their defaults by programming them with all bits on. Note that the event registers are
not programmable but can be cleared by reading them.
Commands to reset registers
Command
To reset registers:
*CLS
status.reset()

Programming and reading registers

Programming enable and transition registers

The only registers that you can program are the enable and transition registers. All other registers in
the status structure are read-only registers. The following explains how to determine the parameter
values for the various commands used to program enable registers. The actual commands are
summarized in
A command to program an event enable or transition register is sent with a parameter value that
determines the state (0 or 1) of each bit in the appropriate register. The bit positions of the register
(see the following figure) indicate the binary parameter value and decimal equivalent. To program one
of the registers, send the decimal value for the bits to be set. The registers are discussed further in
Enable and transition registers
D-14
Description
Reset bits of the event and NTR registers to 0 and set all PTR register bits
on. Also clears the output queue.
Reset bits of the event and NTR registers to 0 and set all PTR register bits
on.
Common commands (on page C-1) and
(on page D-19).

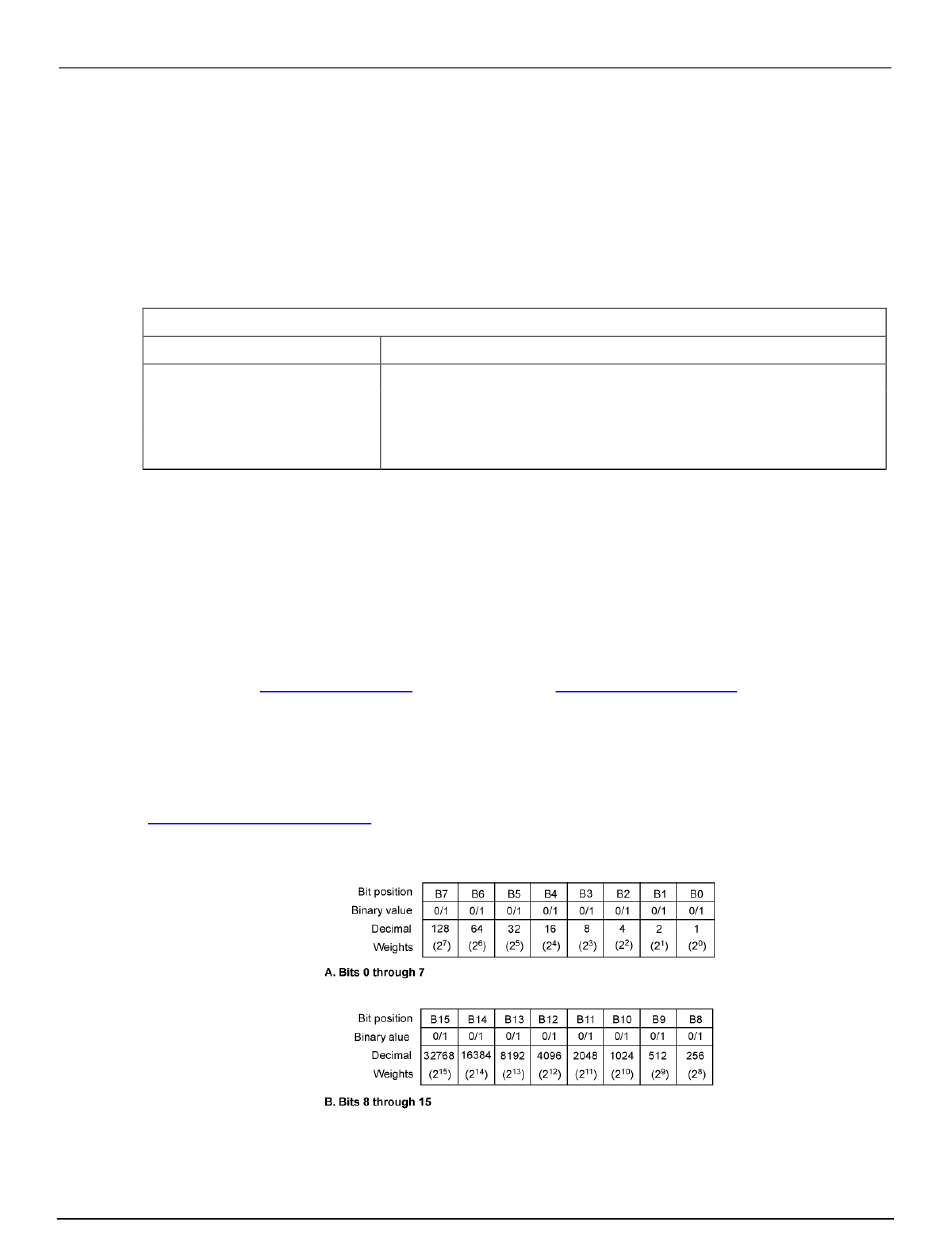

Figure 168: 16-bit status register
Series 2600B System SourceMeter® Instrument Reference Manual
Status function summary (on page D-4).
