The 2642A Analyzer
Introduction
j
!I
I
•
l l
0

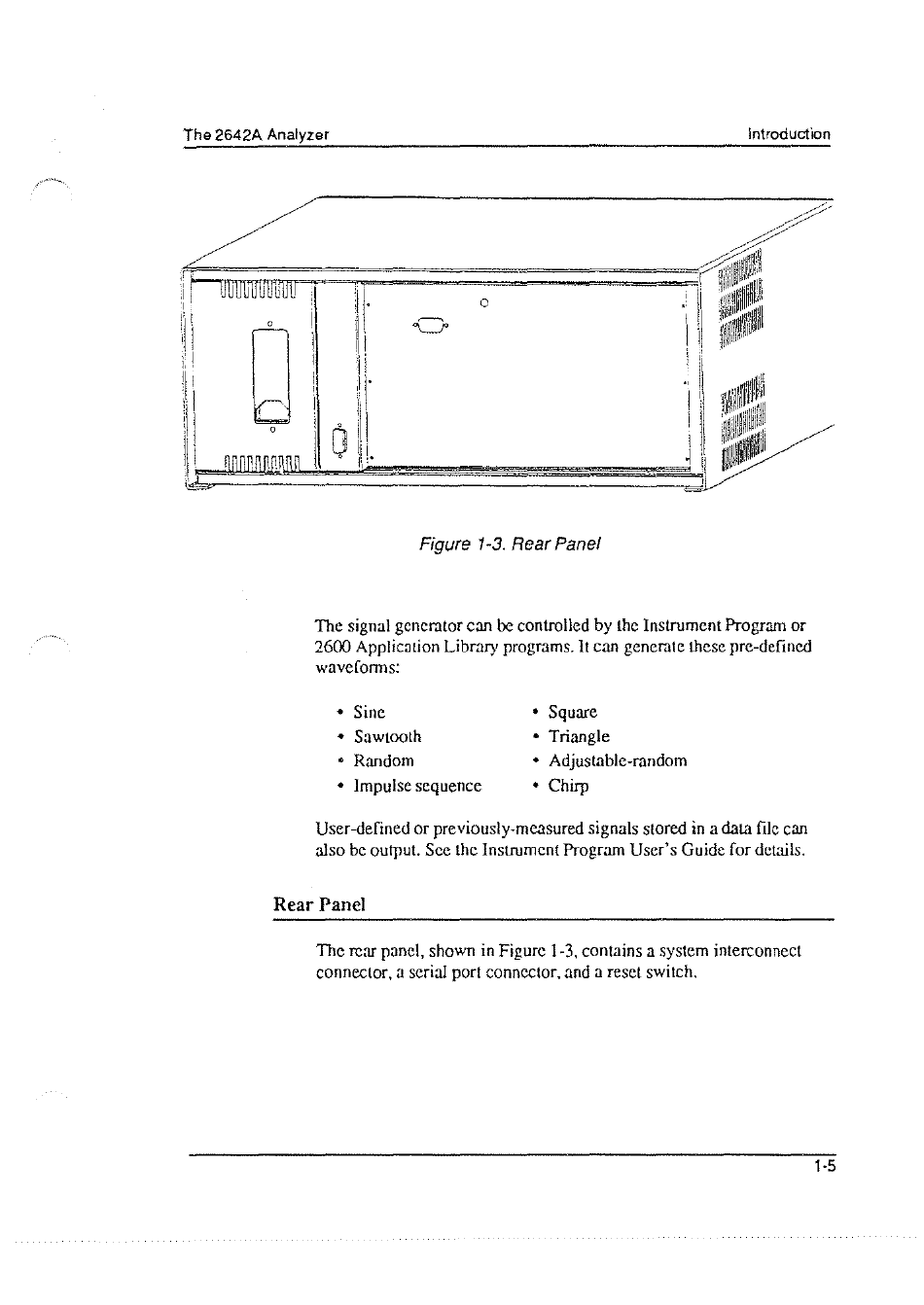

Figure 1-3. Rear Panel
The signal generator can be controlled by the Instrument Program or
2600 Application Library programs.
It
can generate these pre-defined
wavefonns:
• Sine
• Square
• Sawtoolh • Triangle
• Random • Adjustable-random
• Impulse sequence • Chirp
User-defined or previously-measured signals stored in
a
data file can
also be output. Sec the Instrument Program User's Guide for details.
Rear Panel
The rear panel, shown in Figure 1-3, contains a system interconnect
connector, a serial port connector. and a reset switch.
1·5
