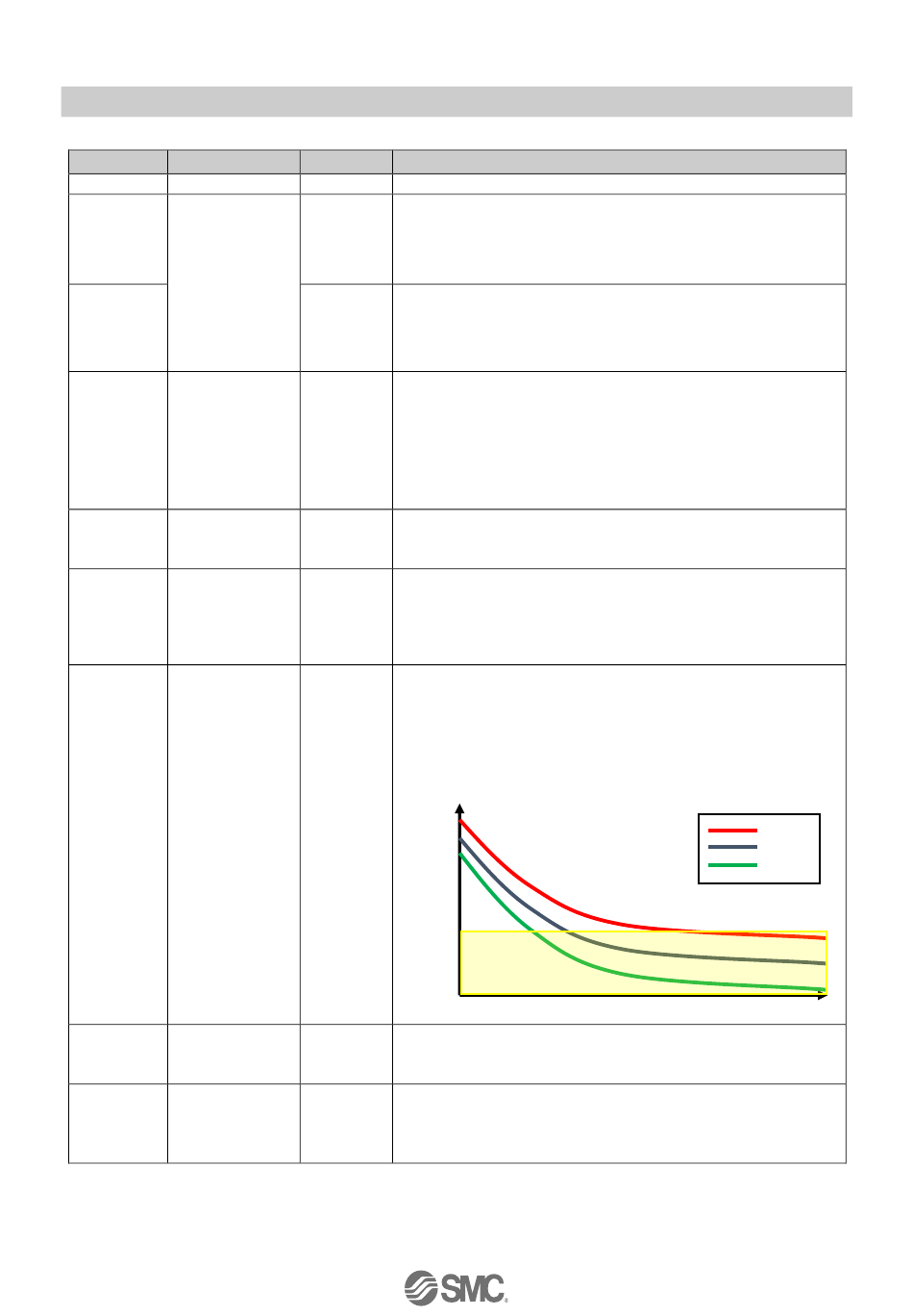

SMC Networks EXW1-BENAC1 Operation Manual page 97

- Compact Wireless Base (EXW1-BENAC1)
Parameter Set value
I/O mapping Manual / Auto
System input 16, 128, 256, 512,
size 768, 1024, 1280,
2048 to 11264
pointsi in 1024-
point units
System output
2, 16, 32, 64, 96,
size
128, 160,256 bytes
to 1408 bytes in
128- bytes units
Diagnostic None / Simple /
allocation Advanced
Max. Remote 15 / 31 / 63 / 127
units Remotes
Time of 100/ 200 / 500 /
Wireless 1,000 / 2,000 /
communicatio 5,000 msec
n timeout
Power High/Middle/Low
Transmission
Level
Wireless Active / Idle
signal
Protocol V.1.0 / V.2.0
Initial value
Manual Specifies an I/O mapping method.
2048 points/ Set the number of inputs which can be controlled by the entire
256 byte wireless system.
* Number can only be set when "Manual" is used for I/O mapping.
2048 points/ Set the number of outputs which can be controlled by the entire
256 byte wireless system.
* Number can only be set when "Manual" is used for I/O mapping.
Advanced Set the diagnostic information allocated to the I/O map. Refer to the
"Diagnostic allocation" section in the Operation Manual (page 56) for
details.
None: No diagnostic data
Simple: System diagnostics
Advanced: System diagnostics + Wireless Remote connection /
diagnostics / registration information
15 Remotes Set the number of Wireless Remote units which are registered to the
Wireless Base unit.
Wireless channels for the number of the set units are enabled.
Only available in protocol V.2.0.
500 msec
If wireless communication (including retries) does not succeed due
to obstacles or for other reasons, it is judged to have failed after a
set amount of time and disconnected. Afterwards, the Base and the
Remote are reconnected.
Only available in protocol V.2.0.
High
It is possible to decrese interference with other wireless products by
reducing the output power level.
This setting is made in the base and will be applied to any paired
Remotes with wireless atdaptor via wireless communication.
Setting range: High/Middle/Low (Power Transmission : High > Middle
> Low)
RSSI
[dBm]
No reception
Active Sets the operation status of wireless communication.
Active: Wireless communication output is active
Idle: Wireless communication output is idle
V.2.0 Sets the wireless communication protocol.
* To pair with an EX600-W-series unit, V.1.0 must be set.
This also applies when building a wireless system consisting of both
EXW1 and EX600-W series. Refer to "5.3.2 Properties" for details.
-96-
Note
High
Middle
Low
Distance [m]
No.EX##-OMV0017-G
