Explanation of screens

2.6

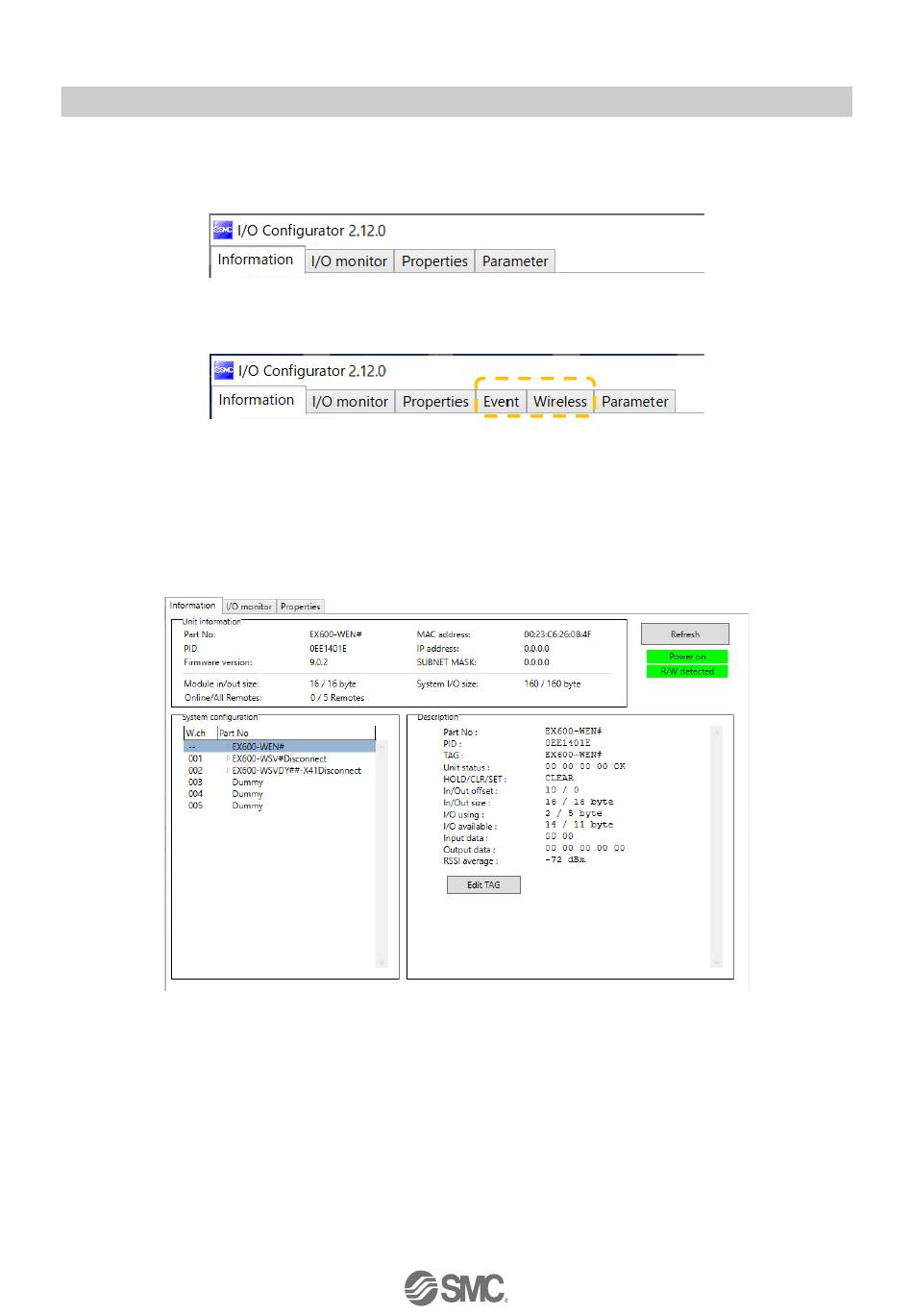

The tabs available on the I/O Configurator (NFC version) consist of the [Information], [I/O monitor],
[Properties], and [Parameter] tabs.
On an EXW1-series Base unit, [Event] and [Wireless] tabs are displayed to the right of the [Properties] tab.
An outline of each tab is explained below. Refer to "5. Screen details of the I/O Configurator (NFC version)"
for details.
⚫ Information tab
Wireless unit information and system configuration can be checked on the Information tab.
