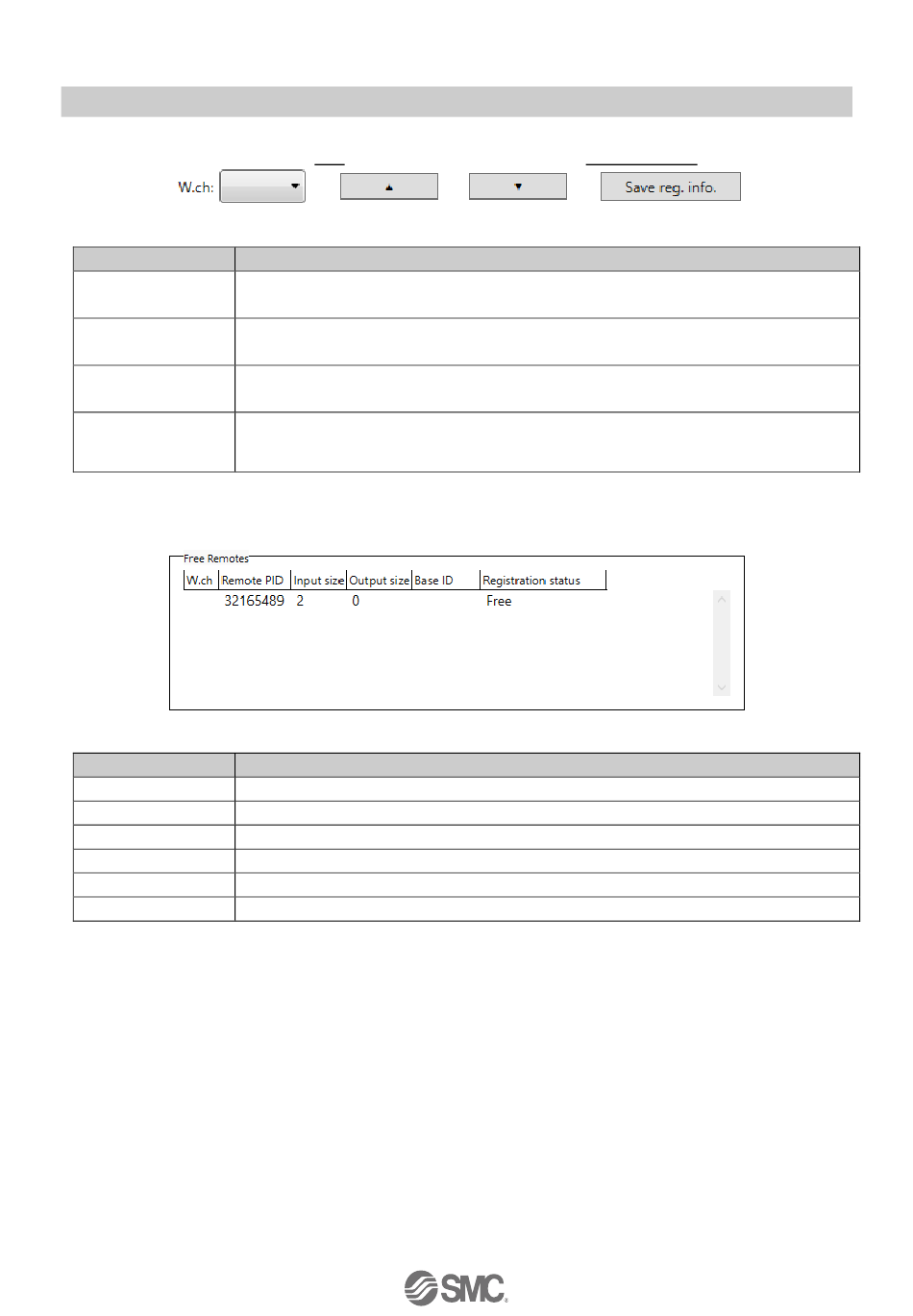

(5)-b Remote registration buttons
Remote registration buttons are only enabled when wireless units are in pairing mode.
- Remote registration button display
Display
W.ch
[▲]
[▼]
Save reg. info.
(5)-c Free Remotes
Nodes for Remote units in pairing mode and not yet registered to a Base are listed in the Free Remotes
area.
- Free Remote display
Display
W.ch
Remote PID
Input size
Output size
Base ID
Registration status
Select the channel used to register the Remote to the Wireless Base.
(Only channels available for registration will be displayed)
Move the Wireless Remote from Free Remotes to Registered Remotes.
(Specify the wireless channel before moving)
Remove a Wireless Remote from "Registered Remotes".
(The Wireless Remote will now be displayed in the "Free Remotes" area)
Register the Remotes shown in "Registered Remotes" with the status "Registered Wait"
("Registered" will be displayed when the Remote is successfully registered to the Wireless
Base)
No information to display.
Indicates the PID of the Wireless Remote.
Wireless Remote input size.
Wireless Remote output size.
Previously registered Base PID.
Displays the status "Free".
Description
Description
