Output tab

5.2.2

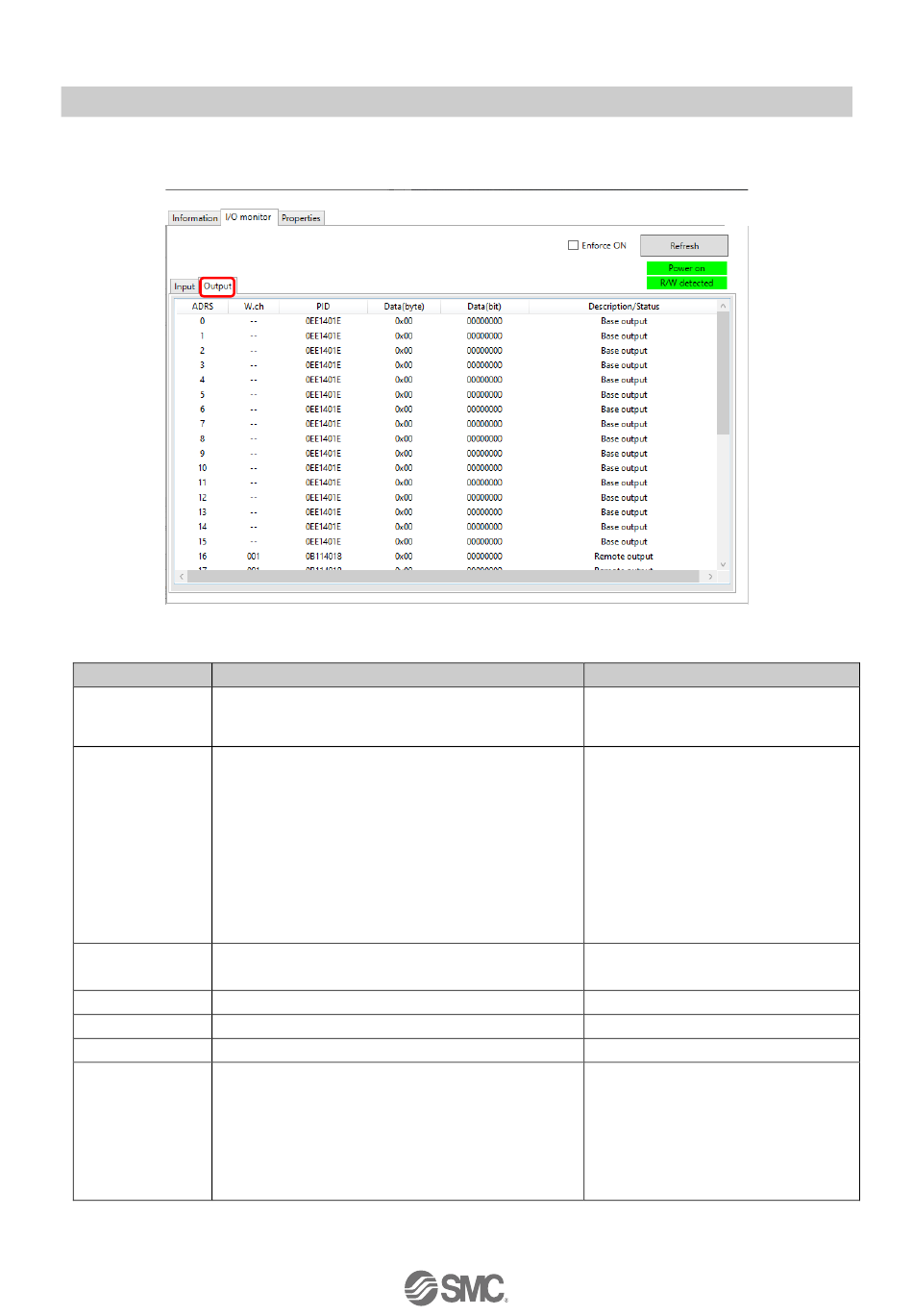

The output tab shows the output mapping information of the wireless unit.
￥
- Output display
Display
Forced output mode can be selected by clicking
Enforce ON [Enforce ON].
* Refer to "4.4 Forced output" for details of operation.
ADRS Displays the output map address.
Wireless unit channel.
W.ch
(Wireless channel of the Base is displayed as [- -].
PID Wireless unit PID.
Data(byte) Output data is displayed in bytes.
Data(bit) Output data is displayed in bits.
Description/Status Details of output data.
Description
-76-
￥
Displayed items
Check marked: Forced output on
Not check marked: Forced output off
Base unit:
EX600-WEN*, EX600-WPN*
0 to 159
EXW1-BECAC
0 to 1472
EXW1-BENAC1
0 to 1439
EXW1-BPNAC1
0 to 1307
Remote unit: 0 to 15
--, ch001 to 127
Individual per unit.
0x00 to 0xFF, no information
00000000 to 11111111, no information
Base unit:
- Base output
- Remote output
- Reserve output
- Connection error
Remote unit:
- Remote output
No.EX##-OMV0017-G
