● System setting
Change the parameter settings as required.
￥
The parameters below can be set. Settable parameters depend on the unit being set (refer to "5.3 Properties
tab" for details).
System setting items (example using compact Wireless Base EXW1-BMJA#)
Parameter
I/O mapping
Diagnostic allocation
DA refresh time (sec) * 1
Output Action of Upper
Communication
Time of Wireless
Communication
Input Information of Wireless
Communication
Wireless signal
Protocol
2
Time Information *
*1 It is necessary to set the data update time for each analog input unit connected to the Wireless Remote.
*2 Click [Synchronize time] to synchronize with the system time on the PC being used to make settings. Counting starts
from that time.
- The protocol version is set to V.1.0 by default; to use the 1 Mbps wireless communication speed
and the frequency channel selecting function (F.C.S.) in a wireless system consisting solely of
EXW1 series devices, change the protocol version to V.2.0 before pairing them.

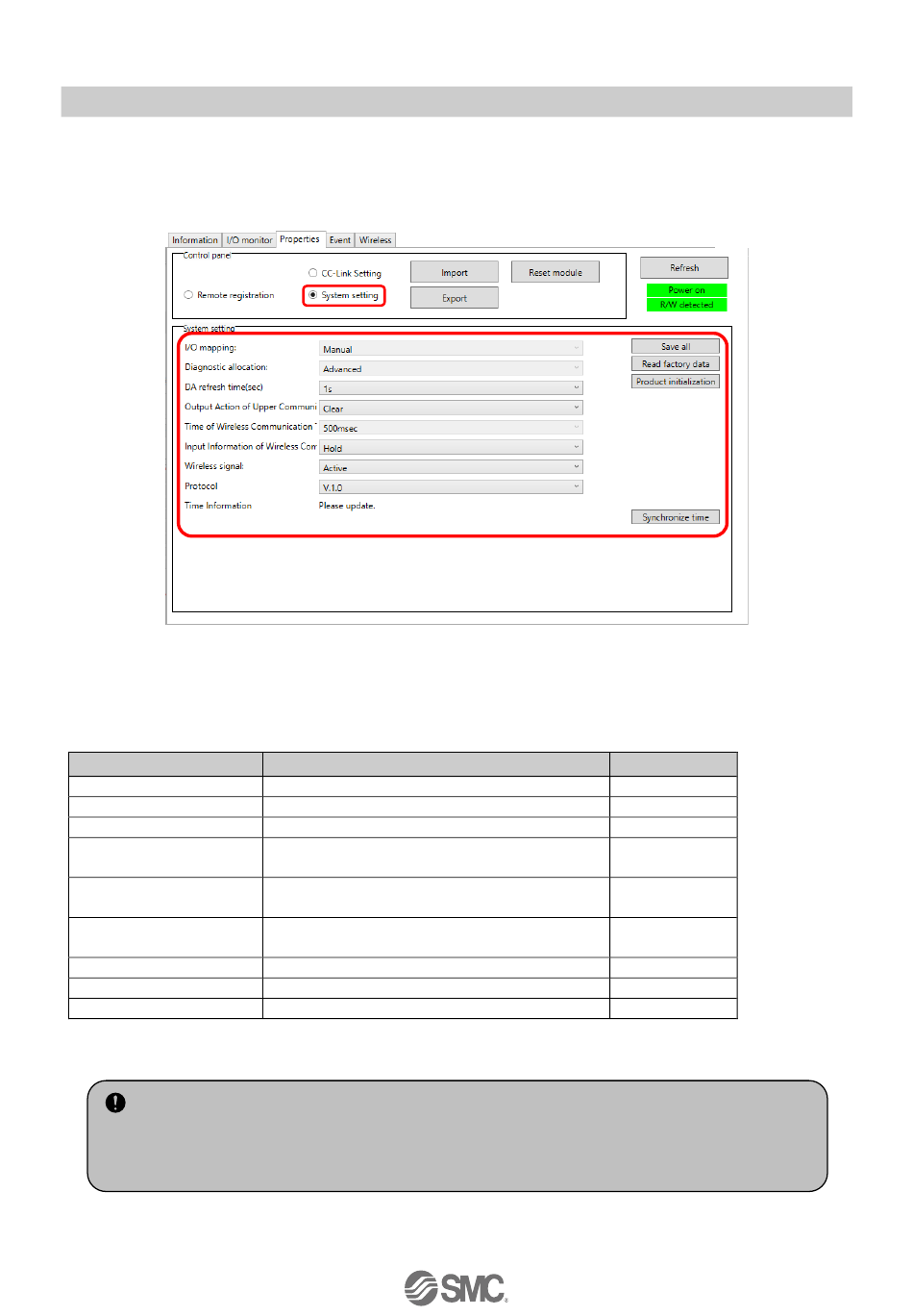

System setting screen (example using EXW1-BMJA#)
Set value
Manual
Advanced
0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 / 30 / 60 s
Clear / Hold / Individual
20 / 40 / 100/ 200 / 500 / 1,000 / 2,000 / 5,000 msec 500 msec
Clear / Hold
Active / Idle
V.1.0 / V.2.0
-
Manual
Advanced
1 s
Clear
Hold
Active
V.1.0
Unsynchronized
