SMC Networks EXW1-BENAC1 Operation Manual page 39

● Frequency channel select function (F.C.S.)
With a EXW1 series Base unit, the frequency channel can be selected.
Only protocol V.2.0 is supported. Specify protocol V.2.0 in [System setting].
* The number of selectable frequency channels varies depending on the country in use. Refer to the
operation manual for the product in use.
* If no channel is selected, communication is established on ch 79 by default.

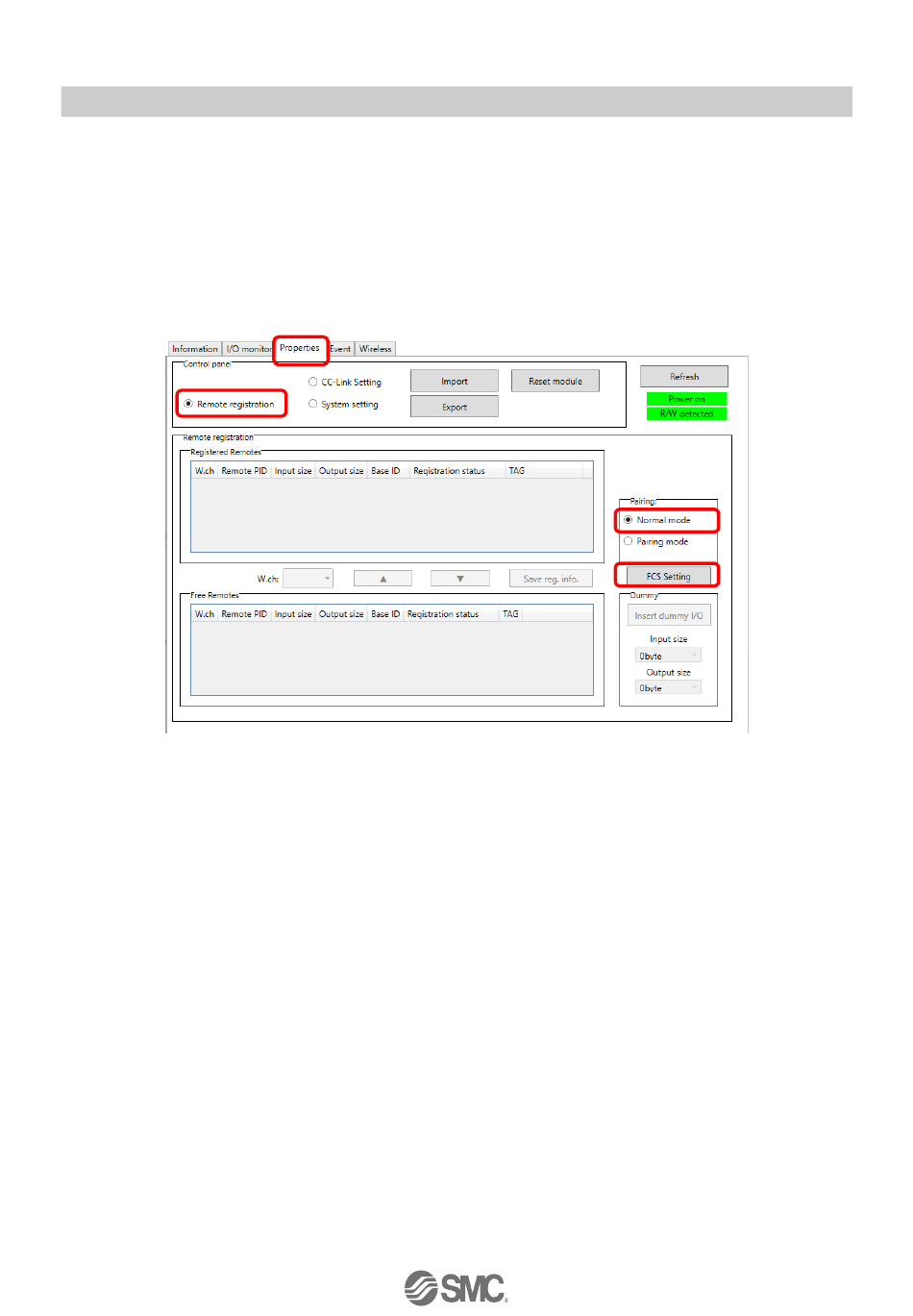

Make settings from [Remote registration] on the [Properties] tab.
￥
(1)
(2)
(1) Set [Pairing] to [Normal mode].
Refer to "3.5 Pairing" for details on pairing.
(2) Click [FCS Setting].
-38-
No.EX##-OMV0017-G
