About the I/O Configurator (NFC version)

1.2
With the I/O Configurator (NFC version), the status of a wireless system can be checked and all parameters
of a wireless unit can be set from a PC using an NFC reader / writer. The status can be checked without
logging in (Monitor mode). Logging in is necessary before setting parameters (Administrator mode).
The following can be performed in Monitor mode.
- Checking the parameters of wireless units
- Checking the details and status of a wireless system
The following can be performed in Administrator mode.
- Setting the parameters of wireless units
- Changing the details of a wireless system
- Pairing Wireless Base / Remote units
There are two types of settable parameters which can be read or written when no power is supplied to the
product, and parameters which can be read or written only when power is supplied to the product.
Establish communication by
adjusting the position so that the
height from the center of the
NFCR/W antenna to the "O" on the
wireless unit is 1 cm or less.

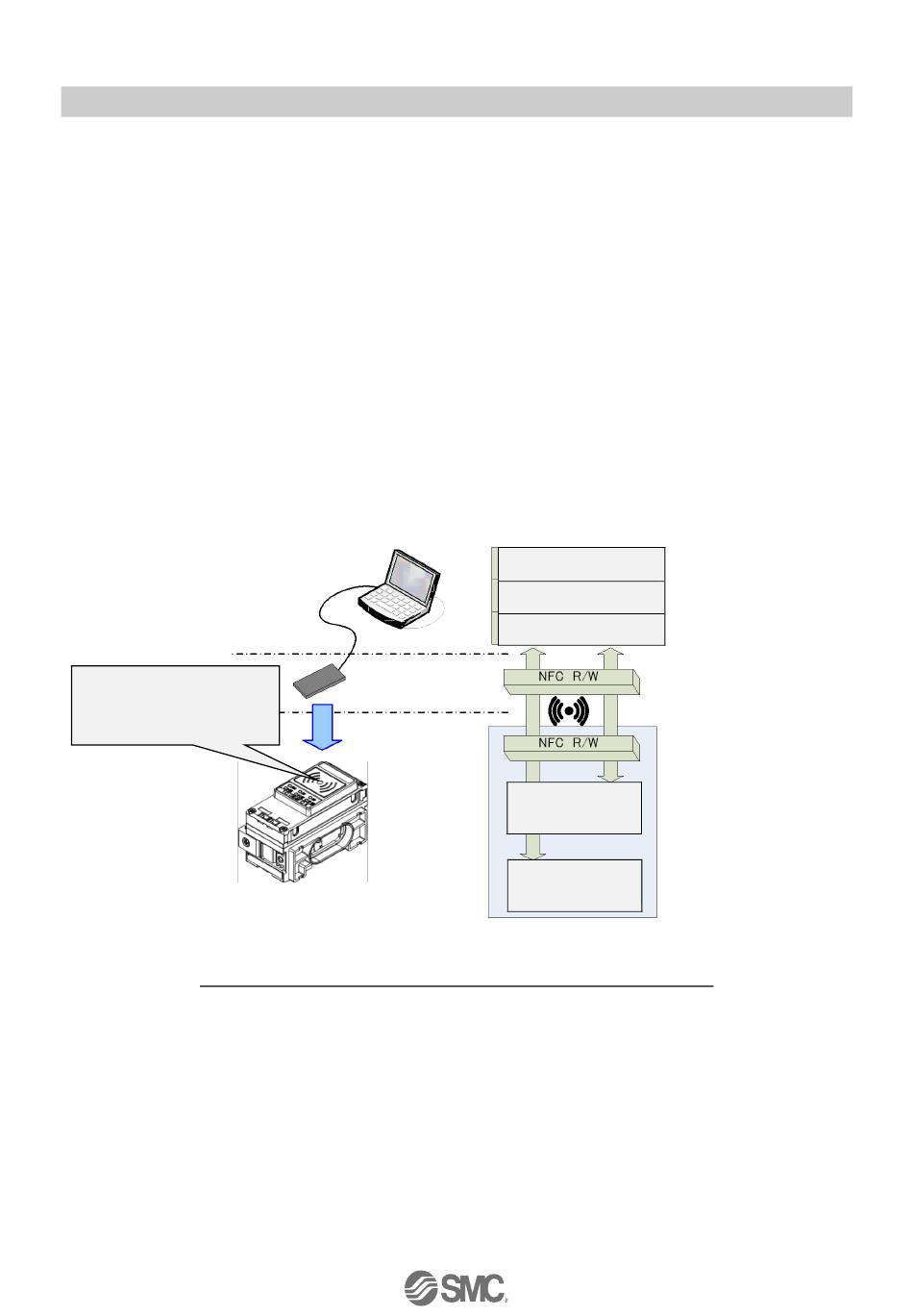

Connection details using the I/O Configurator for NFC and wireless unit
* I/O Configurator (Web version)
This operation manual explains the outline of the setting using the I/O Configurator (NFC version).
The I/O Configurator (Web version) is used to set parameters for the "Wireless Base" and parameters for the "I/O devices".
* The product is available in Japanese, English, and Chinese by setting the language in the Windows OS.
I/O Configurator
OS (Windows)
PC/SC driver
Memory area where
power supply is
unnecessary.
Memory area where
power supply is
necessary.
※One PC will recognize one NFC reader / writer per application setting.
Do not connect multiple NFC readers / writers to a PC.
-4-
PC
NFC reader / writer
Wireless Base unit
Wireless Remote unit
