I/O monitor tab

5.2
In the I/O monitor tab, the wireless unit I/O mapping data can be monitored when the power status is "Power
on". Diagnostic information or details of input / output can be checked by double-clicking any address line in
the display. Forced output mode can be selected in the [Output] tab.

Input tab

5.2.1
The input tab shows the input mapping information of the wireless unit.

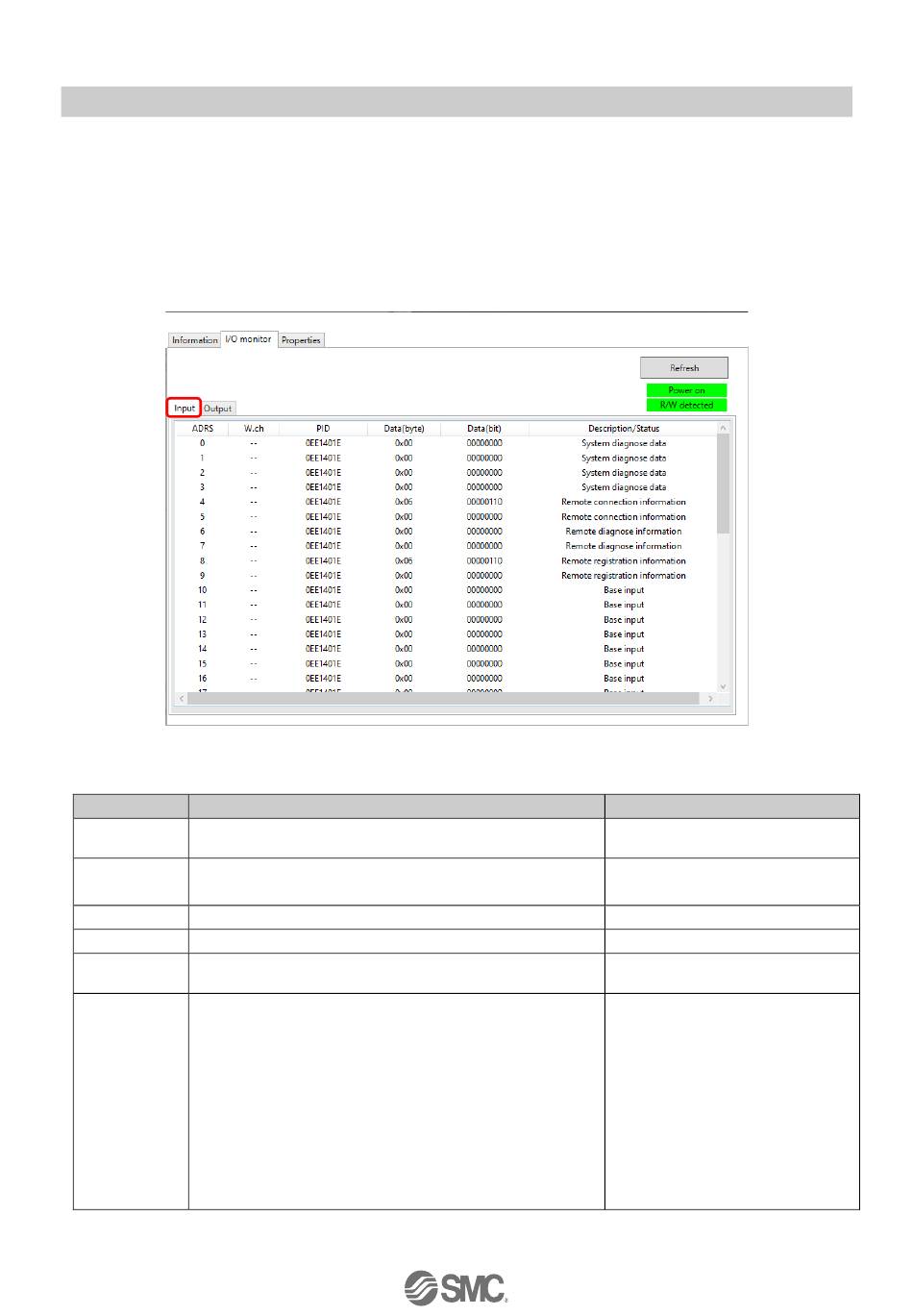

- Input display
Display
ADRS
Displays the input map address.
Wireless unit channel.
W.ch
(Wireless channel of the Wireless Base is displayed as [- -].
PID
Wireless unit PID.
Data(byte)
Input data is displayed in bytes.
Data(bit)
Input data is displayed in bits.
Description/
Details of input data.
Status
Description
-75-
Displayed items
Base unit: 0 to 159
Remote unit: 0 to 15
--, ch001 to 127
Individual per unit.
0x00 to 0xFF, no information
00000000 to 11111111, no
information
Base unit:
- System diagnose data
- Remote connection information
- Remote diagnose information
- Remote registration information
- Base input
- Remote input
- Reserve input
- Connection error
Remote unit:
- Remote input
No.EX##-OMV0017-G
