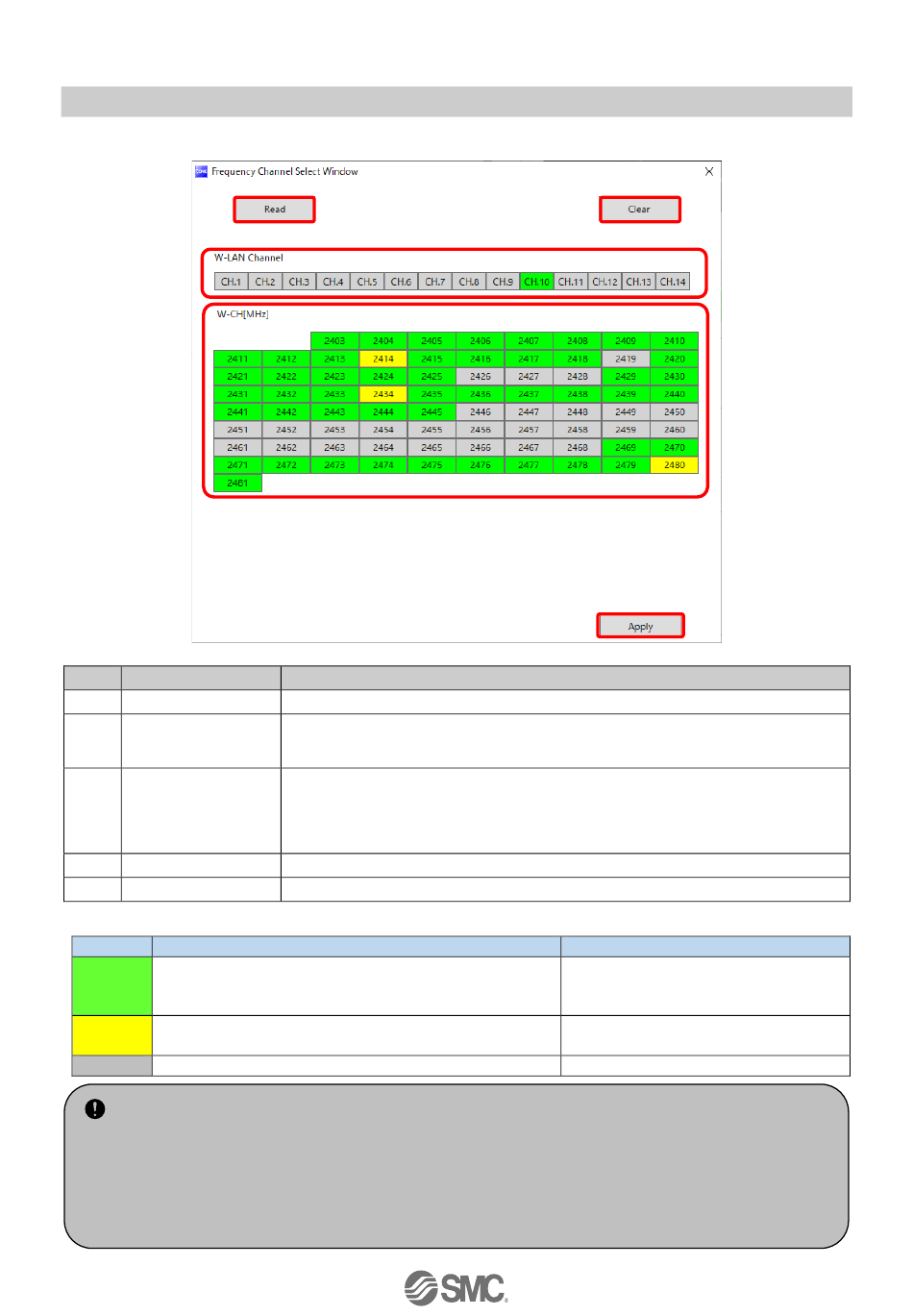

Set using the [Frequency Channel Select Window].
(1)
(2)
(3)
No.
Item
(1) Read button
W-LAN Channel
(2）
indicators
(3）
W-CH indicators
(4）
Clear button
(5）
Apply button
- Indicator colors
Color
Active frequency channel (W-CH area)
W-LAN channel that does not conflict with Active
Green
frequency channels (W-LAN Channel area)
Yellow Advertise channel
Grey Inactive frequency channel
- If advertise channels are included in the CH at the time of selecting a W-LAN Channel, they cannot
be selected. To select them, initialize the product or remove all the registered Remotes and then
configure F.C.S. before performing pairing.
- To use 5-7 frequency channels, neighbouring frequencies need to be separated by 3 MHz.
- To use 8-14 frequency channels, neighbouring frequencies need to be separated by 2 MHz.
- To use 15 frequency channels or more, neighbouring frequencies can be selected.
Retrieves the current channel selection configuration.
The W-LAN indicators make it possible to select frequency channels corresponding to
W-LAN channel at one time.
* In the example above, W-LAN Channel: CH.10 is selected.
The W-CH indicators make it possible to select frequencies for each CH.
* In the example above, frequencies 2419, 2426-2428, and 2446-2468 [MHz] are
unused Channels.
Note that frequencies 2446-2468 [MHz] correspond to (1) W-LAN Channel: CH.10
above.
Select 79 frequency channels by default.
Save the W-CH selection configuration.
Description
-39-
(4)
(5)
Description
Remarks
Cannot be set for inactive frequency
channels
