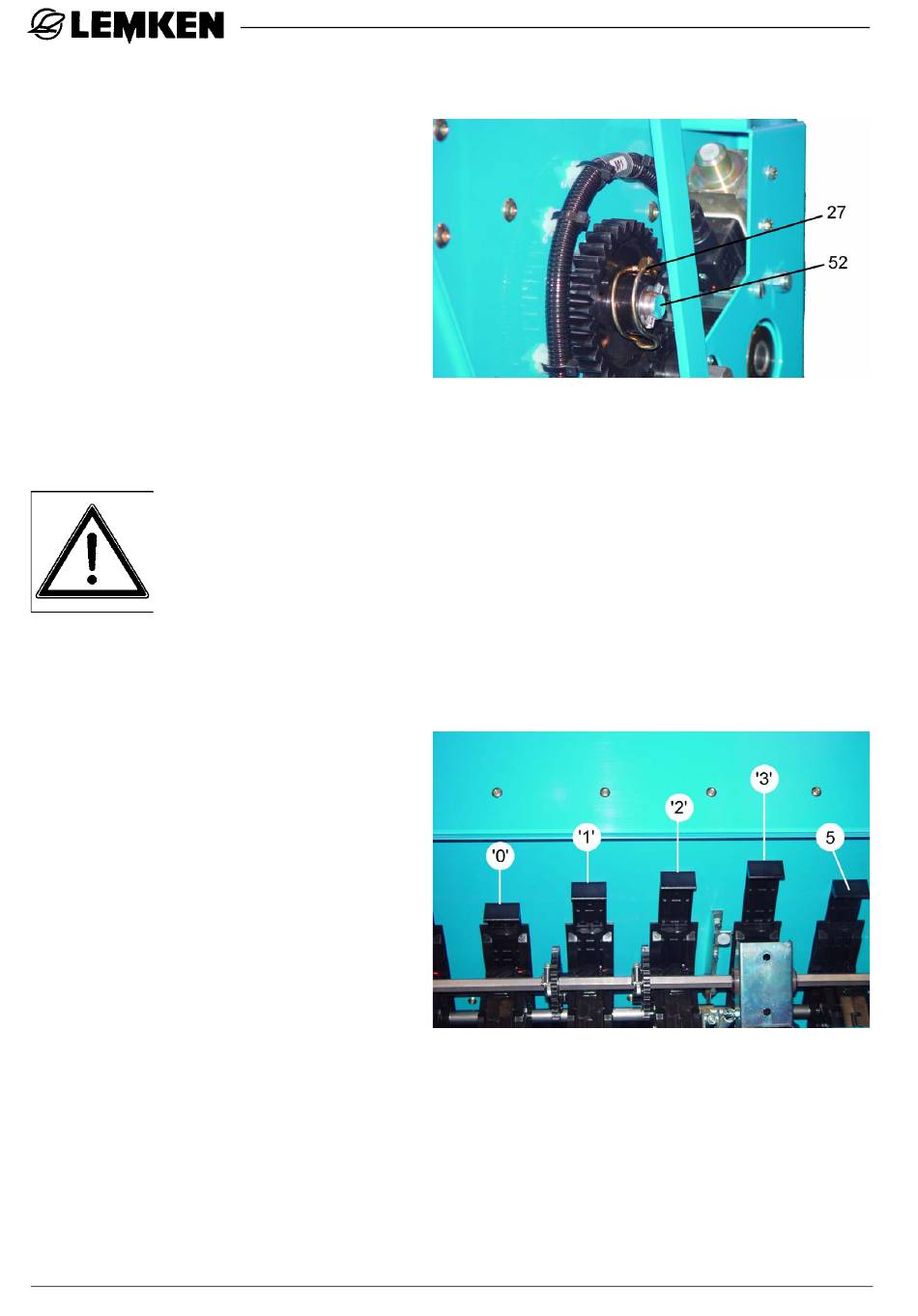

5.4.1 Agitator shaft

For fine seed, especially with en-
crusted rape, the agitator shaft (52)
must be switched off. For that the
linch pin (27) is removed from the
driving gear after dismounting the
protection cover.
The linch pin can be positioned in
the tool box of the soil cultivation implement.
Fit protection cover again and secure finally.
•Read and adhere to the General Safety Instructions!
•Never reach into the hopper during work!
•Never move the machine with opened cover!

5.4.2 Slides

By means of adjusting the slides (5)
in 4 steps the seed flow to the seed
wheel housings can be regulated.
0 = Position "CLOSED" for clo-
sing the required row.
1 = Position "1" for fine seed like
rape.
2 = Position "2" for all sorts of
crops and other big-grained seed.
3 = Position "3" for extreme awney and light seed like awney-wheat.
ATTENTION! Never position a slide into an intermediate position, as the
spring effect of the notch is lost and the seed quantity of the
seed drill will be unequal.
