6.2 Drilling depth

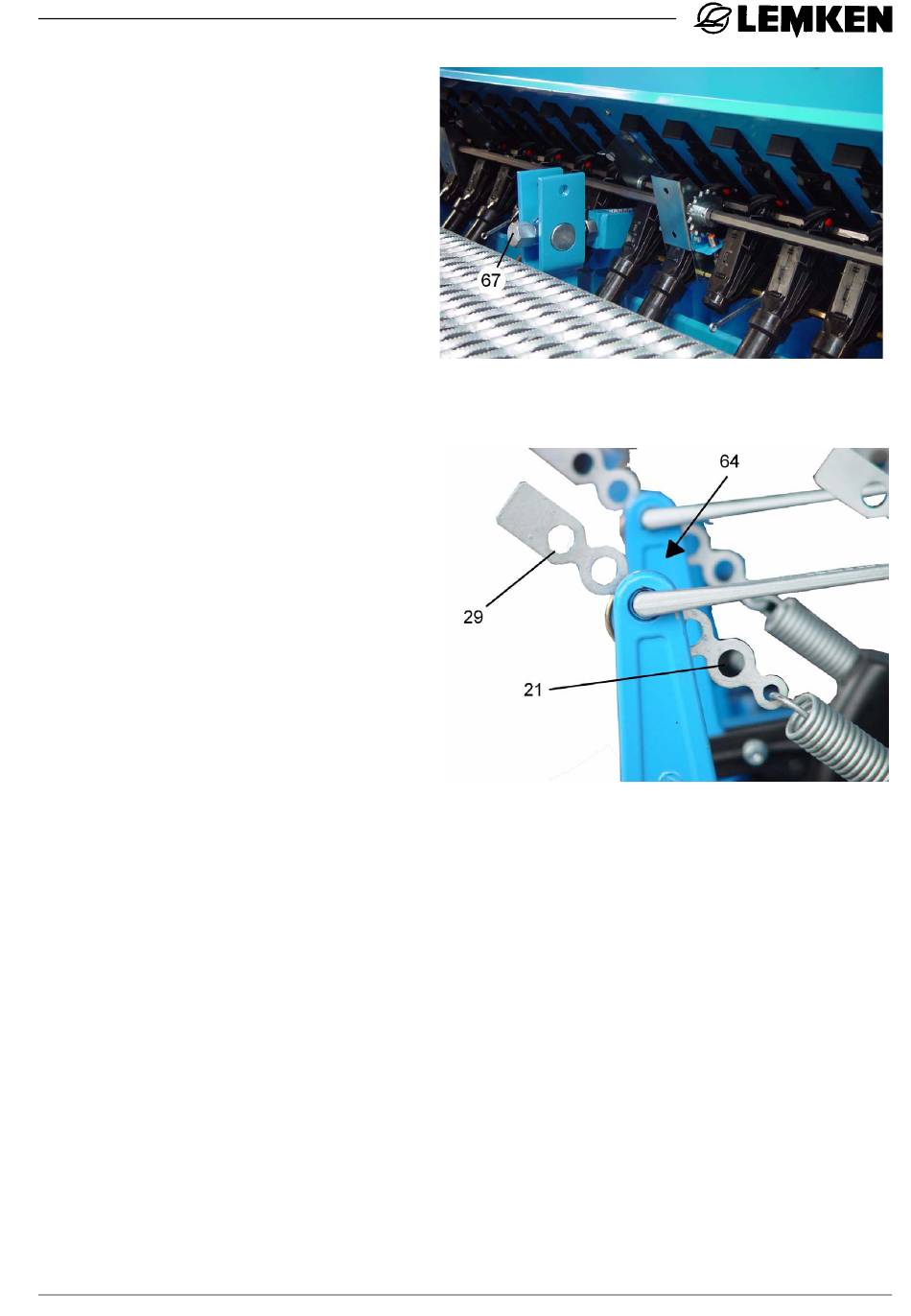

With the adjuster screw (67) the
drilling depth is adjusted.
Turn the screw clockwise
=> deeper drilling depth.
Turn the screw anti-clockwise
=> less deep drilling depth.

6.3 Coulter pressure

Each coulter row can be adjusted
individually with regard to the coul-
ter pressure by means of the coul-
ter pressure adjustment.
If a reduced coulter pressure is re-
quired, the rear hole (29) of the
spring adjustment (16) will be con-
nected with the stud (64).
The maximum coulter pressure
(apprx. 35 kg) will be reached when the front hole (21) of the spring adjust-
ment (24) will be connected with the stud (64).
In total 5 coulter pressure adjustments are possible.
Never use more coulter pressure than necessary!
ATTENTION! The right hand disc coulter of the double disc coulter is fitted to
the disc carriers by means of a bolt with right hand thread and
the left hand disc coulter by means of a bolt with left hand
thread.
