ATTACHING AND DETACHING THE IMPLEMENT

4.1

General Instructions

The seed drill Saphir 7 AutoLoad will be fitted to the three-point linkage of the
soil cultivation implement or the tractor by means of its three-point headstock
with couplings parts with drawbar (90) and top link pin (91).
The coupling parts are available in 3 versions:

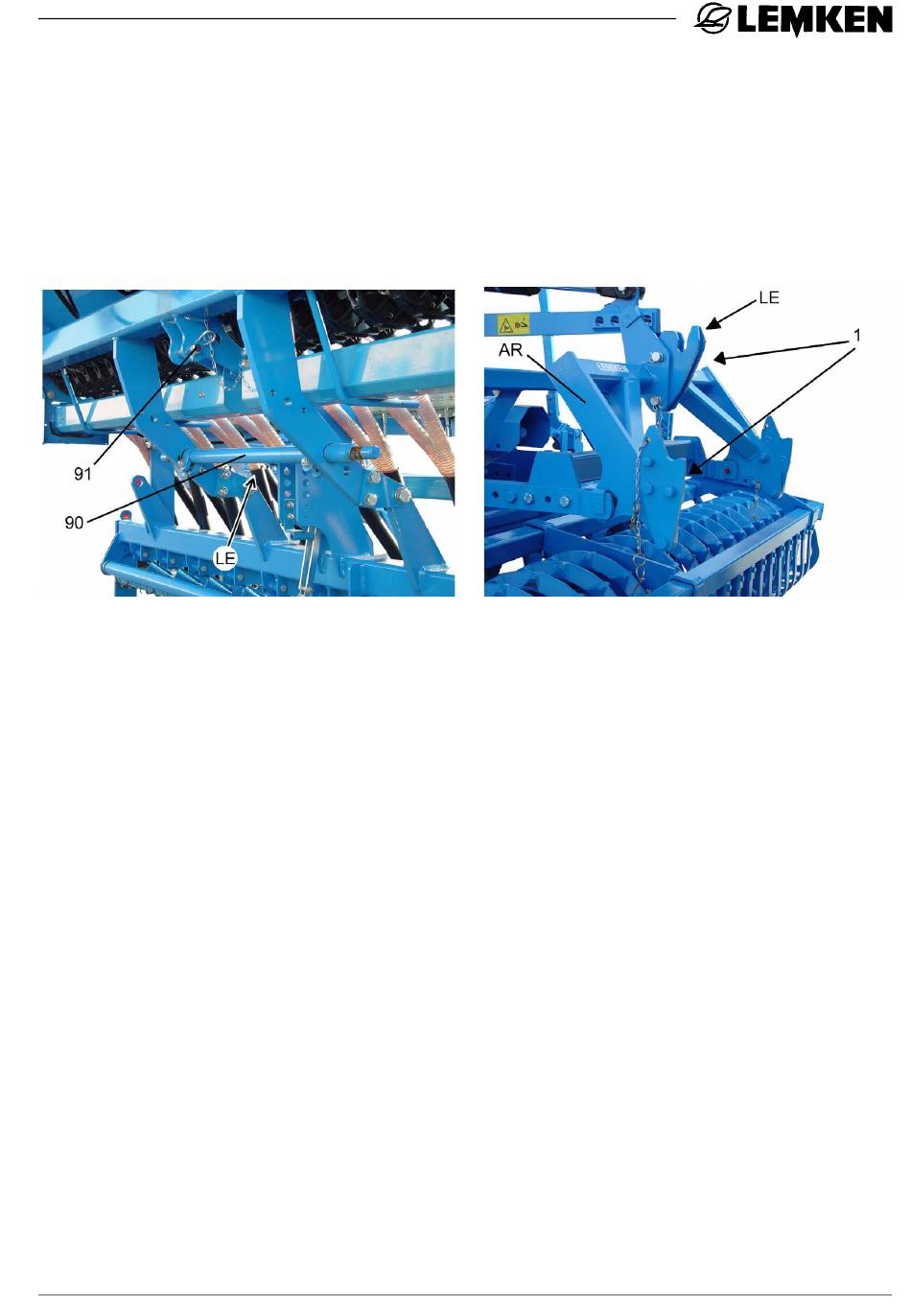

a) Coupling parts for LEMKEN-soil cultivation implements (LE)
With this version the seed drill can be fitted to a hydraulic three point linka-
ge of a LEMKEN soil cultivation implement, which has been equipped with
special attaching parts (1). The frame (AR) must be connected to the links
of the hydraulic three-point linkage, that
1. a parallel lifting is secured and
2. the attached seed drill is as close as possible to the soil cultivation im-
plement, without touching it.
