19 HOPPER LEVEL CONTROL

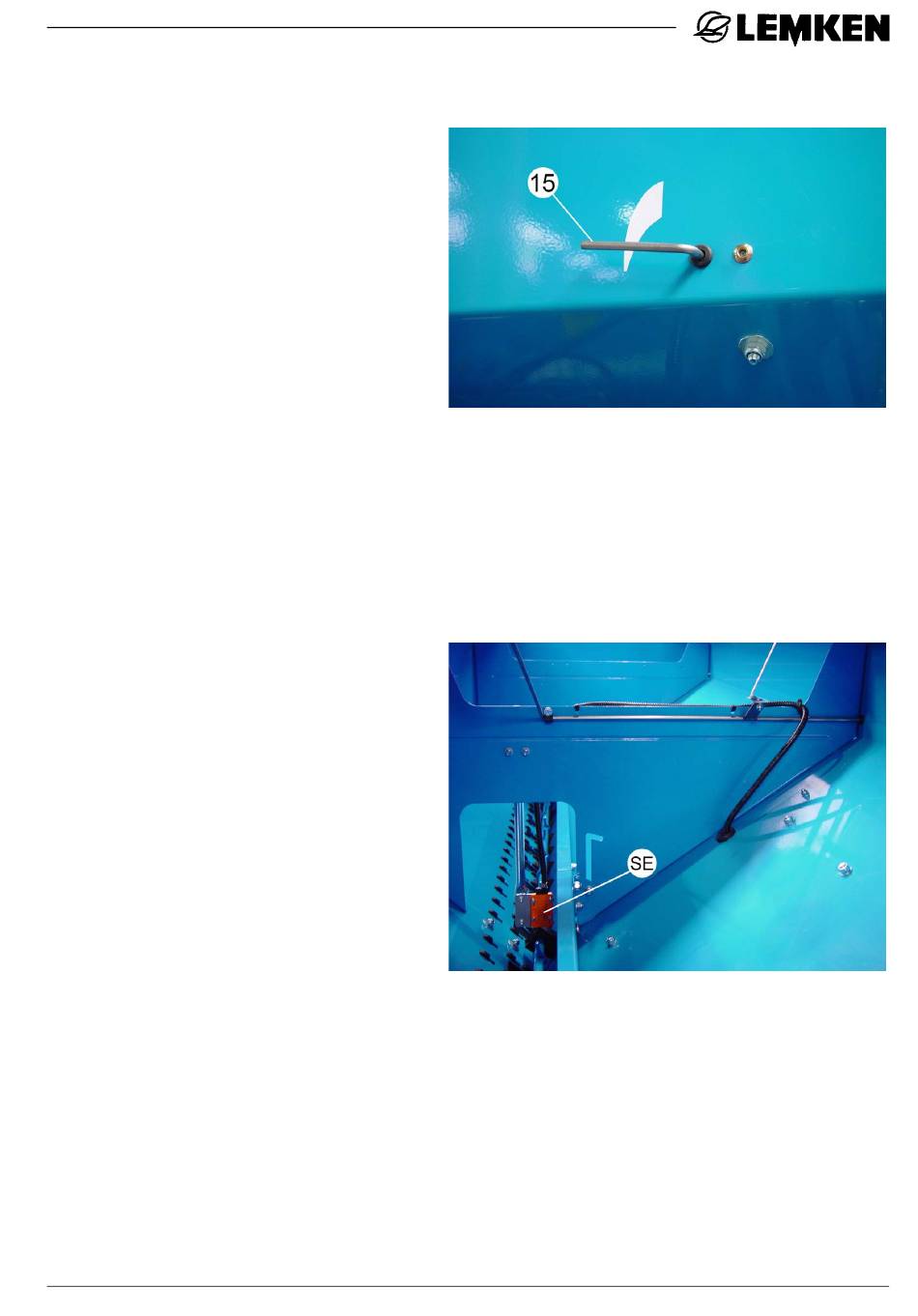

19.1 Hopper level indicator

The level indicator is fitted as
standard.
The seed level inside the hopper
will be shown by means of a indi-
cator (15).

19.2 Hopper level control, electronical

The adjustable electronical hopper level indicator with sensor is available as
option. Only possible in connection with electronic seed drill control or on-
board computer.
This indicator will be fitted on the
left side inside the hopper and can
be adjusted at the holder to the
desired seed rate left.
If required a second hopper level
control is available, which can be
fitted on the right side of the hop-
per.
WARNING! After each adjust-
ment the previously loosened screw must be tightened again!
As soon as there is no seed around the sensor, an acoustical and audible
alarm will be given by zhe operation terminal.
67
