HARROWS

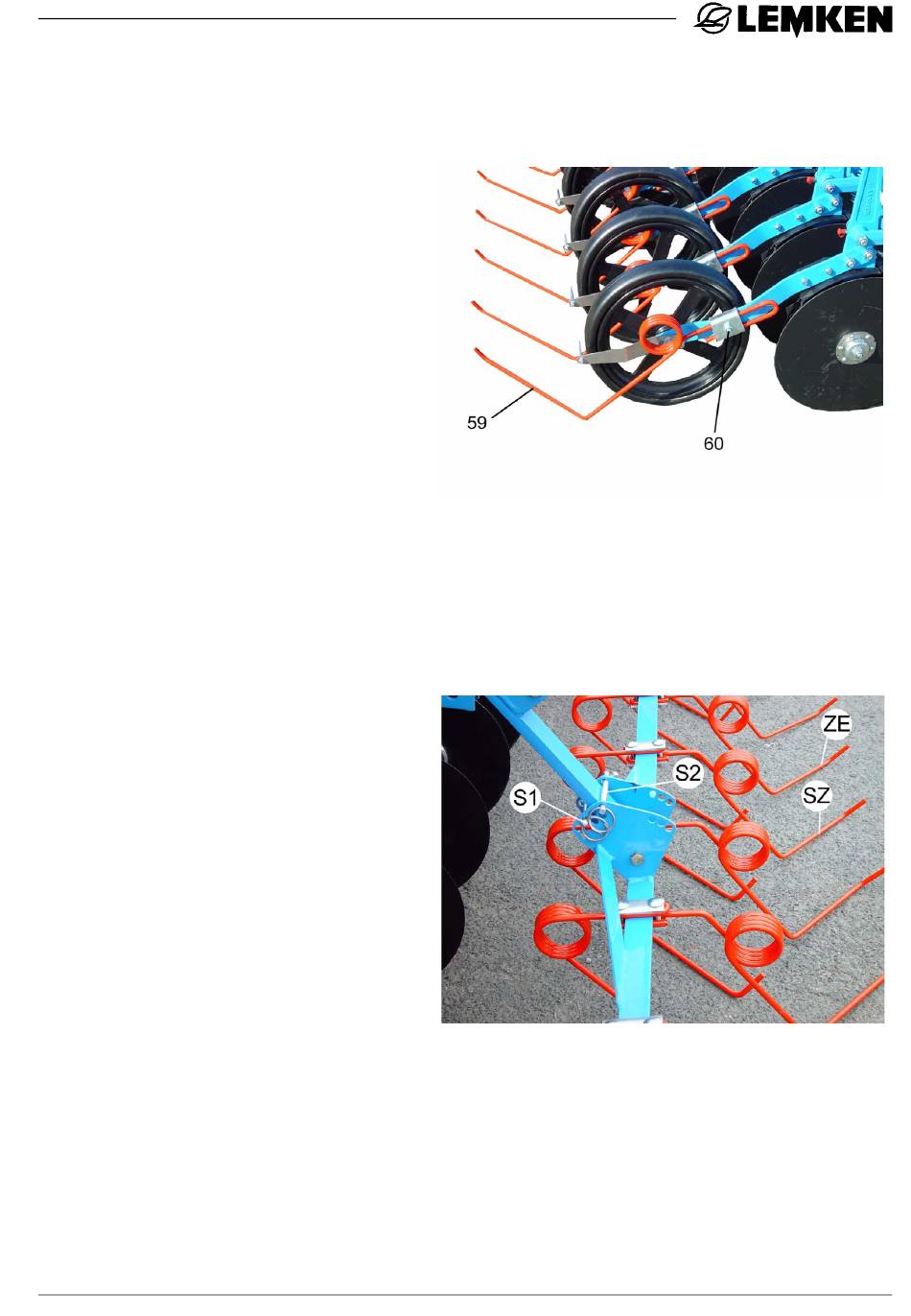

The harrow tines (59) will be fitted

to the wheel stalk of the rear depth

guiding rollers.

After loosening the bolt (60), they

can be adjusted in depth separa-

tely.

They should be adjusted so deep

that the seed is covered well by

soil.

IMPORTANT: In transport position as well as in parked position on the farm,

the sharp tine ends must be covered by a protection devive.

The S-harow together with the

centre frame (RA) will be fitted to

the lateral carrying plates. The po-

sition of the harrow will be adju-

sted by means of the pins (S1) and

(S2).

The harrow tines (SZ) should be

set a little bit deeper at the rear

than in front during work. Due to

that it will be avoided that the harrow tines will wear first in front and the rear

tine ends (ZE) fall off.
