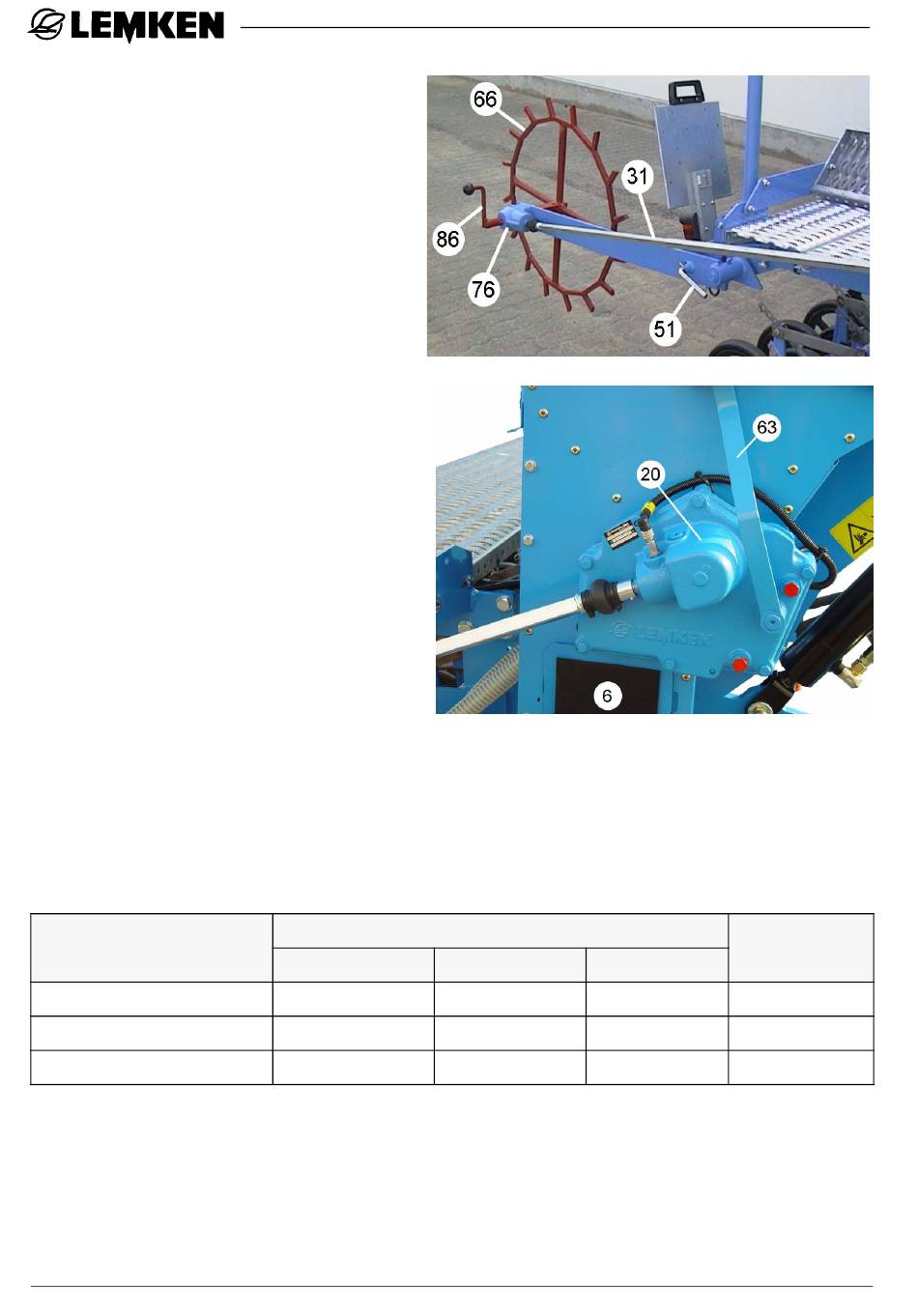

g) By means of turning the cali-
bration lever (86) fill the cali-
bration tray two or three times.
h) Adjust the gear box (20) accor-
ding to the seed table for the
first calibration test.
i) After that empty the calibration
trays (6) and fit them again.
The display of the electronic seed
drill control shows the tramline
rhythm.
If this rhythm is equal to the cur-
rent track (for example 3:3 or 5:5),
the rhythm must be switched for-
ward or backwards. See instruc-
tion book of the electronic seed
drill control.
Now the seed drill is ready for the
calibration test. See operating instructions of the electronic seed drill control.
The following table shows the required number of calibration lever turns for
the the 1. calibration test.
Working width of the
Saphir 7 AutoLoad
250 cm
300 cm
400 cm
ATTENTION! As the calibration test has been carried through in standing po-
sition, the corresponding field conditions and the slippage of
the drive wheel are not considered. Therefore it is recommen-
ded to carry through the automatic calibration of the drive
36
Turns of lever
1/10 ha 1/40 ha
159 39,8
132,5 33,1
99,4 21,8
Distance in
cm/pulse
1/50 ha
31,8 26,74
26,5 26,74
19,9 26,74
