12.4 Adjustment of the tramline width

The tramline width must correspond to the track width of the tractor which will
be used with a sprayer or fertiliser spreader.

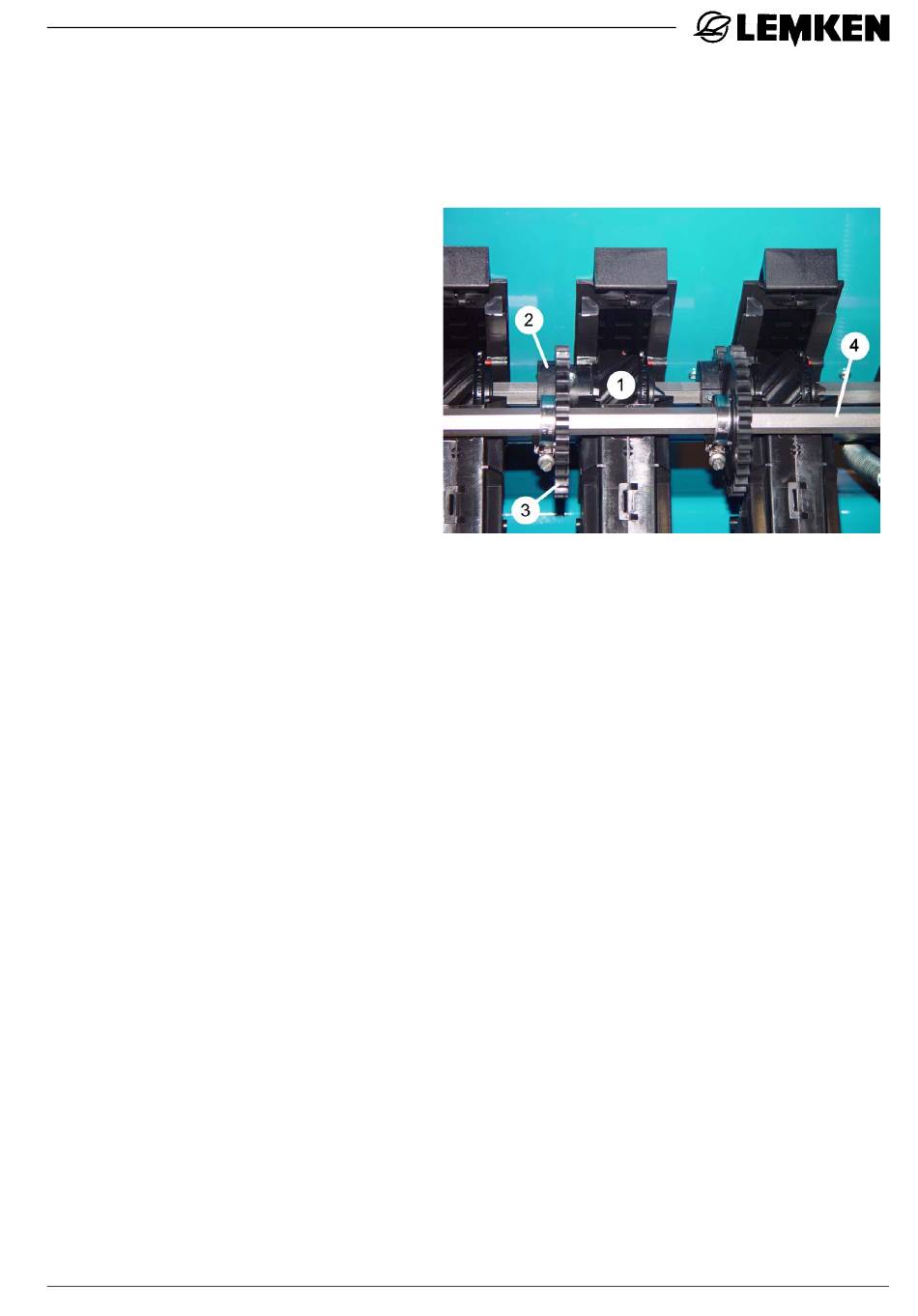

Starting from the middle of the
seed drill one must measure a half
track width for example in connec-
tion with a track of 1,5 m = 0,75 m
to the left and to the right. Then
the two seed coulters being pla-
ced directly in that distance to the
middle must be chosen. Here
switchable seed wheels (1) with
gear (2) for making tramlines must
be fitted.
If not stated those switchable seed wheels (1) for the tramline mechanism are
connected to the gears (3) of the shaft (4) which are required for a tractor
track of 1,5 m. For a different track these switchable seed wheels (1) for the
tramline mechanism must be fitted and made switchable in accordance to
that.
