10 WHEEL PRESSURE INCREASING DEVICE

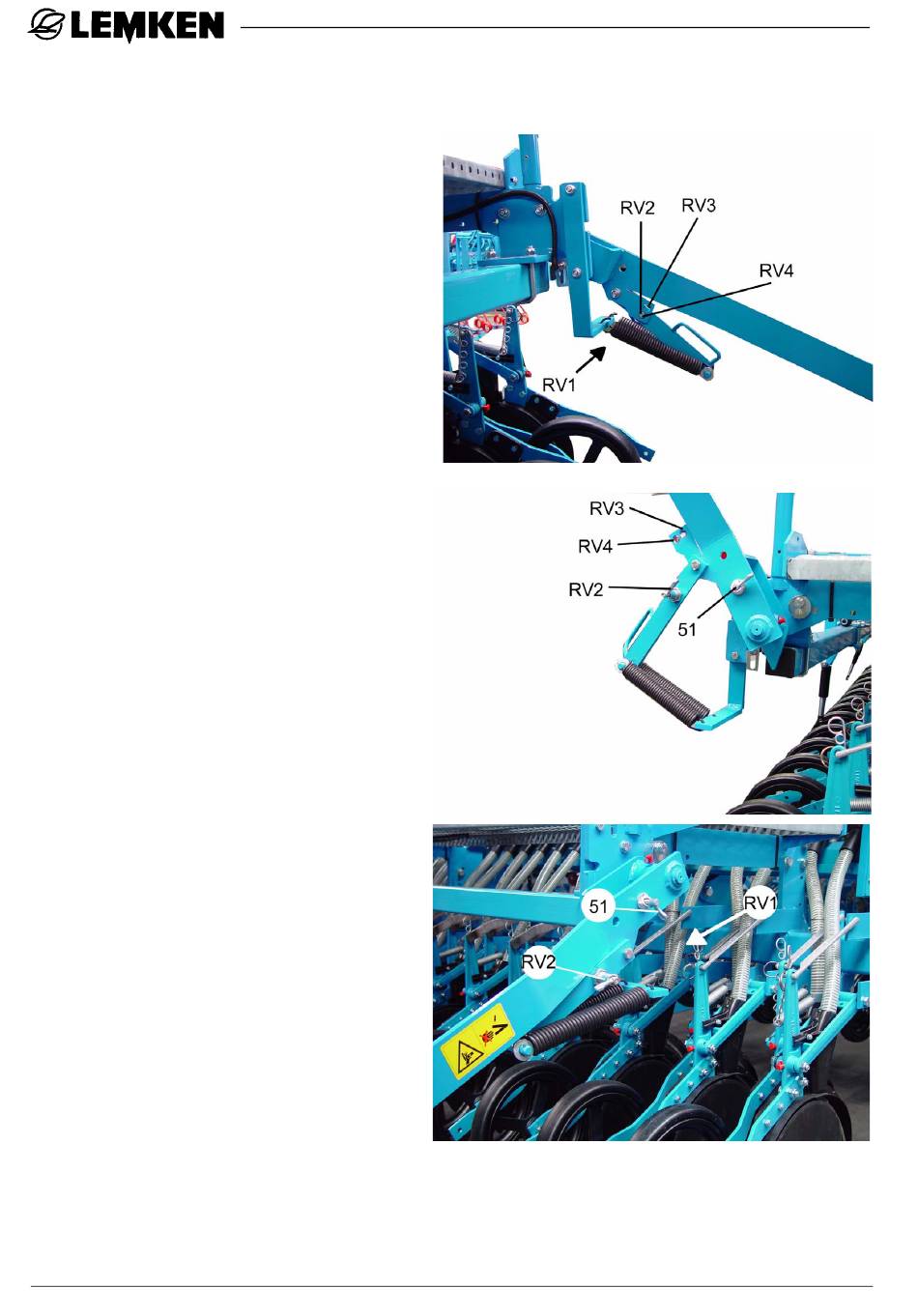

If the drive wheel has too much
slippage on soft ground, then the
contact pressure can be
increased by means of the wheel
pressure increasing device (RV1).
Two pressure positions are
possible. For this purpose the bolt
(RV2) must engage in hole (RV3)
or (RV4).
If no additional wheel pressure is
desired, the bolt (RV2) can be
unlocked.
The bolt must also be unlocked
when the drive wheel is in
transport position or shall be
turned to the horizontal calibration
position.
46
