a) Move out laterally both calibrati-
on trays (6) and move them in
again with the opening to the
top. Clean the trays first when
they are dirty.

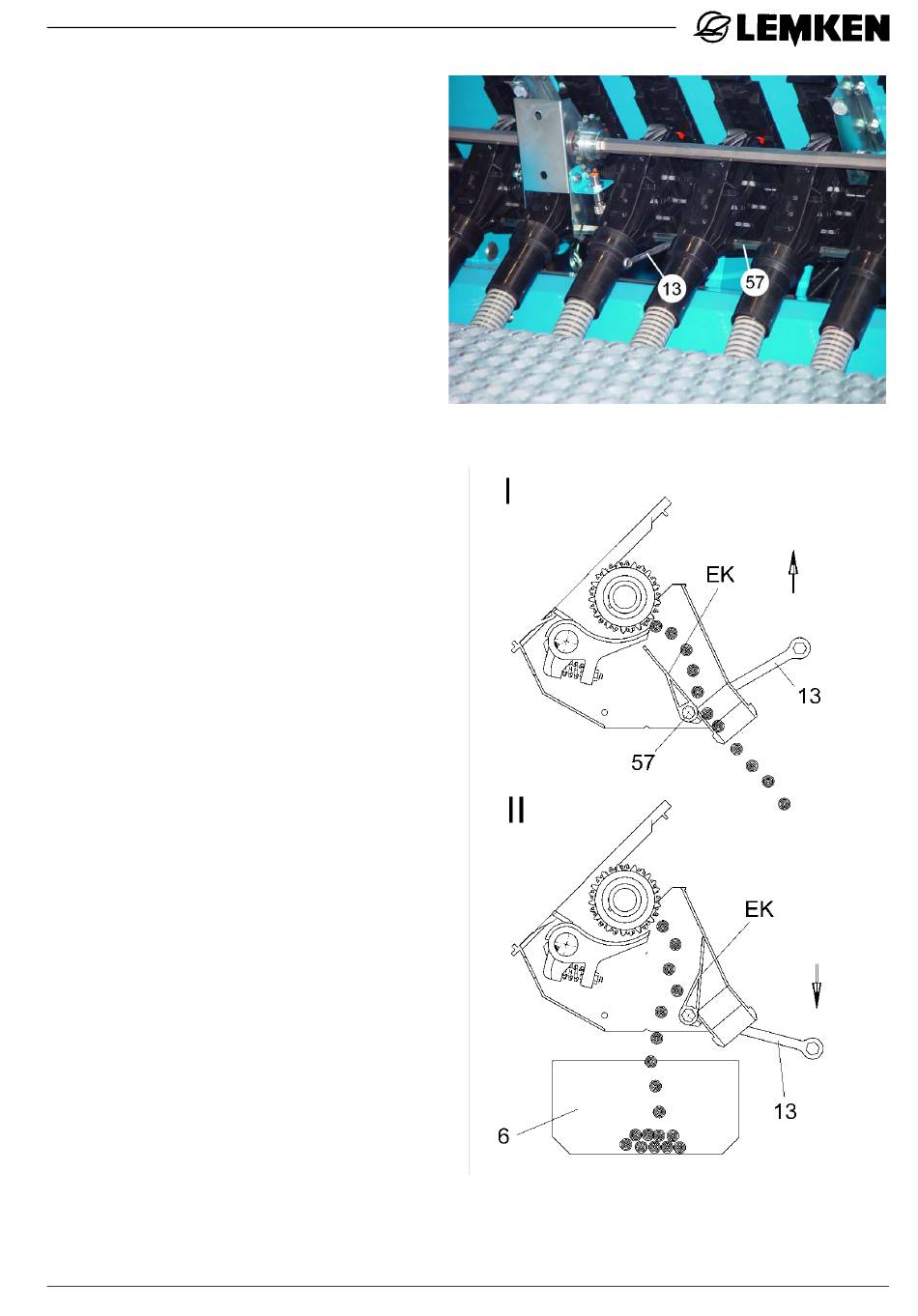

b) Set emptying flaps to the calibra-
tion position by means of pres-
sing down the emptying lever
(13) so that the hexagon shaft
(57) turns.
c) Adjust gear box to maximum
position = 150, with peas and
beans to 80.
d) Set drive wheel to calibration
position and empty the hopper
by means of turning the dirve
wheel.
e) Finally set emptying flaps to
sowing position by means of
pulling up the emtying lever
(13) and therewith turning the
hexagon shaft (57), when no
further calibration test should
be made.
I = sowing position
II = calibration position (emptying
position)
