4.3 Detaching seed drill

The seed drill may only be parked
with empty hopper, and that on a le-
vel and firm ground.
Dismounting should be done on
firm and level ground, generally.

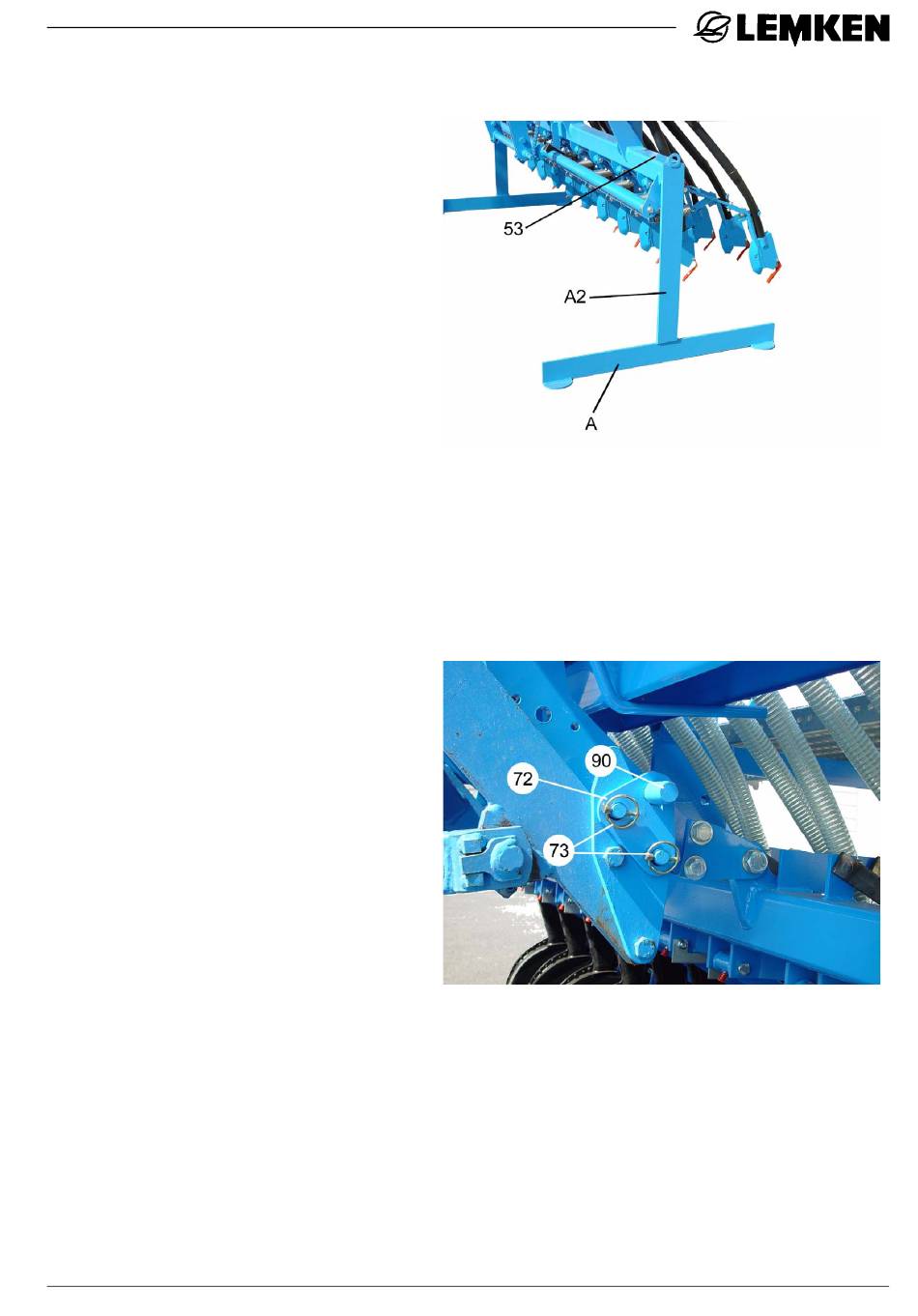

Before dismounting of the seed drill
the stands (A2) must be pushed ful-
ly into the frame tube (53) on both
sides until their stop.
IMPORTANT: The stands are marked with R and L. That side marked with an
R must be fitted to the right hand slide and that side marked
with an L to the left hand side of the frame tube of the coulter
bar. The long side (A) of the stand must point to the front.
Remove all electric cables and hy-
draulic hoses and place them on
the seed drill.
Remove pin (73) and securing
lashing (72).
With the version with coupling
parts for foreign models or for solo
use, the instructions of the corres-
ponding operating manual (fo-
reign model or tractor) must be adhered to.
Lower seed drill by means of the hydraulic three point linkage so that the
stands touch the ground. Lower hydraulic three point linkage further and drive
a little bit for and back with the tractor until the catch brackets respectively the
catching hooks of the hydraulic three point linkage are separated from the Sa-
phir 7 AutoLoad.
23
