12.5 Switching off of further rows

The width of the track will be determined by the row distance and the number
of switched off seed wheels. If wider tracks are desired than can be reached
with 2 rows, a third row can be fitted.

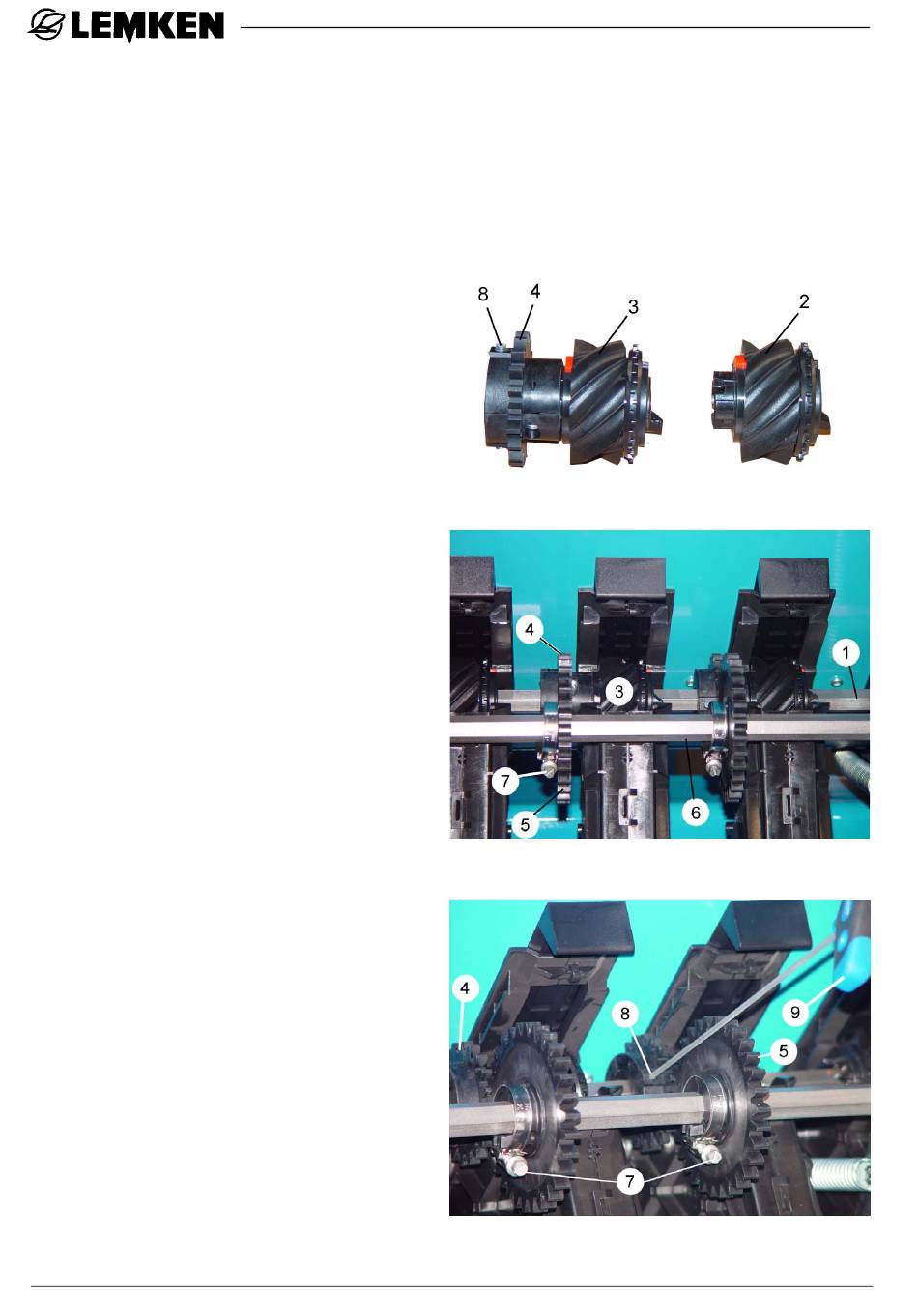

- Dismount seeding shaft (1) as
descriped in section „Changing
seed wheels" and replace seed
wheels (2) against switchable
seed wheels (3) with gear (4)
and that where further rows
should be switched off.
- After that fit seeding shaft (1)
as described
„Changing seed wheels".
- Both opposited stud screws (8)
of the switchable seed wheels
(3) with gear (4) must be scre-
wed-out by 1 to 2 mm by
means of an allan key (9). Now
the seed wheels can be turned
freely by hand = free running position.
- After that shift additional gears
(5) on the intermediate shaft
(6) and fix them in the required
position to the gears (4) of the
seed wheels (3) and fix by me-
ans of the clamps (7).
56
