8.3.1

Wiring with OSSD

OSSD = output signal switching device

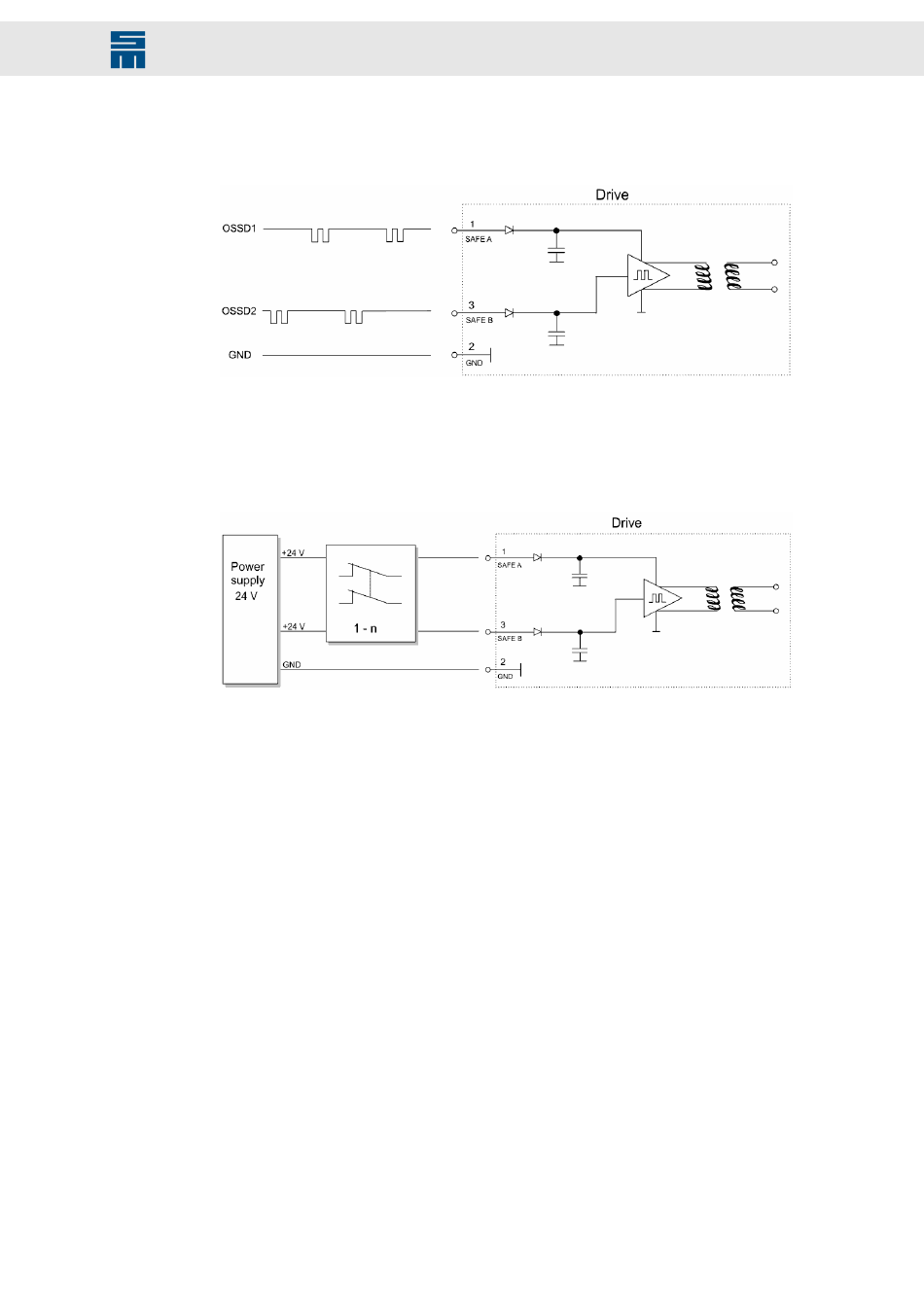

Fig. 10: Safety circuit (STO) - wiring with OSSD
8.3.2

Wiring without OSSD

OSSD = output signal switching device
Fig. 11: Safety circuit (STO) - wiring without OSSD
Drive System SD2S - Hardware Description 0362x49xx / 0362129xx
Connection Examples
49
