X15 – Digital Outputs / NAMUR sensor /
PULSE IN / Digital field plate / GMR
8.4.1
Digital Outputs
The meanings of the digital outputs can be defined by parameters. Every output can
be loaded with 100 mA.

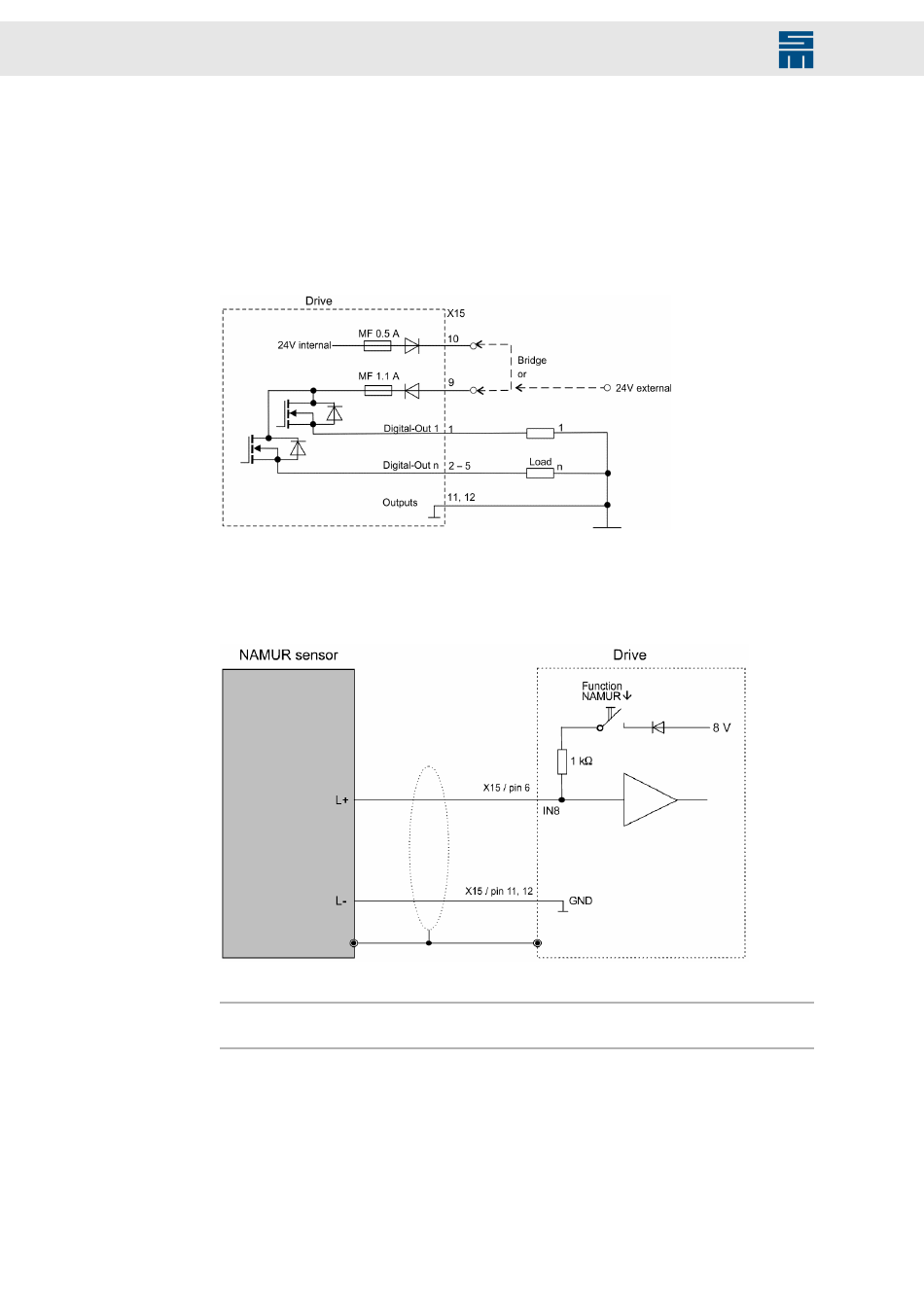

Fig. 12: Digital Outputs
8.4.2
NAMUR sensor
Fig. 13: NAMUR sensor
Note
As required by the NAMUR standard the switching threshold for the input is 2.5 mA.
50
Drive System SD2S - Hardware Description 0362x49xx / 0362129xx
