6.1

Dimensions

The gray-colored connectors are only available on device variant 0362x49xx.

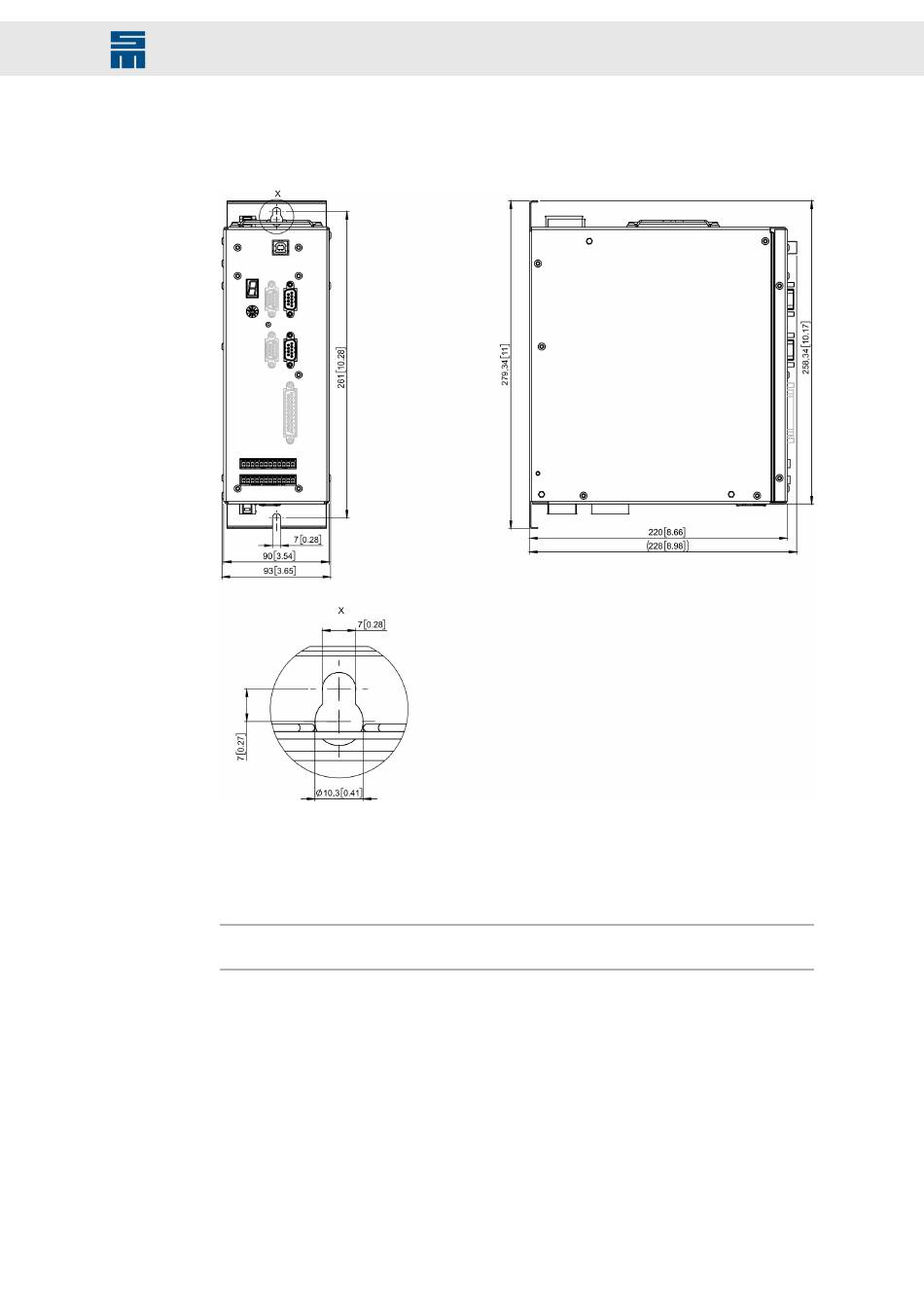

Fig. 4: Dimensions of 0362x49xx / 0362129xx in mm [inch]
6.2

Rear Panel Mounting

Note
SD2S devices must be installed in a switch cabinet.
The device is designed for vertical rear panel mounting. Other setup positions are pos-
sible but you must consult SIEB & MEYER before.
Suitable fastening screws: M6x12 according to ISO 4762
▶
strength class: 8.8
▶
washers: M6 according to ISO 7091 (use is recommended)
▶
minimum engagement depth in the mounting plate: 8 mm for steel plate, 15 mm for
aluminum plate
