8.5
X16/17 – Digital Inputs
Digital inputs at X16
The meanings of the digital inputs can be defined by parameters.

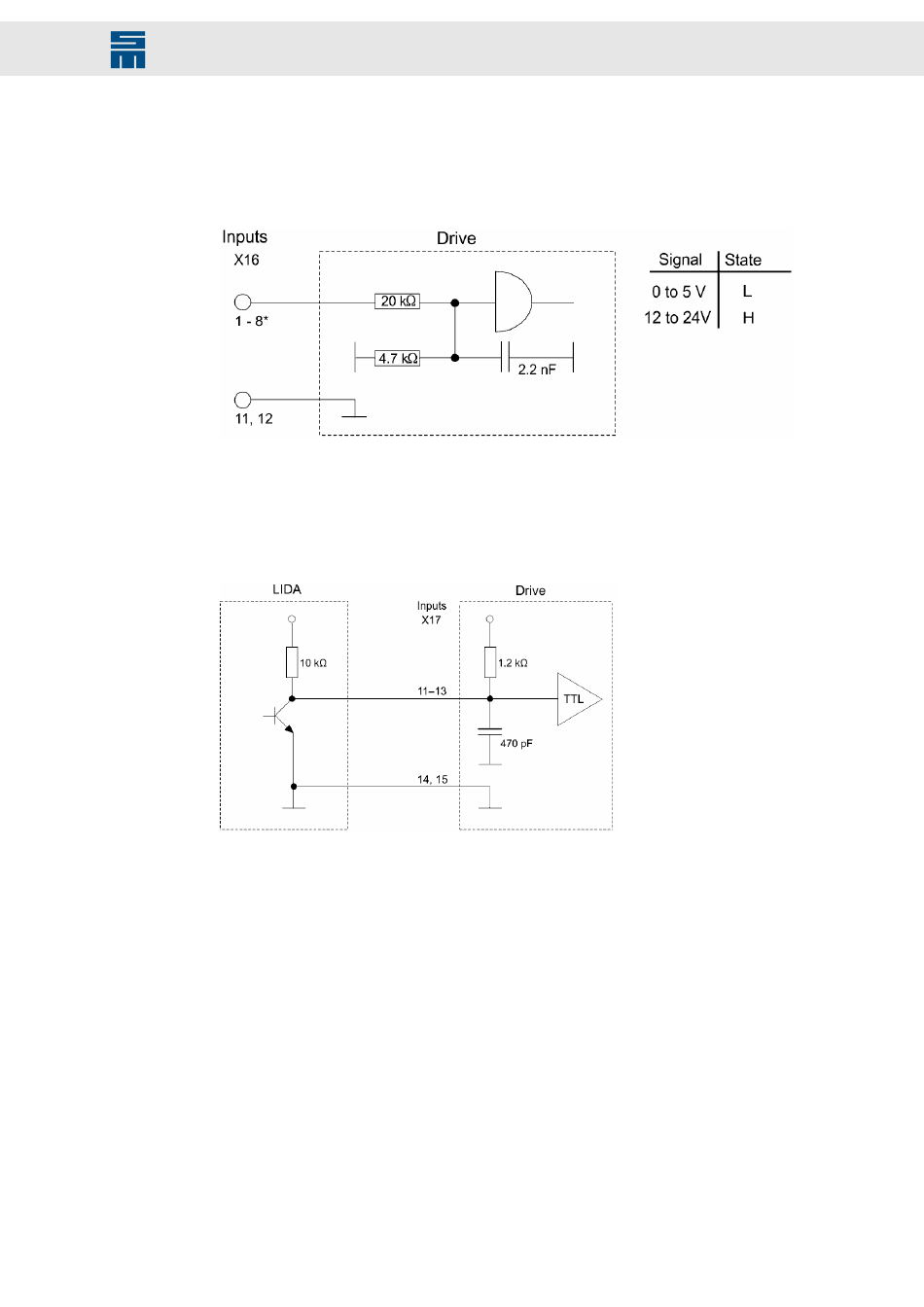

Fig. 17: Digital inputs at X16
[*]
Yet another digital input is located at the connector X15 (pin 6).
Digital inputs (5 V) at X17
The following figure is a wiring example for a 5 V limit switch:
Fig. 18: Digital inputs at X17
Drive System SD2S - Hardware Description 0362x49xx / 0362129xx
Connection Examples
53
