8.2 X7 – Encoder Emulation

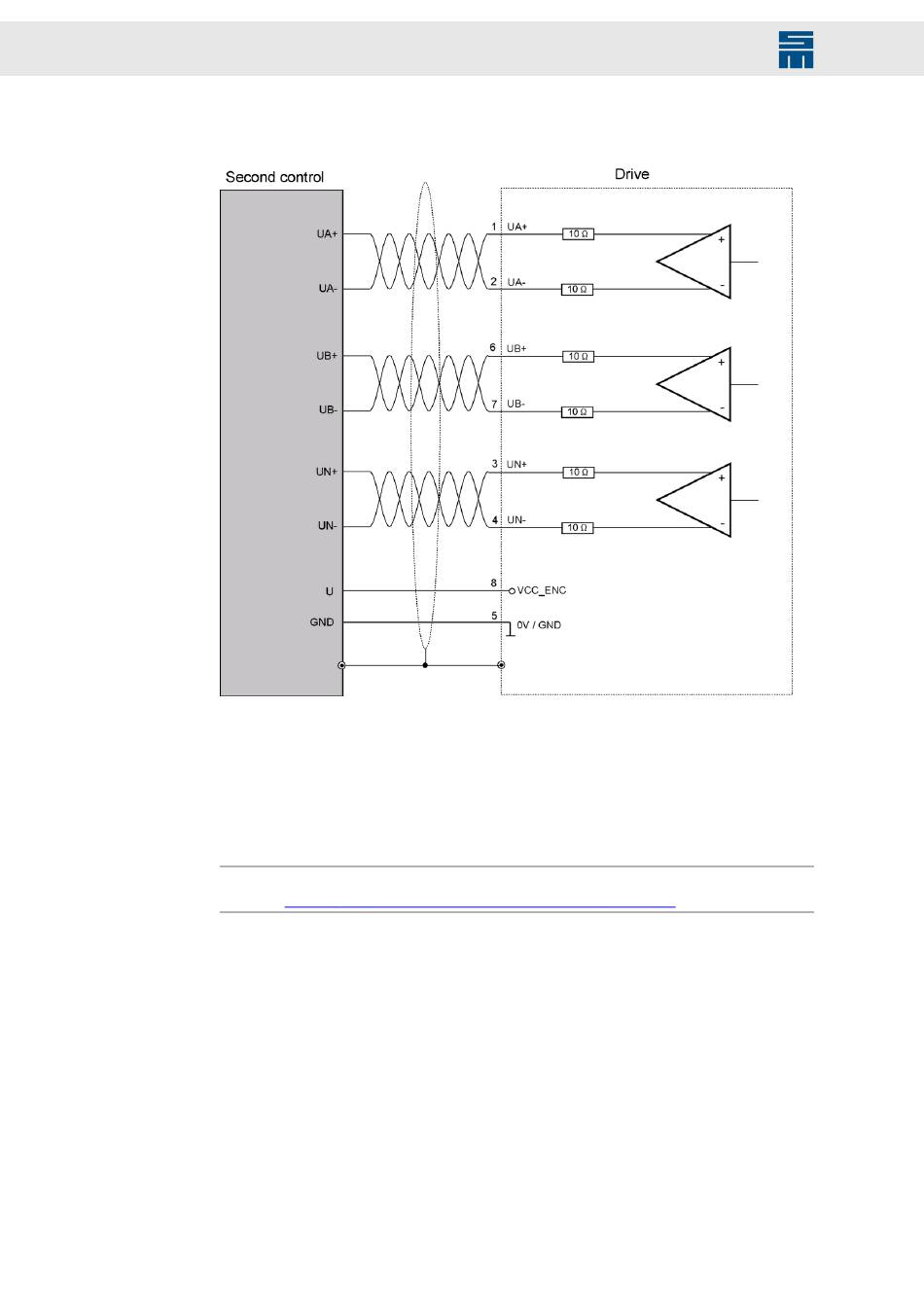

Fig. 9: Encoder Emulation
The transmission meets the requirements of the standard TIA/EIA-422-B with a voltage
differential of at least. ±0.9 V.
8.3

safety circuit (STO)

Note
See also chapter 12 "Safety Circuit / Restart Lock (STO)", page
48 Drive System SD2S - Hardware Description 0362x49xx / 0362129xx
87.
