Connection Examples

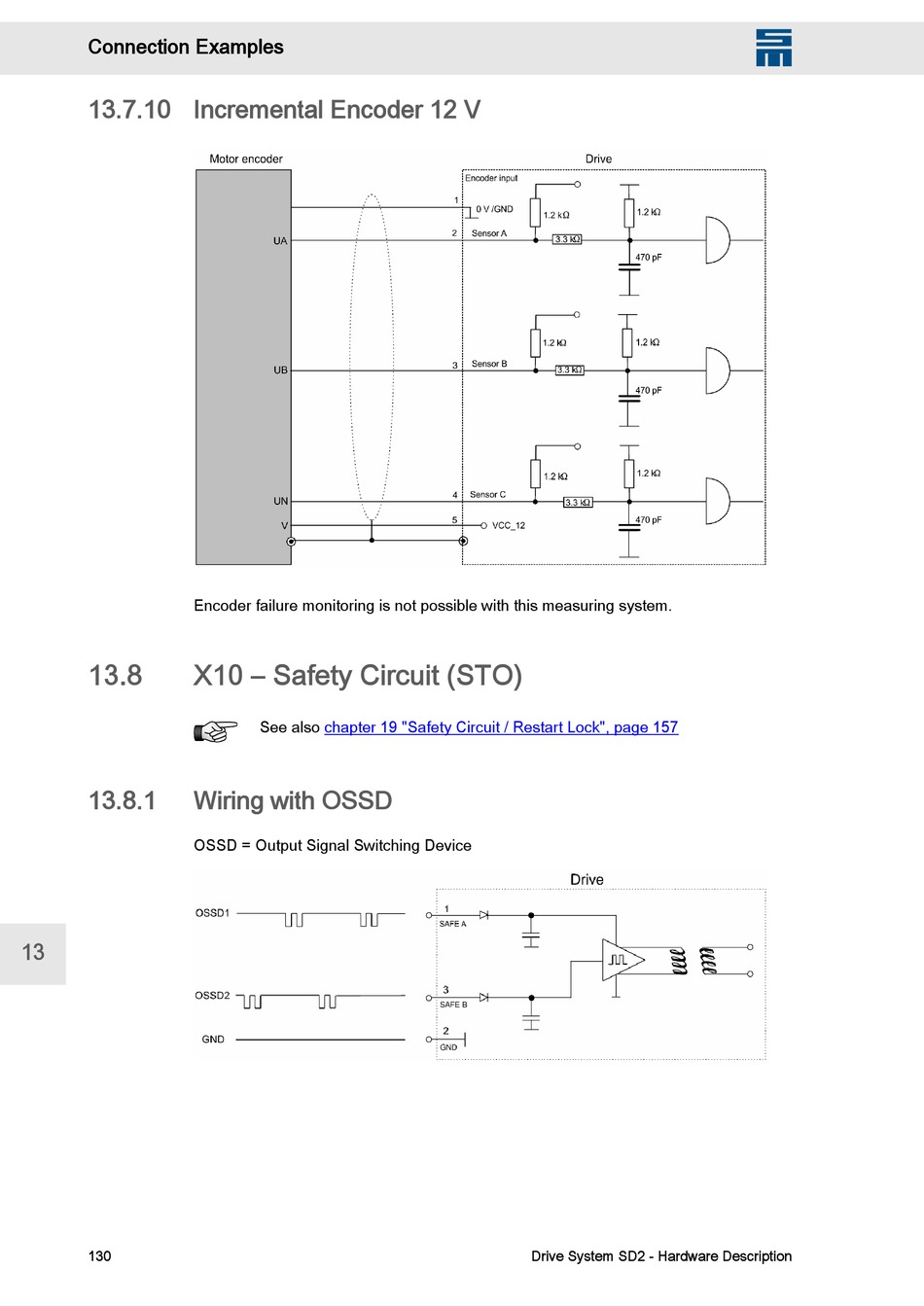

13.7.10 Incremental Encoder 12 V
Encoder failure monitoring is not possible with this measuring system.
13.8
X10 – Safety Circuit (STO)
13.8.1
Wiring with OSSD
OSSD = Output Signal Switching Device
13
130
See also
chapter 19 "Safety Circuit / Restart Lock", page 157
