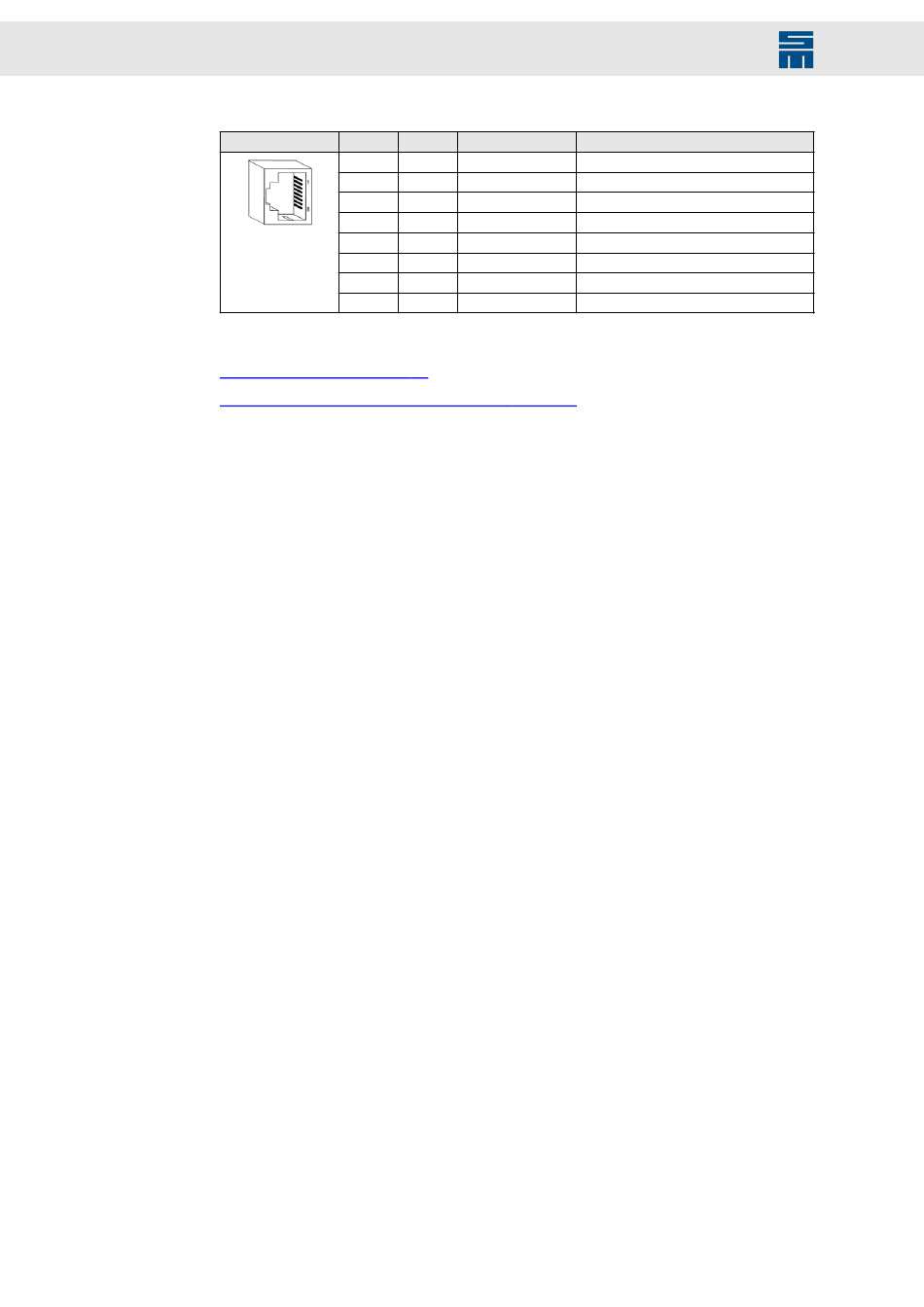

Connector Pin Assignment
2 × 8-pole female RJ45 connector
X64/X65
Related topics
X64/X65 – EtherCAT, page 73
LED Status Display: EtherCAT Connection, page 75
46
Pin
I/O
Name
1
O
TX+
2
O
TX−
3
I
RX+
4
n.c.
5
n.c.
6
I
RX−
7
n.c.
8
n.c.
Drive System SD2S - Hardware Description 0362x49xx / 0362129xx
Description
Transmit data +
Transmit data −
Receive data +
Receive data −
