8.6.6

Hall Sensor 12 V

Voltage (VCC) varies depending on the set measuring system
When the connected measuring system is operated under a wrong voltage, it can be
damaged.
→ Check that you have chosen the right measuring system in the software before
connecting.

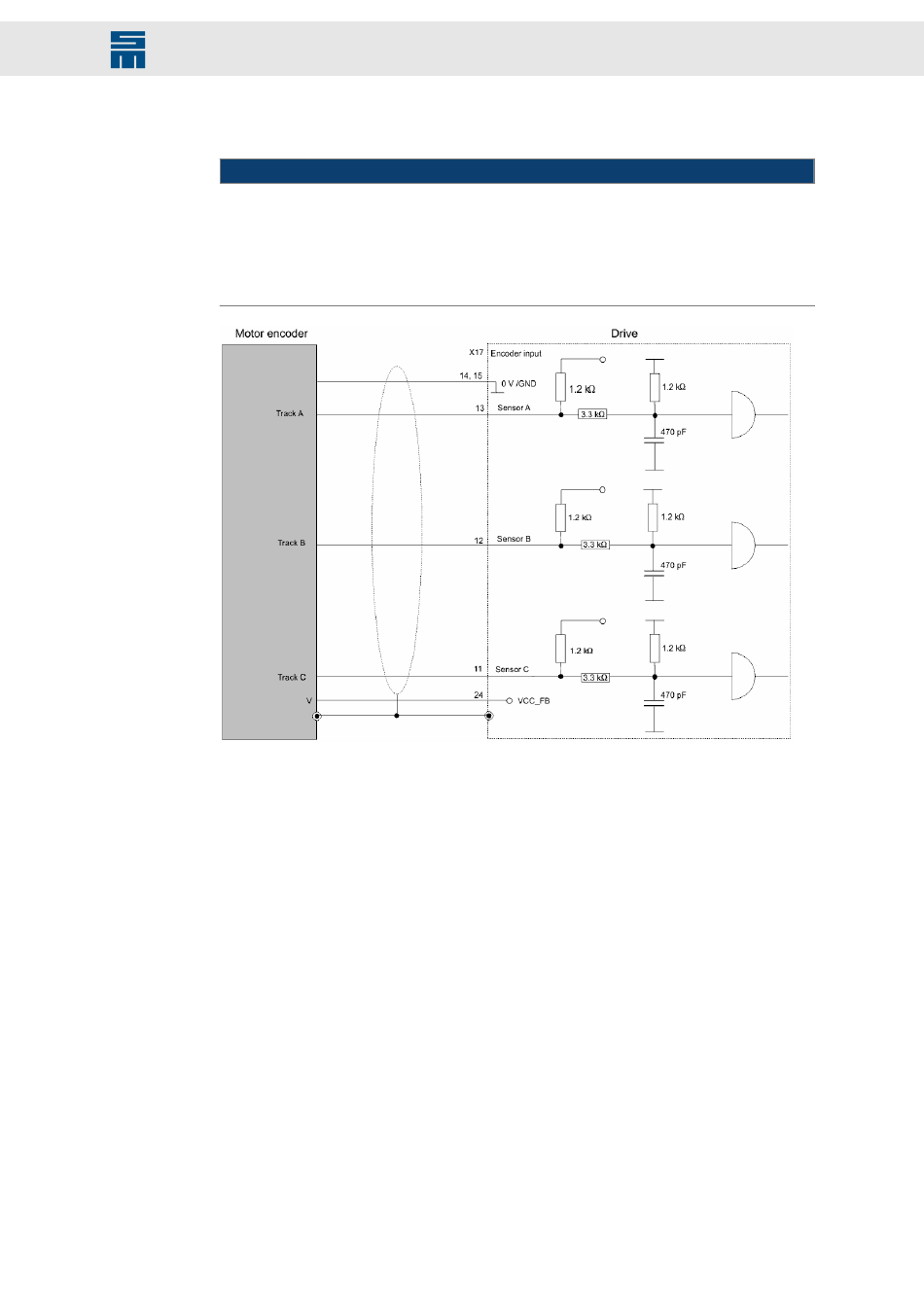

Fig. 24: Hall Sensor 12 V
When this meysuring system is parameterized VCC_FB is switched to 12 V.
Drive System SD2S - Hardware Description 0362x49xx / 0362129xx
Connection Examples
NOTICE
59
