X26/X27 - Servolink; X44 - Power Supply - SIEB & MEYER SD2S Hardware Description

Connection Examples
The number of bus nodes is also limited by the specification according to ISO 11898.
The limiting value is between 32 and 100 bus nodes. depending on the used cable and
transmission rate. For further information on the maximum number of bus nodes refer to
the document "CAN Physical Layer" by the user organization CiA e. V.
8.9 X26/X27 – SERVOLINK

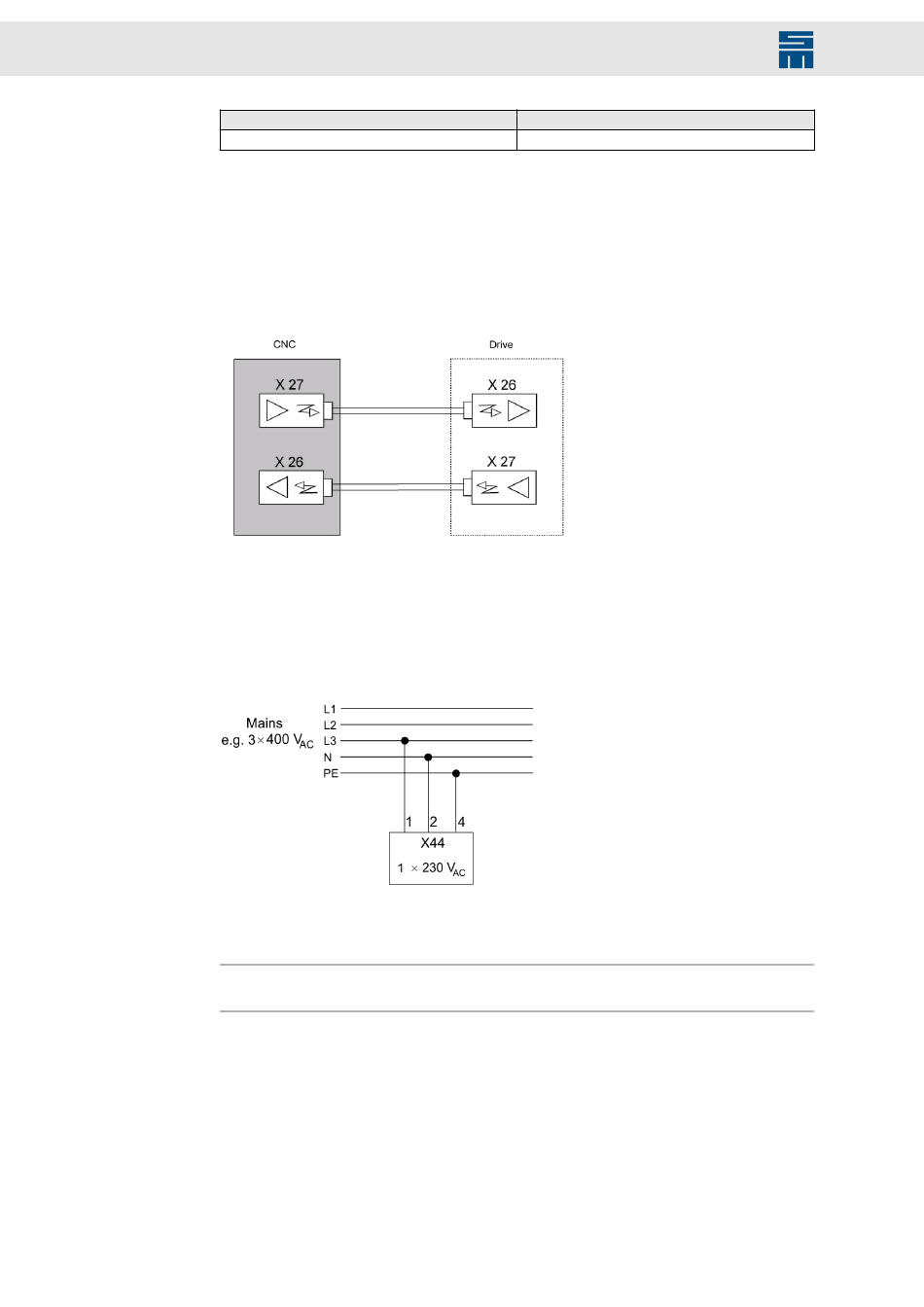

Fig. 38: SERVOLINK 4
8.10 X44 – Power Supply
1-phase power supply of the device variants 0362x29xC / 0362x49xC
3-phase power supply of the device variants 0362x29xC / 0362x49xC
Note
3-phase power greater than 3 × 230 V
70
Baud rate
1000 kBd
is only possible with a mains transformer.
AC
Drive System SD2S - Hardware Description 0362x49xx / 0362129xx
Max. bus length
25 m
