Field Plate - SIEB & MEYER SD2S Hardware Description

8.6.8

Field Plate

Voltage (VCC) varies depending on the set measuring system
When the connected measuring system is operated under a wrong voltage, it can be
damaged.
→ Check that you have chosen the right measuring system in the software before
connecting.

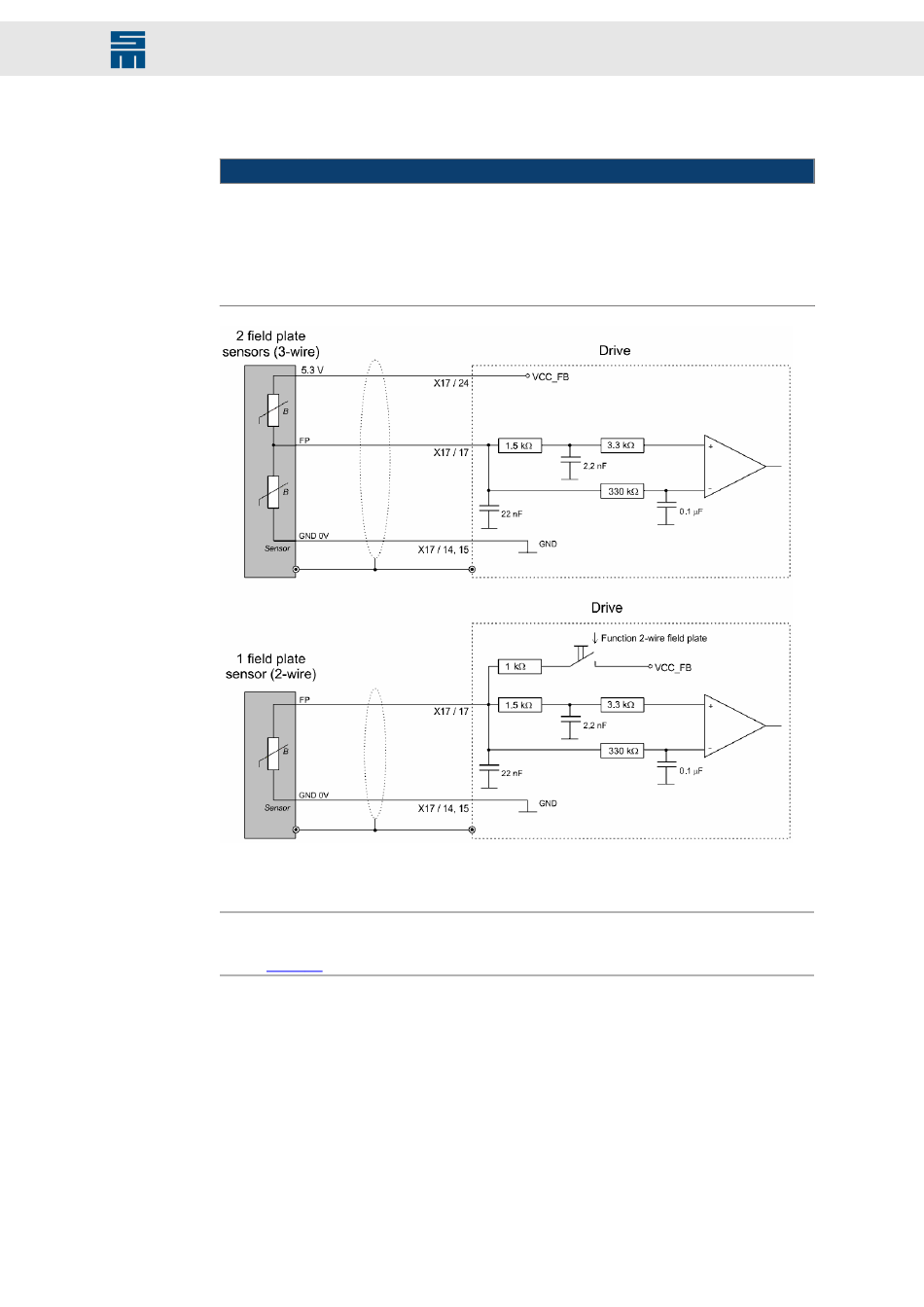

Fig. 26: Field plate − 2-wire and 3-wire
When this meysuring system is parameterized VCC_FB is switched to 5.3 V.
Note
A digital field plate (e.g. GMR sensor) is connected to X15 (pin 6), see connection ex-
ample page
