Connection Examples

The following sections provide connection examples for the individual connectors of the

device.

A wiring example for the device connection can be found in the

8.1

X6, X7 – Incremental Encoders with TTL

Signals

The connection is implemented according to interface standard EIA-422.

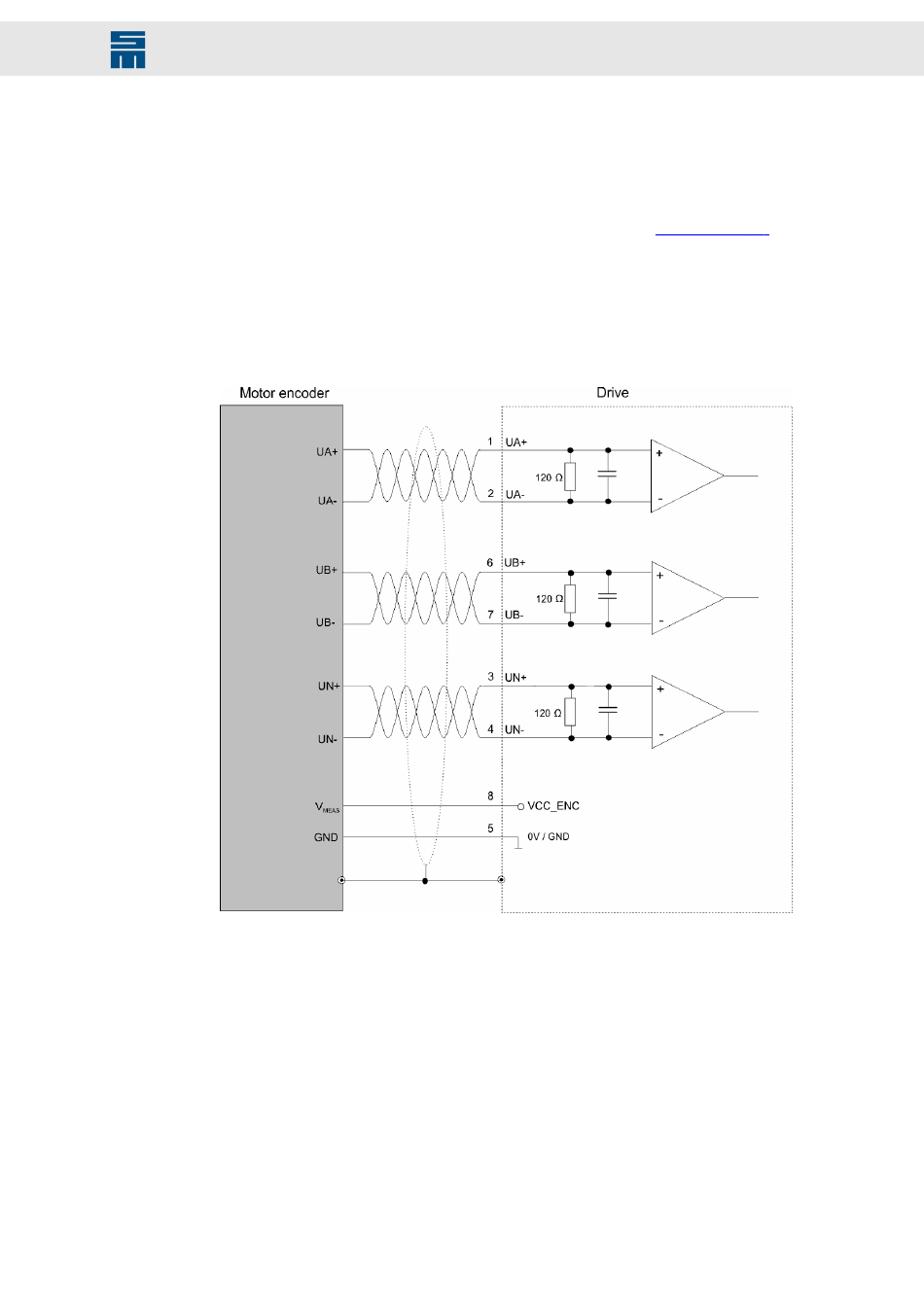

Fig. 8: Incremental Encoder with TTL Signals

Encoder signals: 5 V

Drive System SD2S - Hardware Description 0362x49xx / 0362129xx

Connection Examples

Appendix (p.

99).
