8.6 X17 – Motor Feedback
8.6.1

Resolver

Voltage (VCC) varies depending on the set measuring system
When the connected measuring system is operated under a wrong voltage, it can be
damaged.
→ Check that you have chosen the right measuring system in the software before
connecting.
A shielded cable with 3 twisted pairs must be used. Twist mode: sine/sine, cosine/co-
sine, rotor/rotor; designation of the cable, e.g. LIYCY 3 × 2 × 0.14.
If the thermal motor protection is evaluated, use a shielded cable with 4 twisted pairs of
wires.

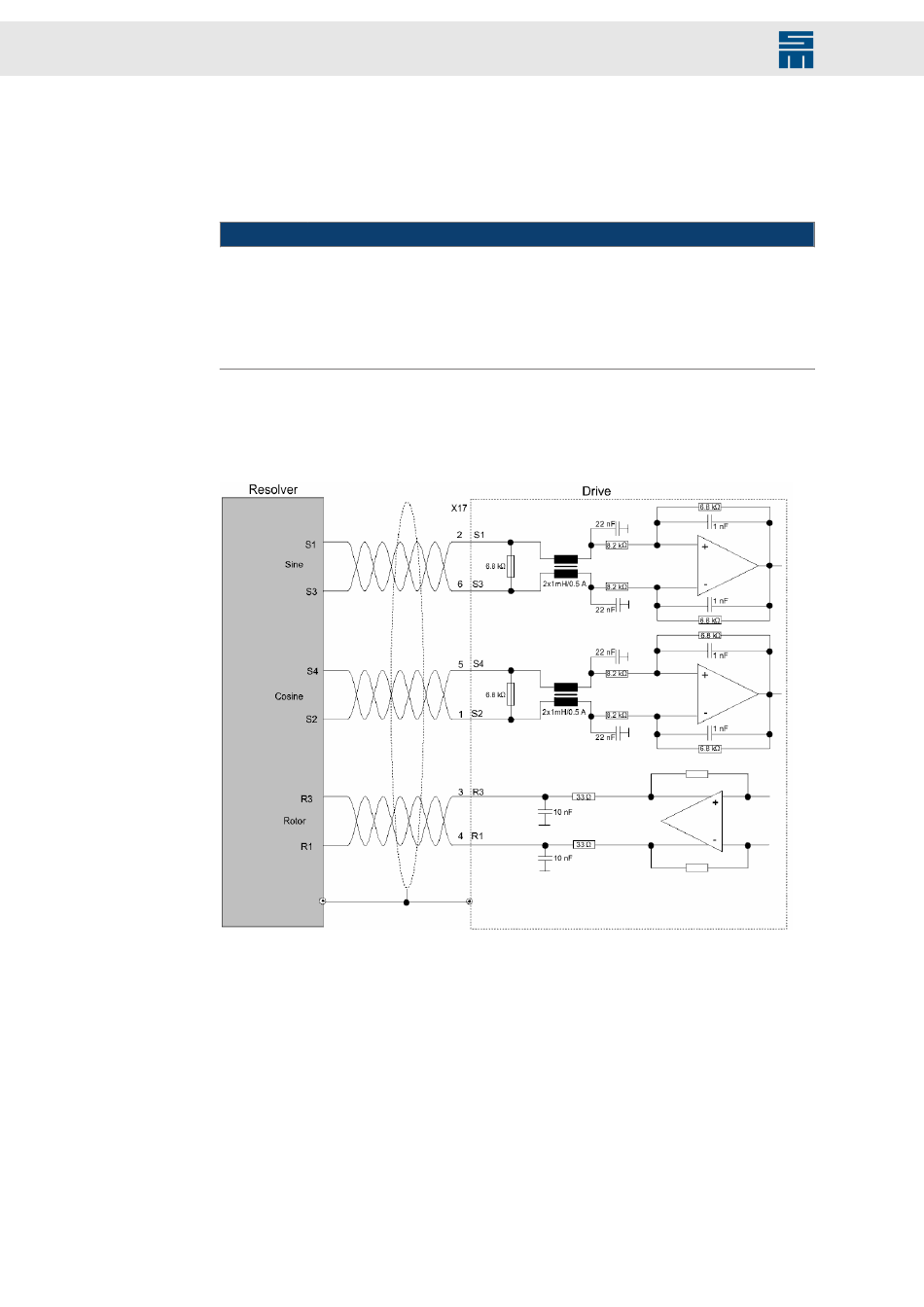

Fig. 19: Resolver
When this meysuring system is parameterized VCC_FB is switched to 5.3 V.
