Connector Pin Assignment
▶
Connection method: spring-cage connection with push-in technology (handling: see
page
Note
Consider that the conductor cross-section to be used for your application depends on
the total load of the power supply unit.

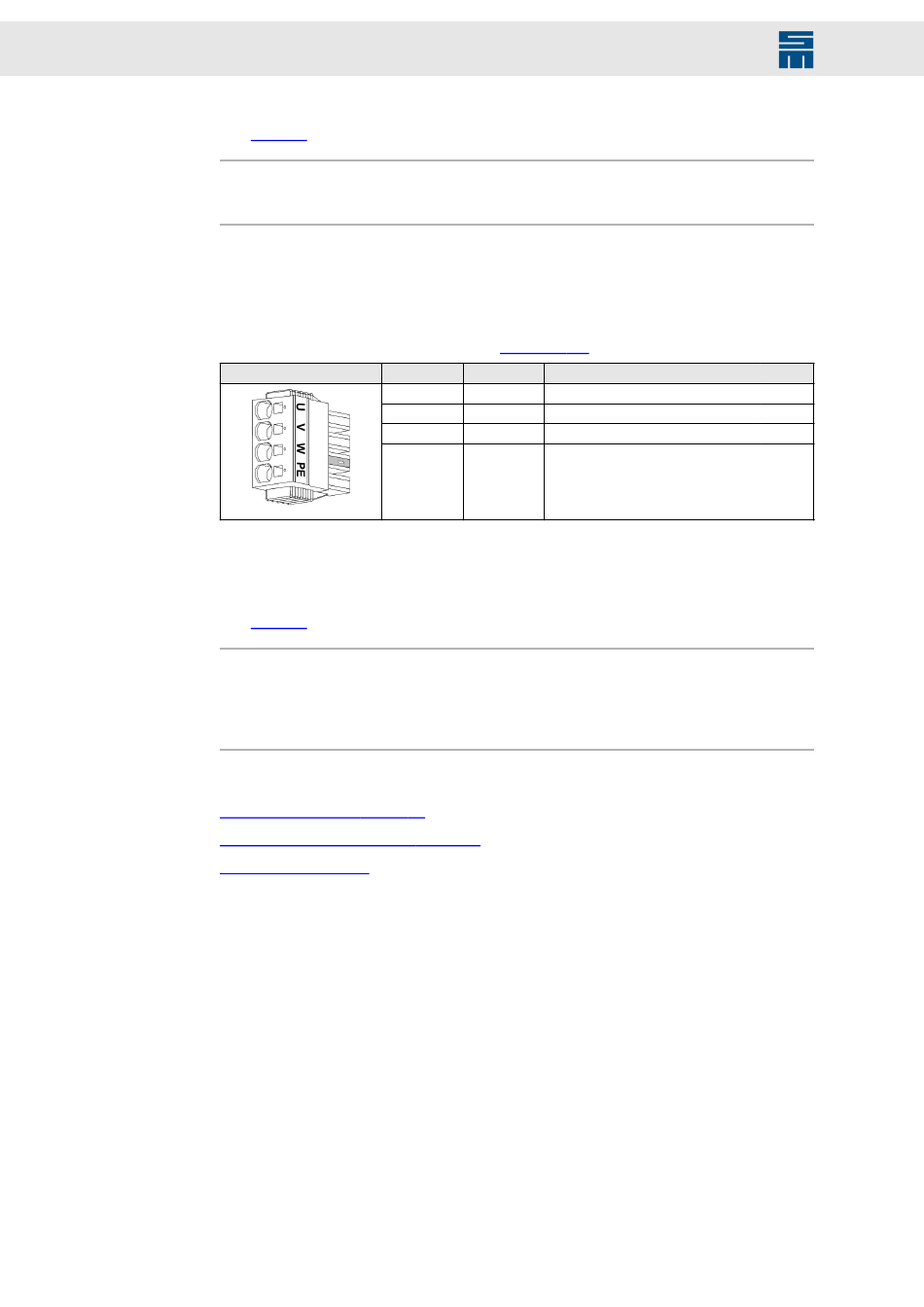

7.14 X45 – Motor Connection
4-pole Power-Combicon connector, suitable for mating connector SPC 5/ 4-STCL-7,62
(Phoenix) with Click & Lock system (see
Mating connector X45
Specification of terminal connections:
▶
Conductor cross-section solid: 2.5 to 10 mm²
▶
Conductor cross-section stranded: 2.5 to 6 mm²
▶
Connection method: spring-cage connection with push-in technology (handling: see
page
Note
If you use a shielded motor cable longer than 5 m, the cable requires an additional in-
terference suppression: The motor cable could be filtered, for example, with 11 windings
through a ferrite core (ferrite core: R 63/38/25, Al = 15150 nH; article No. 13163110).
The maximum permissible length of a shielded motor cable is 25 m.
Related topics
X45 – Motor Phases, page 71
Shielding of the Motor Cable, page 72
Motor Cable, page 84
44
30)
Name
U
V
W
PE
30)
Drive System SD2S - Hardware Description 0362x49xx / 0362129xx
STCL (p. 30))
Coding Meaning
- Motor phase U
- Motor phase V
Coded Motor phase W
- Protective conductor
