Renishaw Biss C Mode (Unidirectional) - SIEB & MEYER SD2S Hardware Description

8.6.12

RENISHAW BiSS C Mode (Unidirectional)

Voltage (VCC) varies depending on the set measuring system
When the connected measuring system is operated under a wrong voltage, it can be
damaged.
→ Check that you have chosen the right measuring system in the software before
connecting.

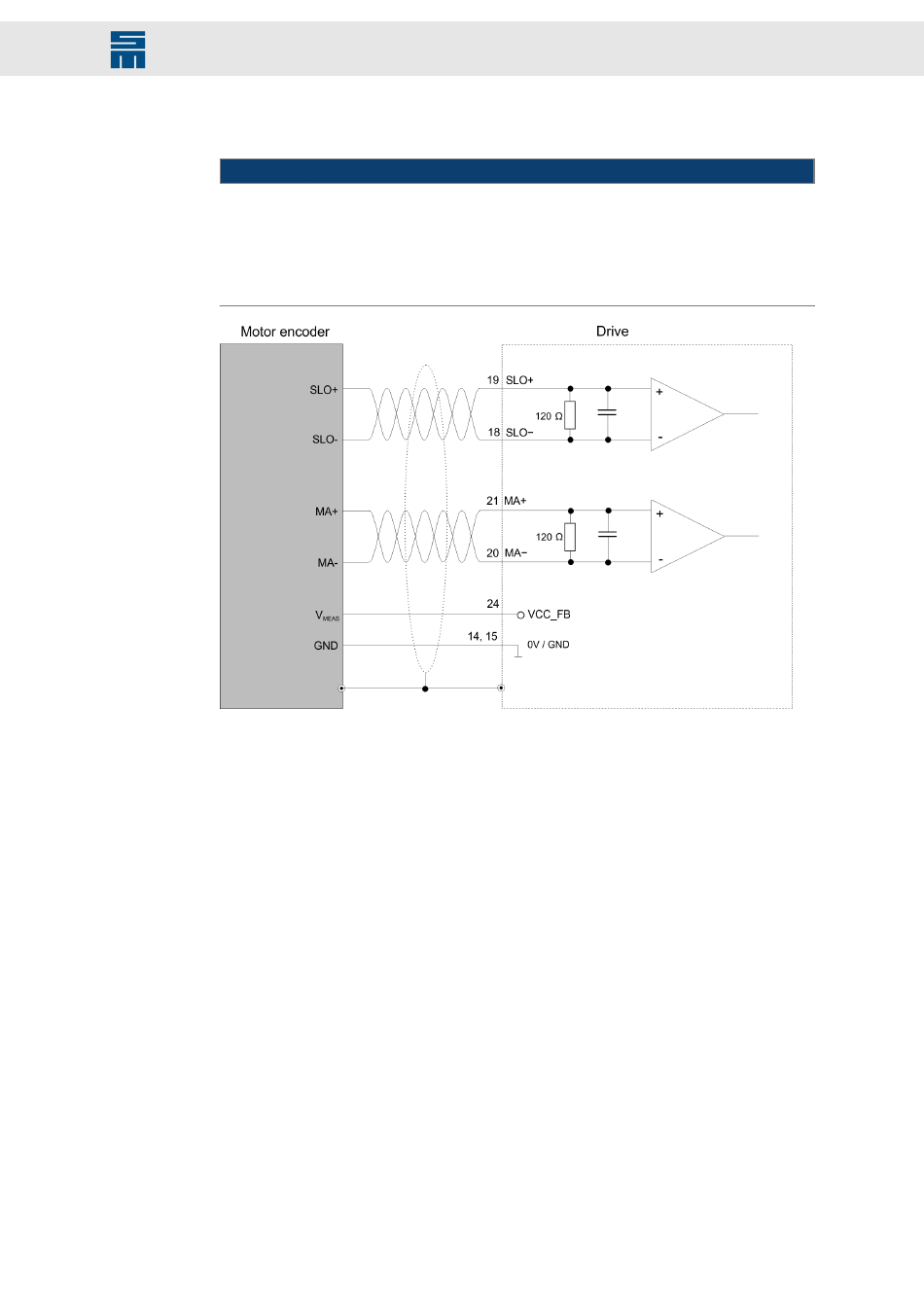

Fig. 30: RENISHAW BiSS C Mode (Unidirectional)
When this meysuring system is parameterized VCC_FB is switched to 5.3 V.
Requirements
▶
device version 4.xxx and higher
▶
firmware f04011v04017 and higher, logic l04004v04019 and higher
▶
drivemaster2 V1.20 Build 75-17.7.2020 and higher
Drive System SD2S - Hardware Description 0362x49xx / 0362129xx
Connection Examples
NOTICE
65
