Note
The addresses of several devices in a system must be different from each other to
ensure that they can be identified by the software.

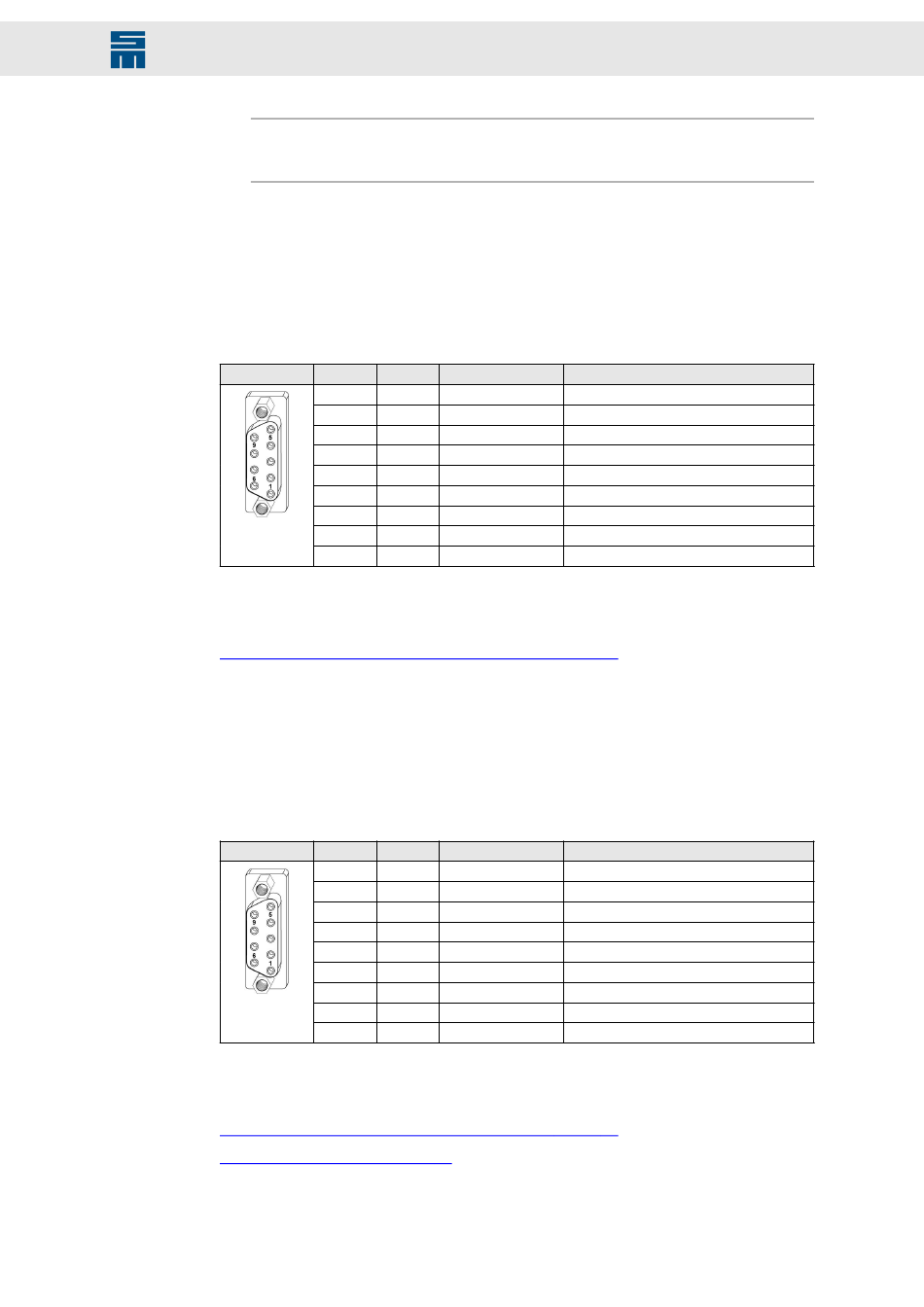

7.3
X6 – Encoder 0
Encoder 0 input, e.g. for length measuring systems
This connector is not integrated in SD2S Light (0362129xx ).
9-pole female D-sub connector
X6
Stud bolt flange: max. tightening torque = 0.7 Nm
Related topics
X6, X7 – Incremental Encoders with TTL Signals, page 47
7.4
X7 – Encoder 1 / Encoder Emulation
Encoder 1 input and encoder emulation output e.g. for depth measuring systems
This connector is not integrated in SD2S Light (0362129xx ).
9-pole female D-sub connector
X7
Stud bolt flange: max. tightening torque = 0.7 Nm
Related topics
X6, X7 – Incremental Encoders with TTL Signals, page 47
X7 – Encoder Emulation, page 48
Drive System SD2S - Hardware Description 0362x49xx / 0362129xx
Pin
I/O
Name
1
I
UA+
2
I
UA−
3
I
UN+
4
I
UN−
5
I/O
GND
6
I
UB+
7
I
UB−
8
O
VCC_ENC
9
I
ERR
Pin
I/O
Name
1
I/O
UA+
2
I/O
UA-
3
I/O
UN+
4
I/O
UN-
5
I/O
GND
6
I/O
UB+
7
I/O
UB-
8
O
VCC_ENC
9
I
ERR
Connector Pin Assignment
Meaning
Track A+
Track A−
Zero pulse+
Zero pulse−
Ground
Track B+
Track B−
5.3 V supply voltage
Measuring system error
Meaning
Track A+
Track A-
Zero pulse+
Zero pulse-
Ground
Track B+
Track B-
5.3 V supply voltage
Measuring system error
