Summary of Contents for SIEB & MEYER 0460123A

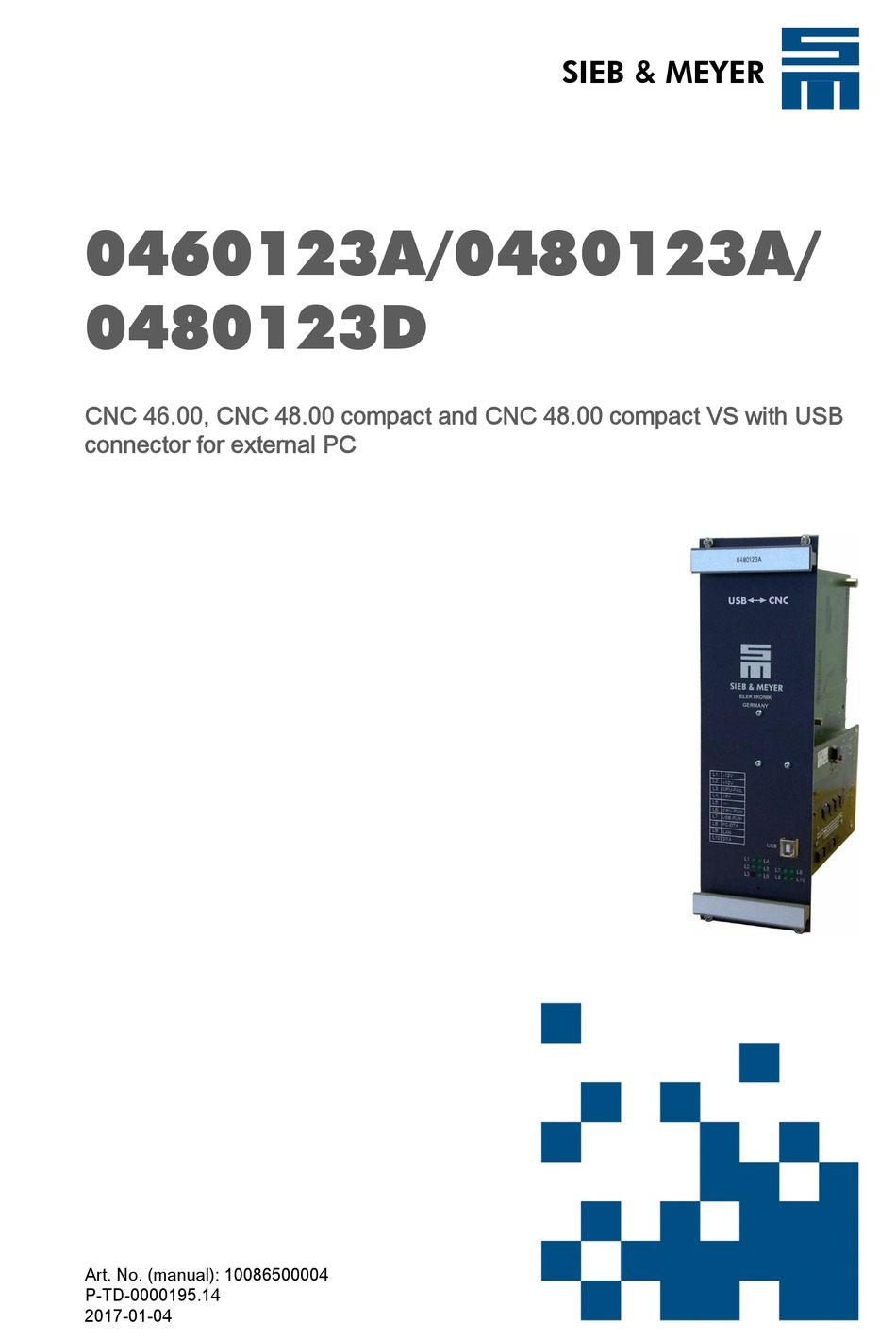

- Page 1 SIEB & MEYER 0460123A/0480123A/ 0480123D CNC 46.00, CNC 48.00 compact and CNC 48.00 compact VS with USB connector for external PC Art. No. (manual): 10086500004 P-TD-0000195.14 2017-01-04...
- Page 2 3975 Port Union Road Min-Sheng N. Road Fairfield, OH 45014 Kwei-Shan Hsiang 333 Tao-Yuan Hsien Phone: +1 513 563 0860 Taiwan Fax: +1 513 563 7576 Phone: +886 3 311 5560 info@sieb-meyerusa.com Fax: +886 3 322 1224 http://www.sieb-meyer.com smasia@ms42.hinet.net http://www.sieb-meyer.com 0460123A/0480123A/0480123D -...
-
Page 3: Table Of Contents
Chapter Overview About this Manual Safety Instructions The CNC Modules With USB Connection 0480123A and 0480123D 0460123A Software and Driver Installation 0460123A/0480123A/0480123D -... - Page 4 Chapter Overview 0460123A/0480123A/0480123D -...
- Page 5 Function ....................Connection Principle ................. 0480123A and 0480123D ..........View ......................4.1.1 Description of the LEDs ..................0460123A ................ View ......................5.1.1 Description of the LEDs ..................Software and Driver Installation ........Supported Operating Systems ..................... Installation of the PC Software and Machine Software ............
- Page 6 Content 0460123A/0480123A/0480123D -...
-
Page 7: About This Manual
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or property damage. Indicates a hazardous situation which, if not avoided, may result in property damage. Risk symbols Risk symbol Description General risk High voltage Electrostatically sensitive devices 0460123A/0480123A/0480123D -... -
Page 8: Technical Symbols
Furthermore, the manual includes symbols for the description of technical contents. Symbol Description LED indication:LED on LED indication:LED off LED indication:LED flashes Illustration of General Notices General notices are illustrated by the following symbols: Symbol Description Hint with additional, further information Tip with suggestions and useful information 0460123A/0480123A/0480123D -... -
Page 9: Safety Instructions
All Information and advice attached to the device, such as safety instructions or danger warnings and technical data (type plate) are: ▶ not to be removed ▶ not to be damaged ▶ to be kept readably (no covers, no paint over or the like) 0460123A/0480123A/0480123D -... -
Page 10: Appropriate Use
Product Standard DIN EN 61800-3 for PDS". Refer to the product documentation of your device to find out whether or not your device is equipped with a line filter. For detailed information on line filters refer to the manual "EMC Guidelines". 0460123A/0480123A/0480123D -... -
Page 11: Transport And Storage
Tab. 1: Vibration limits of the system The above data are related to horizontal movements by the servo amplifiers of the series mounted in a 72 WU chassis. Depending on the device type and size of the chassis smaller values are possible. 0460123A/0480123A/0480123D -... -
Page 12: Electrical Connection
Connection to earth must be realized according to the instructions in the product documentation of your device. The electrical installation must be carried out according to the relevant electrical codes (e.g. appropriate wire gauges, fuse protection and connections of ground conductors must be considered). 0460123A/0480123A/0480123D -... -
Page 13: Operation
Risk of serious injuries due to moving machine parts During the operation of an installation with open doors or removed covers, persons may seriously be injured by moving machine parts. Keep the doors closed during the operation and do not remove covers. 0460123A/0480123A/0480123D -... -
Page 14: Maintenance
▶ when the device has been employed although the protection equipment was defective ▶ when the maximum permissible input voltage has been exceeded ▶ through improper operation 0460123A/0480123A/0480123D -... -
Page 15: Standards And Regulations
Low-Voltage Directive 2014/35/EU ▶ Machinery Directive 2006/42/EC ▶ EMC Directive 2014/30/EU ▶ DIN EN 61800 If the mechanics or the electronics of the device are modified, the conformity with the EC/EEC directives and thus the label will expire. 0460123A/0480123A/0480123D -... - Page 16 Safety Instructions 0460123A/0480123A/0480123D -...
-
Page 17: The Cnc Modules With Usb Connection
The CNC Modules With USB Connection The CNC Modules With USB Connection This manual describes the CNC modules 0460123A, 0480123A and 0480123D with integrated USB↔ISA adapter. These CNC modules allow connecting a standard PC compact , CNC 48.00 compact VS and CNC and replace the CNC modules CNC 48.00... -
Page 18: Dongle
CNC 48.00 compact VS to a standard PC. This requires that the PC is equipped with a USB interface. The CNC module 0480123x / 0460123A is mounted into the CNC chassis to the posi‐ tion where the IPC/CNC module was mounted before. -
Page 19: Connection Principle
VS (→ CNC module 0480123D) ▶ CNC 48.00 ▶ CNC 46.00 (→ CNC module 0460123A) Connection Principle The following figure shows the connection principle of aCNC module with USB connec‐ tion to a standard PC. Fig. 1: Connection principle of a CNC module with installed USB↔ISA adapter... - Page 20 The CNC Modules With USB Connection 0460123A/0480123A/0480123D -...
-

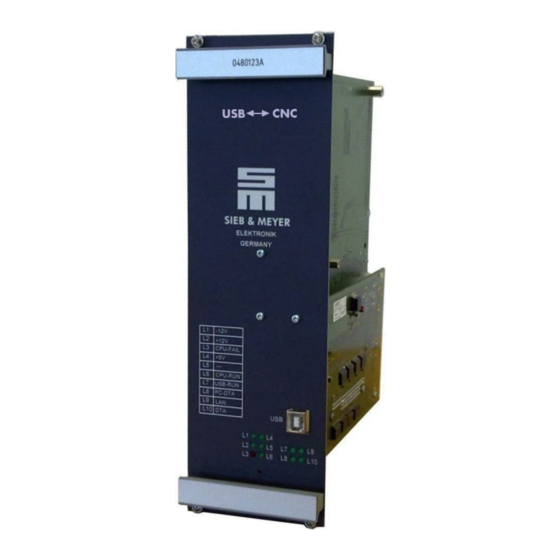

Page 21: 0480123A And 0480123D
= module variant compact ▶ 0480123A → CNC 48.00 ▶ 0480123D → CNC 48.00 compact VS LED indications status indications USB connection (type B, square) Connection to the CNC USB connection (type A, rectangular) Connection to the PC 0460123A/0480123A/0480123D -... -
Page 22: Description Of The Leds
Data transmission via USB (480 Mbit/s) Green USB-RUN Data transmission via USB (12 Mbit/s) Green PC-DATA Data transmission to external PC Green LAN connection to the CNC available Green Data transmission when LAN connection to the CNC is available 0460123A/0480123A/0480123D -... -
Page 23: 0460123A
0460123A 0460123A This chapter describes the view and the LEDs of the retrofit CNC module 0460123A with USB connector. View Fig. 3: Front view of the CNC module 0460123A 0460123A Number of the CNC module with USB connector LED indications... -
Page 24: Description Of The Leds
Data transmission via USB (480 Mbit/s) Green USB-RUN Data transmission via USB (12 Mbit/s) Green PC-DATA Data transmission to external PC Green LAN connection to the CNC available Green Data transmission when LAN connection to the CNC is available 0460123A/0480123A/0480123D -... -
Page 25: Software And Driver Installation
Software and Driver Installation Software and Driver Installation Before installation you must deactivate the virus scanner temporarily. To operate the of the CNC modules 0460123A, 0480123A and 0480123D you must install software and a driver: ▶ PC software with USB driver ▶... -
Page 26: Installation Of The Pc Software And Machine Software
Together with the machine software SM/EX-48-19-28 recommends using the USB↔ISA adapter together with CPU cards of min. 1 MB RAM will be sufficient (48.01.0012A). CPU Cards and Available Z-axes Consider the information on CPU cards and available Z-axes as shown in the following tables. 0460123A/0480123A/0480123D -... -
Page 27: Installation Of The Usb Driver
Activate the option "No, I will restart my computer later". The current version of the PC software for the operation of the CNC modules 0460123A, 0480123A and 0480123D will be installed on the PC. Installation of the USB Driver Backup files for system recovery To recover the original state of your system after driver installation (user-specific settings, passwords etc.) you must create backup files of the following files before you... - Page 28 Windows opens a wizard for the installation of the USB driver. To install the driver, proceed as shown in the following figures. Fig. 4: Step 1: Installation of the USB Driver Activate the option “No, not this time” and click on “Next”. 0460123A/0480123A/0480123D -...
- Page 29 Start the installation of the USB driver again, all necessary modifications in the “siebmeye.ini” file will be done by the software. ▶ To recover the original system, you can overwrite the other directories and files with the backup files created before. The device is ready for operation. 0460123A/0480123A/0480123D -...
- Page 30 Software and Driver Installation 0460123A/0480123A/0480123D -...
