Hall Sensor 5.3 V - SIEB & MEYER SD2S Hardware Description

Connection Examples
8.6.7

Hall Sensor 5.3 V

Voltage (VCC) varies depending on the set measuring system
When the connected measuring system is operated under a wrong voltage, it can be
damaged.
→ Check that you have chosen the right measuring system in the software before
connecting.

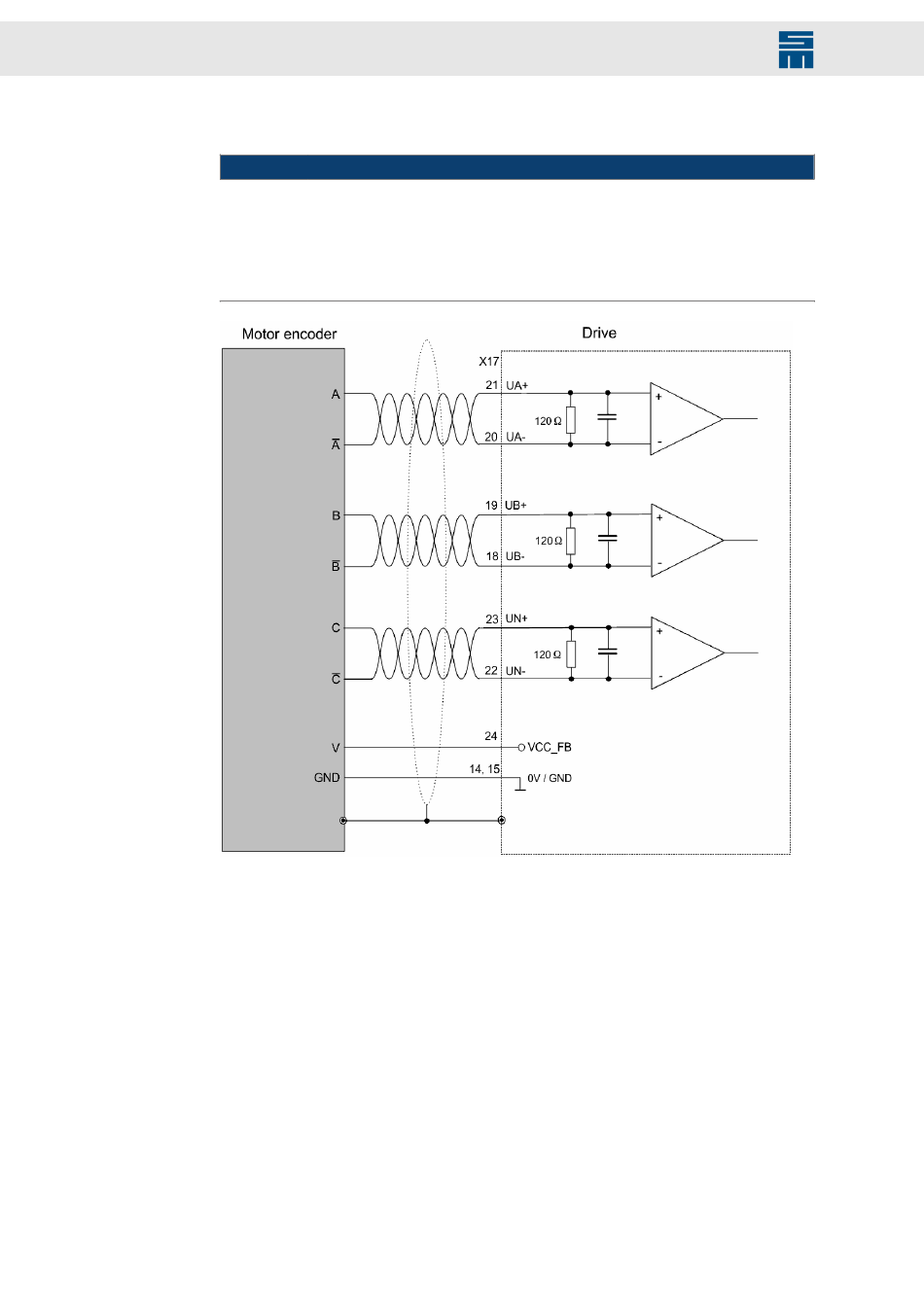

Fig. 25: Hall sensor 5.3 V
When this meysuring system is parameterized VCC_FB is switched to 5.3 V.
