Chapter 2: Jumpers and Connectors

Connector Pin Definitions

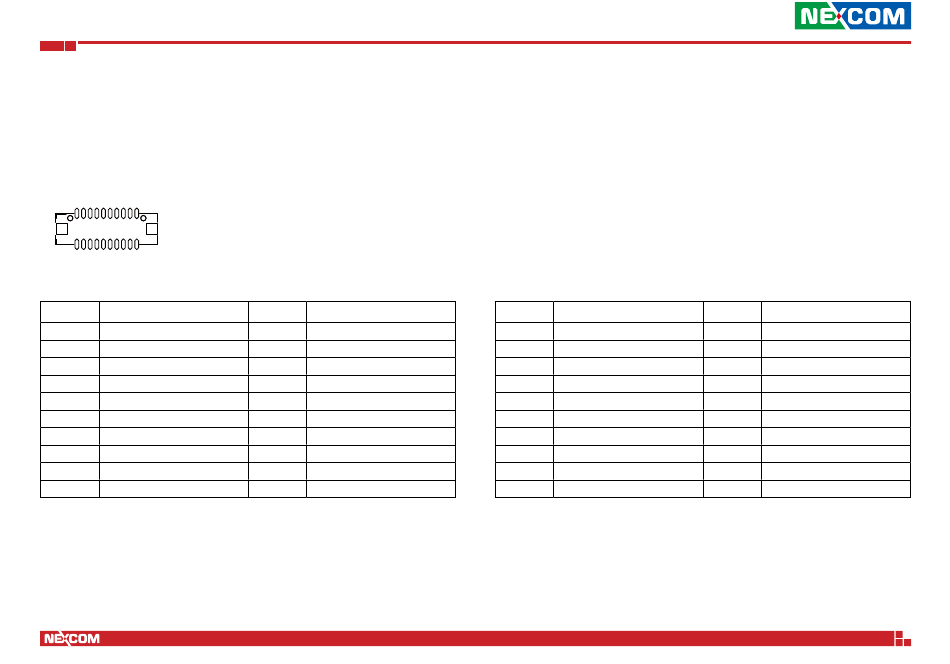

PoE Power Connector (only 54V supply)

Connector type: 2 x 10 = 20 Pin, 1.25mm
Connector location: CN2, CN5, CN6, CN13
1 19
2 20
CN2 (For Marvell 2.5GBE Phy1)
Pin Definition
1 N.C.
2 N.C.
3 N.C.
4 N.C.
5 N.C.
6 N.C.
7 N.C.
8 N.C.
9 V_3P3V_POE_MOD2
10 V_3P3V_POE_MOD2
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
11 POE2_ADDR0
12 N.C.
13 POE2_ADDR1
14 N.C.
15 POE2_ADDR2
16 N.C.
17 N.C.
18 N.C.
19 GND_POE2
20 N.C.
CN5 (For Marvell 2.5GBE Phy2)
Pin Definition
1 N.C.
2 N.C.
3 N.C.
4 N.C.
5 N.C.
6 N.C.
7 N.C.
8 N.C.
9 V_3P3V_POE_MOD3
10 V_3P3V_POE_MOD3
35
Pin Definition
11 POE3_ADDR0
12 N.C.
13 POE3_ADDR1
14 N.C.
15 POE3_ADDR2
16 N.C.
17 N.C.
18 N.C.
19 GND_POE3
20 N.C.
